rohc_decomp_rfc3095_ctxt Struct Reference

The generic decompression context for RFC3095-based profiles. More...

#include <rohc_decomp_rfc3095.h>

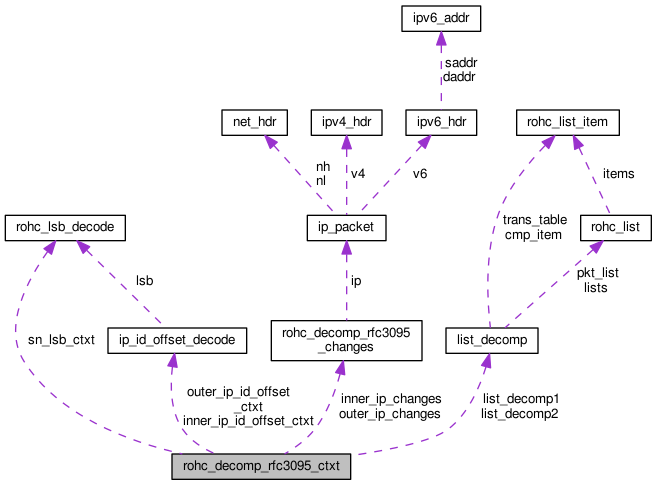

Collaboration diagram for rohc_decomp_rfc3095_ctxt:
Collaboration graph
[legend]

Data Fields

struct rohc_decomp_rfc3095_changesouter_ip_changes
 Information about the outer IP header. More...

struct rohc_decomp_rfc3095_changesinner_ip_changes
 Information about the inner IP header. More...

rohc_lsb_shift_t sn_lsb_p

struct rohc_lsb_decodesn_lsb_ctxt
 The LSB decoding context for the Sequence Number (SN) More...

struct ip_id_offset_decodeouter_ip_id_offset_ctxt
 The IP-ID of the outer IP header. More...

struct ip_id_offset_decodeinner_ip_id_offset_ctxt
 The IP-ID of the inner IP header. More...

struct list_decomp list_decomp1
 The list decompressor of the outer IP header. More...

struct list_decomp list_decomp2
 The list decompressor of the inner IP header. More...

int multiple_ip
 Whether the decompressed packet contains a 2nd IP header. More...

unsigned short next_header_proto
 The IP protocol ID of the protocol the context is able to decompress. More...

unsigned int next_header_len
 The length of the next header. More...

int(* parse_static_next_hdr )(const struct rohc_decomp_ctxt *const context, const uint8_t *packet, size_t length, struct rohc_extr_bits *const bits)
 The handler used to parse the static part of the next header in the ROHC packet. More...

int(* parse_dyn_next_hdr )(const struct rohc_decomp_ctxt *const context, const uint8_t *packet, const size_t length, struct rohc_extr_bits *const bits)
 The handler used to parse the dynamic part of the next header in the ROHC packet. More...

int(* parse_ext3 )(const struct rohc_decomp_ctxt *const context, const uint8_t *const rohc_data, const size_t rohc_data_len, const rohc_packet_t packet_type, struct rohc_extr_bits *const bits)
 The handler used to parse the extension 3 of the UO* ROHC packet. More...

int(* parse_uo_remainder )(const struct rohc_decomp_ctxt *const context, const uint8_t *packet, unsigned int length, struct rohc_extr_bits *const bits)
 The handler used to parse the tail of the UO* ROHC packet. More...

bool(* decode_values_from_bits )(const struct rohc_decomp_ctxt *context, const struct rohc_extr_bits *const bits, struct rohc_decoded_values *const decoded)

int(* build_next_header )(const struct rohc_decomp_ctxt *const context, const struct rohc_decoded_values *const decoded, uint8_t *const dest, const unsigned int payload_len)

uint8_t(* compute_crc_static )(const uint8_t *const ip, const uint8_t *const ip2, const uint8_t *const next_header, const rohc_crc_type_t crc_type, const uint8_t init_val, const uint8_t *const crc_table)
 The handler used to compute the CRC-STATIC value. More...

uint8_t(* compute_crc_dynamic )(const uint8_t *const ip, const uint8_t *const ip2, const uint8_t *const next_header, const rohc_crc_type_t crc_type, const uint8_t init_val, const uint8_t *const crc_table)
 The handler used to compute the CRC-DYNAMIC value. More...

void(* update_context )(struct rohc_decomp_ctxt *const context, const struct rohc_decoded_values *const decoded)

void * specific
 Profile-specific data. More...


Detailed Description

The generic decompression context for RFC3095-based profiles.

The object defines the generic context that manages IP(/nextheader) and IP/IP(/nextheader) packets. nextheader is managed by the profile-specific part of the context.

Field Documentation

int(* rohc_decomp_rfc3095_ctxt::build_next_header) (const struct rohc_decomp_ctxt *const context, const struct rohc_decoded_values *const decoded, uint8_t *const dest, const unsigned int payload_len)

The handler used to build the uncompressed next header

uint8_t(* rohc_decomp_rfc3095_ctxt::compute_crc_dynamic) (const uint8_t *const ip, const uint8_t *const ip2, const uint8_t *const next_header, const rohc_crc_type_t crc_type, const uint8_t init_val, const uint8_t *const crc_table)

The handler used to compute the CRC-DYNAMIC value.

uint8_t(* rohc_decomp_rfc3095_ctxt::compute_crc_static) (const uint8_t *const ip, const uint8_t *const ip2, const uint8_t *const next_header, const rohc_crc_type_t crc_type, const uint8_t init_val, const uint8_t *const crc_table)

The handler used to compute the CRC-STATIC value.

bool(* rohc_decomp_rfc3095_ctxt::decode_values_from_bits) (const struct rohc_decomp_ctxt *context, const struct rohc_extr_bits *const bits, struct rohc_decoded_values *const decoded)

The handler used to decode extracted for next header

struct rohc_decomp_rfc3095_changes* rohc_decomp_rfc3095_ctxt::inner_ip_changes

Information about the inner IP header.

struct ip_id_offset_decode* rohc_decomp_rfc3095_ctxt::inner_ip_id_offset_ctxt

The IP-ID of the inner IP header.

struct list_decomp rohc_decomp_rfc3095_ctxt::list_decomp1

The list decompressor of the outer IP header.

struct list_decomp rohc_decomp_rfc3095_ctxt::list_decomp2

The list decompressor of the inner IP header.

int rohc_decomp_rfc3095_ctxt::multiple_ip

Whether the decompressed packet contains a 2nd IP header.

unsigned int rohc_decomp_rfc3095_ctxt::next_header_len

The length of the next header.

unsigned short rohc_decomp_rfc3095_ctxt::next_header_proto

The IP protocol ID of the protocol the context is able to decompress.

struct rohc_decomp_rfc3095_changes* rohc_decomp_rfc3095_ctxt::outer_ip_changes

Information about the outer IP header.

struct ip_id_offset_decode* rohc_decomp_rfc3095_ctxt::outer_ip_id_offset_ctxt

The IP-ID of the outer IP header.

int(* rohc_decomp_rfc3095_ctxt::parse_dyn_next_hdr) (const struct rohc_decomp_ctxt *const context, const uint8_t *packet, const size_t length, struct rohc_extr_bits *const bits)

The handler used to parse the dynamic part of the next header in the ROHC packet.

int(* rohc_decomp_rfc3095_ctxt::parse_ext3) (const struct rohc_decomp_ctxt *const context, const uint8_t *const rohc_data, const size_t rohc_data_len, const rohc_packet_t packet_type, struct rohc_extr_bits *const bits)

The handler used to parse the extension 3 of the UO* ROHC packet.

Parameters
contextThe decompression context
rohc_dataThe ROHC data to parse
rohc_data_lenThe length of the ROHC data to parse
packet_typeThe type of ROHC packet to parse
bitsIN: the bits already found in base header OUT: the bits found in the extension header 3
Returns
The data length read from the ROHC packet, -2 in case packet must be reparsed, -1 in case of error
int(* rohc_decomp_rfc3095_ctxt::parse_static_next_hdr) (const struct rohc_decomp_ctxt *const context, const uint8_t *packet, size_t length, struct rohc_extr_bits *const bits)

The handler used to parse the static part of the next header in the ROHC packet.

int(* rohc_decomp_rfc3095_ctxt::parse_uo_remainder) (const struct rohc_decomp_ctxt *const context, const uint8_t *packet, unsigned int length, struct rohc_extr_bits *const bits)

The handler used to parse the tail of the UO* ROHC packet.

struct rohc_lsb_decode* rohc_decomp_rfc3095_ctxt::sn_lsb_ctxt

The LSB decoding context for the Sequence Number (SN)

rohc_lsb_shift_t rohc_decomp_rfc3095_ctxt::sn_lsb_p

The LSB shift parameter for the Sequence Number (SN)

void* rohc_decomp_rfc3095_ctxt::specific

Profile-specific data.

void(* rohc_decomp_rfc3095_ctxt::update_context) (struct rohc_decomp_ctxt *const context, const struct rohc_decoded_values *const decoded)

The handler used to update context with decoded next header fields


The documentation for this struct was generated from the following file:
