ROHC compression context for the uncompressed profile. More...

#include "rohc_comp_internals.h"
#include "rohc_traces.h"
#include "rohc_traces_internal.h"
#include "rohc_debug.h"
#include "schemes/cid.h"
#include "crc.h"
#include <assert.h>

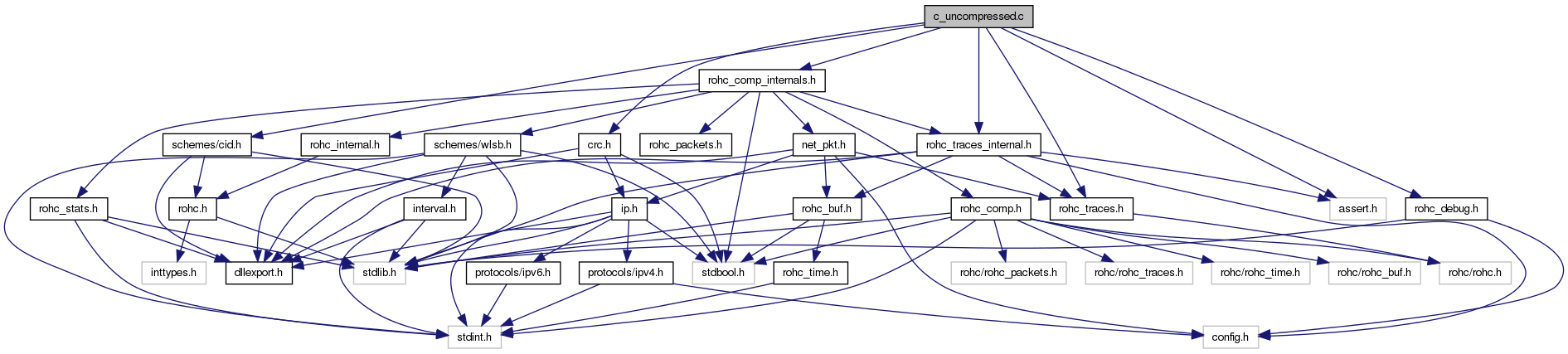

Include dependency graph for c_uncompressed.c:

Data Structures
struct	sc_uncompressed_context
	The Uncompressed context. More...
Functions
static bool	c_uncompressed_create (struct rohc_comp_ctxt const context, const struct net_pkt const packet)
	Create a new Uncompressed context and initialize it thanks to the given IP packet.
static void	c_uncompressed_destroy (struct rohc_comp_ctxt *const context)
	Destroy the Uncompressed context.
static bool	c_uncompressed_check_profile (const struct rohc_comp const comp, const struct net_pkt const packet)
	Check if the given packet corresponds to the Uncompressed profile.
bool	c_uncompressed_use_udp_port (const struct rohc_comp_ctxt *const context, const unsigned int port)
	Whether the profile uses the given UDP port.
static bool	c_uncompressed_check_context (const struct rohc_comp_ctxt const context, const struct net_pkt const packet)
	Check if an IP packet belongs to the Uncompressed context.
static int	c_uncompressed_encode (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, unsigned char const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type, size_t *const payload_offset)
	Encode an IP packet according to a pattern decided by several different factors.
static int	uncompressed_code_packet (const struct rohc_comp_ctxt context, const struct net_pkt const uncomp_pkt, unsigned char const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type, size_t *const payload_offset)
	Build the ROHC packet to send.
static int	uncompressed_code_IR_packet (const struct rohc_comp_ctxt context, const struct net_pkt const uncomp_pkt, unsigned char const rohc_pkt, const size_t rohc_pkt_max_len, size_t const payload_offset)
	Build the IR packet.
static int	uncompressed_code_normal_packet (const struct rohc_comp_ctxt context, const struct net_pkt const uncomp_pkt, unsigned char const rohc_pkt, const size_t rohc_pkt_max_len, size_t const payload_offset)
	Build the Normal packet.
static bool	c_uncompressed_reinit_context (struct rohc_comp_ctxt *const context)
	Re-initialize a given context.
static bool	uncomp_feedback (struct rohc_comp_ctxt const context, const struct c_feedback const feedback)
	Update the profile when feedback is received.
static bool	uncomp_feedback_2 (struct rohc_comp_ctxt const context, const struct c_feedback const feedback)
	Update the profile when a FEEDBACK-2 is received.
static void	uncompressed_decide_state (struct rohc_comp_ctxt *const context)
	Decide the state that should be used for the next packet.
static void	uncompressed_periodic_down_transition (struct rohc_comp_ctxt *const context)
	Periodically change the context state after a certain number of packets.
static void	uncompressed_change_mode (struct rohc_comp_ctxt *const context, const rohc_mode_t new_mode)
	Change the mode of the context.
static void	uncompressed_change_state (struct rohc_comp_ctxt *const context, const rohc_comp_state_t new_state)
	Change the state of the context.
Variables
struct rohc_comp_profile	c_uncompressed_profile
	Define the compression part of the Uncompressed profile as described in the RFC 3095.

Detailed Description

ROHC compression context for the uncompressed profile.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; Didier Barvaux <didier@barvaux.org>

Function Documentation

static bool c_uncompressed_check_context	(	const struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet
	)		`[static]`

Check if an IP packet belongs to the Uncompressed context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
packet	The packet to check

Returns:: Always return true to tell that the packet belongs to the context

static bool c_uncompressed_check_profile	(	const struct rohc_comp *const	comp,
		const struct net_pkt *const	packet
	)		`[static]`

Check if the given packet corresponds to the Uncompressed profile.

There are no condition. If this function is called, the packet always matches the Uncompressed profile.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

comp	The ROHC compressor
packet	The packet to check

Returns:

Whether the packet corresponds to the profile:

true if the packet corresponds to the profile,
false if the packet does not correspond to the profile

static bool c_uncompressed_create	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet
	)		`[static]`

Create a new Uncompressed context and initialize it thanks to the given IP packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
packet	The packet given to initialize the new context

Returns:: true if successful, false otherwise

static void c_uncompressed_destroy ( struct rohc_comp_ctxt *const context ) [static]

Destroy the Uncompressed context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context The compression context

static int c_uncompressed_encode	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		unsigned char *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type,
		size_t *const	payload_offset
	)		`[static]`

Encode an IP packet according to a pattern decided by several different factors.

1. Decide state
2. Code packet

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
payload_offset	OUT: The offset for the payload in the IP packet

Returns:: The length of the ROHC packet if successful, -1 otherwise

static bool c_uncompressed_reinit_context ( struct rohc_comp_ctxt *const context ) [static]

Re-initialize a given context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context The compression context

Returns:: true in case of success, false otherwise

bool c_uncompressed_use_udp_port	(	const struct rohc_comp_ctxt *const	context,
		const unsigned int	port
	)

Whether the profile uses the given UDP port.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
port	The port number to check

Returns:: Always return false because the Uncompressed profile does not use UDP port

static bool uncomp_feedback	(	struct rohc_comp_ctxt *const	context,
		const struct c_feedback *const	feedback
	)		`[static]`

Update the profile when feedback is received.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
feedback	The feedback information

Returns:: true if the feedback was successfully handled, false if the feedback could not be taken into account

static bool uncomp_feedback_2	(	struct rohc_comp_ctxt *const	context,
		const struct c_feedback *const	feedback
	)		`[static]`

Update the profile when a FEEDBACK-2 is received.

Parameters:

context	The compression context
feedback	The feedback information

Returns:: true if the feedback was successfully handled, false if the feedback could not be taken into account

static void uncompressed_change_mode	(	struct rohc_comp_ctxt *const	context,
		const rohc_mode_t	new_mode
	)		`[static]`

Change the mode of the context.

Parameters:

context	The compression context
new_mode	The new mode the context must enter in

static void uncompressed_change_state	(	struct rohc_comp_ctxt *const	context,
		const rohc_comp_state_t	new_state
	)		`[static]`

Change the state of the context.

Parameters:

context	The compression context
new_state	The new state the context must enter in

static int uncompressed_code_IR_packet	(	const struct rohc_comp_ctxt *	context,
		const struct net_pkt *const	uncomp_pkt,
		unsigned char *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		size_t *const	payload_offset
	)		`[static]`

Build the IR packet.


 IR packet (5.10.1)

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1 :         Add-CID octet         : if for small CIDs and (CID != 0)
   +---+---+---+---+---+---+---+---+
 2 | 1   1   1   1   1   1   0 |res|
   +---+---+---+---+---+---+---+---+
   :                               :
 3 /    0-2 octets of CID info     / 1-2 octets if for large CIDs
   :                               :
   +---+---+---+---+---+---+---+---+
 4 |          Profile = 0          | 1 octet
   +---+---+---+---+---+---+---+---+
 5 |              CRC              | 1 octet
   +---+---+---+---+---+---+---+---+
   :                               : (optional)
 6 /           IP packet           / variable length
   :                               :
    --- --- --- --- --- --- --- ---

Part 6 is not managed by this function.

Parameters:

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
payload_offset	OUT: the offset of the payload in the buffer

Returns:: The length of the ROHC packet if successful, -1 otherwise

static int uncompressed_code_normal_packet	(	const struct rohc_comp_ctxt *	context,
		const struct net_pkt *const	uncomp_pkt,
		unsigned char *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		size_t *const	payload_offset
	)		`[static]`

Build the Normal packet.


 Normal packet (5.10.2)

     0   1   2   3   4   5   6   7
    --- --- --- --- --- --- --- ---
 1 :         Add-CID octet         : if for small CIDs and (CID != 0)
   +---+---+---+---+---+---+---+---+
 2 |   first octet of IP packet    |
   +---+---+---+---+---+---+---+---+
   :                               :
 3 /    0-2 octets of CID info     / 1-2 octets if for large CIDs
   :                               :
   +---+---+---+---+---+---+---+---+
   |                               |
 4 /      rest of IP packet        / variable length
   |                               |
   +---+---+---+---+---+---+---+---+

Part 4 is not managed by this function.

Parameters:

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
payload_offset	OUT: the offset of the payload in the buffer

Returns:: The length of the ROHC packet if successful, -1 otherwise

static int uncompressed_code_packet	(	const struct rohc_comp_ctxt *	context,
		const struct net_pkt *const	uncomp_pkt,
		unsigned char *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type,
		size_t *const	payload_offset
	)		`[static]`

Build the ROHC packet to send.

Parameters:

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
payload_offset	OUT: the offset of the payload in the buffer

Returns:: The length of the ROHC packet if successful, -1 otherwise

static void uncompressed_decide_state ( struct rohc_comp_ctxt *const context ) [static]

Decide the state that should be used for the next packet.

Parameters:

context The compression context

static void uncompressed_periodic_down_transition ( struct rohc_comp_ctxt *const context ) [static]

Periodically change the context state after a certain number of packets.

Parameters:

context The compression context

Variable Documentation

struct rohc_comp_profile c_uncompressed_profile

Initial value:

{
        .id             = ROHC_PROFILE_UNCOMPRESSED,
        .protocol       = 0,
        .create         = c_uncompressed_create,
        .destroy        = c_uncompressed_destroy,
        .check_profile  = c_uncompressed_check_profile,
        .check_context  = c_uncompressed_check_context,
        .encode         = c_uncompressed_encode,
        .reinit_context = c_uncompressed_reinit_context,
        .feedback       = uncomp_feedback,
        .use_udp_port   = c_uncompressed_use_udp_port,
}

Define the compression part of the Uncompressed profile as described in the RFC 3095.
