Window-based Least Significant Bits (W-LSB) encoding. More...

#include "interval.h"
#include "dllexport.h"
#include <stdlib.h>
#include <stdint.h>
#include <stdbool.h>

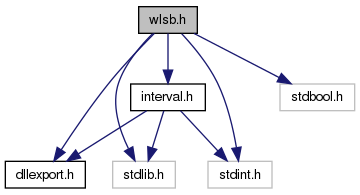

Include dependency graph for comp/schemes/wlsb.h:

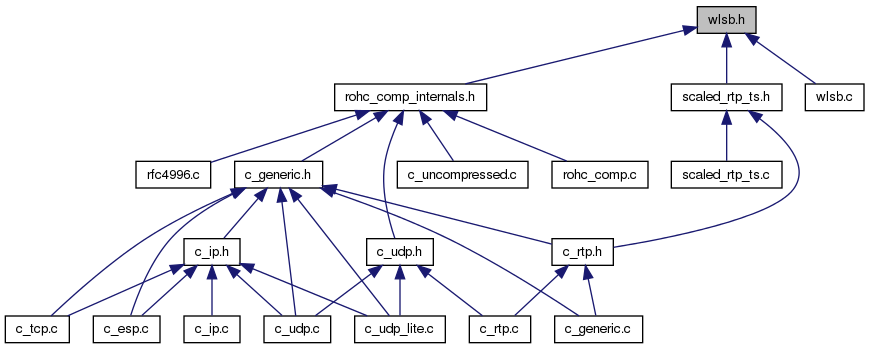

This graph shows which files directly or indirectly include this file:

Functions
struct c_wlsb *ROHC_EXPORT	c_create_wlsb (const size_t bits, const size_t window_width, const rohc_lsb_shift_t p)
	Create a new Window-based Least Significant Bits (W-LSB) encoding object.
void ROHC_EXPORT	c_destroy_wlsb (struct c_wlsb *s)
	Destroy a Window-based LSB (W-LSB) encoding object.
void ROHC_EXPORT	c_add_wlsb (struct c_wlsb *const wlsb, const uint32_t sn, const uint32_t value)
	Add a value into a W-LSB encoding object.
bool ROHC_EXPORT	wlsb_get_k_16bits (const struct c_wlsb const wlsb, const uint16_t value, size_t const bits_nr)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.
bool ROHC_EXPORT	wlsb_get_k_32bits (const struct c_wlsb const wlsb, const uint32_t value, size_t const bits_nr)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.
bool ROHC_EXPORT	wlsb_get_kp_32bits (const struct c_wlsb const wlsb, const uint32_t value, const rohc_lsb_shift_t p, size_t const bits_nr)
	Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.
void ROHC_EXPORT	c_ack_sn_wlsb (struct c_wlsb *const s, const uint32_t sn)
	Acknowledge based on the Sequence Number (SN)

Detailed Description

Window-based Least Significant Bits (W-LSB) encoding.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; David Moreau from TAS

Function Documentation

Acknowledge based on the Sequence Number (SN)

Removes all entries older than the given SN in the window.

Parameters:

s	The W-LSB object
sn	The SN to acknowledge

Add a value into a W-LSB encoding object.

Parameters:

wlsb	The W-LSB object
sn	The Sequence Number (SN) for the new entry
value	The value to base the LSB coding on

struct c_wlsb* ROHC_EXPORT c_create_wlsb	(	const size_t	bits,
		const size_t	window_width,
		const rohc_lsb_shift_t	p
	)		`[read]`

Create a new Window-based Least Significant Bits (W-LSB) encoding object.

Parameters:

bits	The maximal number of bits for representing a value
window_width	The number of entries in the window (power of 2)
p	Shift parameter (see 4.5.2 in the RFC 3095)

void ROHC_EXPORT c_destroy_wlsb ( struct c_wlsb *const wlsb )

Destroy a Window-based LSB (W-LSB) encoding object.

Parameters:

wlsb	The W-LSB object to destroy

bool ROHC_EXPORT wlsb_get_k_16bits	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		size_t *const	bits_nr
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 16-bit fields.

Parameters:

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
bits_nr	OUT: The number of bits required to uniquely recreate the value

Returns:: true in case of success, false if the minimal number of bits can not be found

bool ROHC_EXPORT wlsb_get_k_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		size_t *const	bits_nr
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters:

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
bits_nr	OUT: The number of bits required to uniquely recreate the value

Returns:: true in case of success, false if the minimal number of bits can not be found

bool ROHC_EXPORT wlsb_get_kp_32bits	(	const struct c_wlsb *const	wlsb,
		const uint32_t	value,
		const rohc_lsb_shift_t	p,
		size_t *const	bits_nr
	)

Find out the minimal number of bits of the to-be-encoded value required to be able to uniquely recreate it given the window.

The function is dedicated to 32-bit fields.

Parameters:

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
p	The shift parameter p
bits_nr	OUT: The number of bits required to uniquely recreate the value

Returns:: true in case of success, false if the minimal number of bits can not be found
