d_esp.c File Reference

ROHC ESP decompression profile. More...

#include "d_generic.h"
#include "d_ip.h"
#include "rohc_traces_internal.h"
#include "rohc_debug.h"
#include "rohc_utils.h"
#include "crc.h"
#include "protocols/esp.h"
#include "schemes/wlsb.h"
#include <stdint.h>
#include <string.h>
#include <assert.h>

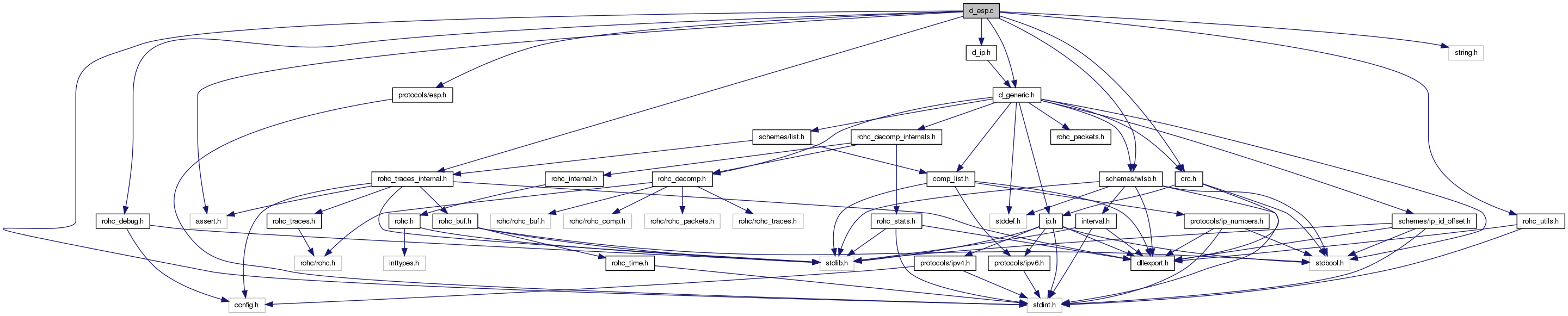

Include dependency graph for d_esp.c:

Data Structures
struct	d_esp_context
	Define the ESP part of the decompression profile context. More...
Functions
static void *	d_esp_create (const struct rohc_decomp_ctxt *const context)
	Create the ESP decompression context.
static void	d_esp_destroy (void *const context)
	Destroy the context.
static int	esp_parse_static_esp (const struct rohc_decomp_ctxt *const context, const unsigned char *packet, size_t length, struct rohc_extr_bits *const bits)
	Parse the ESP static part of the ROHC packet.
static int	esp_parse_dynamic_esp (const struct rohc_decomp_ctxt *const context, const uint8_t *packet, const size_t length, struct rohc_extr_bits *const bits)
	Parse the ESP dynamic part of the ROHC packet.
static bool	esp_decode_values_from_bits (const struct rohc_decomp_ctxt *context, const struct rohc_extr_bits bits, struct rohc_decoded_values *const decoded)
	Decode ESP values from extracted bits.
static int	esp_build_uncomp_esp (const struct rohc_decomp_ctxt *const context, const struct rohc_decoded_values decoded, unsigned char *dest, const unsigned int payload_len)
	Build an uncompressed ESP header.
static void	esp_update_context (const struct rohc_decomp_ctxt *context, const struct rohc_decoded_values decoded)
	Update context with decoded ESP values.
Variables
struct rohc_decomp_profile	d_esp_profile
	Define the decompression part of the ESP profile as described in the RFC 3095.

---

Detailed Description

ROHC ESP decompression profile.

Author:

FWX <rohc_team@dialine.fr>

Didier Barvaux <didier@barvaux.org>

---

Function Documentation

static void * d_esp_create

(

const struct rohc_decomp_ctxt *const

context

)

[static]

Create the ESP decompression context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context

The decompression context

Returns:

The newly-created ESP decompression context

static void d_esp_destroy

(

void *const

context

)

[static]

Destroy the context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context

The compression context

static int esp_build_uncomp_esp	(	const struct rohc_decomp_ctxt *const	context,
		const struct rohc_decoded_values	decoded,
		unsigned char *	dest,
		const unsigned int	payload_len
	)		[static]

Build an uncompressed ESP header.

Parameters:

context	The decompression context
decoded	The values decoded from the ROHC header
dest	The buffer to store the ESP header (MUST be at least of sizeof(struct esphdr) length)
payload_len	The length of the ESP payload

Returns:

The length of the next header (ie. the ESP header), -1 in case of error

static bool esp_decode_values_from_bits	(	const struct rohc_decomp_ctxt *	context,
		const struct rohc_extr_bits	bits,
		struct rohc_decoded_values *const	decoded
	)		[static]

Decode ESP values from extracted bits.

The following values are decoded:

• ESP SPI

Parameters:

context	The decompression context
bits	The extracted bits
decoded	OUT: The corresponding decoded values

Returns:

true if decoding is successful, false otherwise

static int esp_parse_dynamic_esp	(	const struct rohc_decomp_ctxt *const	context,
		const uint8_t *	packet,
		const size_t	length,
		struct rohc_extr_bits *const	bits
	)		[static]

Parse the ESP dynamic part of the ROHC packet.

Parameters:

context	The decompression context
packet	The ROHC packet to decode
length	The length of the ROHC packet
bits	OUT: The bits extracted from the ROHC header

Returns:

The number of bytes read in the ROHC packet, -1 in case of failure

static int esp_parse_static_esp	(	const struct rohc_decomp_ctxt *const	context,
		const unsigned char *	packet,
		size_t	length,
		struct rohc_extr_bits *const	bits
	)		[static]

Parse the ESP static part of the ROHC packet.

Parameters:

context	The decompression context
packet	The ROHC packet to decode
length	The length of the ROHC packet
bits	OUT: The bits extracted from the ROHC header

Returns:

The number of bytes read in the ROHC packet, -1 in case of failure

static void esp_update_context	(	const struct rohc_decomp_ctxt *	context,
		const struct rohc_decoded_values	decoded
	)		[static]

Update context with decoded ESP values.

The following decoded values are updated in context:

• ESP SPI

Parameters:

context	The decompression context
decoded	The decoded values to update in the context

---

Variable Documentation

struct rohc_decomp_profile d_esp_profile

Initial value:

{
        .id              = ROHC_PROFILE_ESP,
        .new_context     = d_esp_create,
        .free_context    = d_esp_destroy,
        .decode          = d_generic_decode,
        .detect_pkt_type = ip_detect_packet_type,
        .get_sn          = d_generic_get_sn,
}

Define the decompression part of the ESP profile as described in the RFC 3095.
