scaled_rtp_ts.c File Reference

Scaled RTP Timestamp decoding. More...

#include "scaled_rtp_ts.h"
#include "wlsb.h"
#include "rohc_traces_internal.h"
#include <assert.h>

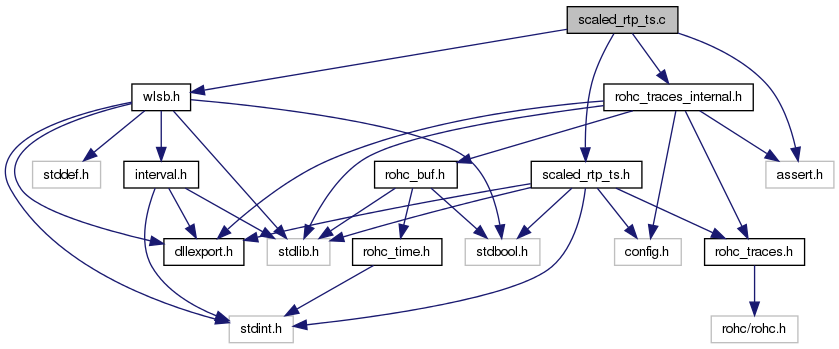

Include dependency graph for decomp/schemes/scaled_rtp_ts.c:

Data Structures
struct	ts_sc_decomp
	The scaled RTP Timestamp decoding context. More...
Defines
#define	ts_debug(entity_struct, format,...)
Functions
struct ts_sc_decomp *	d_create_sc (rohc_trace_callback_t trace_cb, rohc_trace_callback2_t trace_cb2, void *const trace_cb_priv)
	Create the scaled RTP Timestamp decoding context.
void	rohc_ts_scaled_free (struct ts_sc_decomp *const ts_sc)
	Destroy the given ts_sc_decomp object.
void	ts_update_context (struct ts_sc_decomp *const ts_sc, const uint32_t ts, const uint16_t sn)
	Store a new timestamp.
void	d_record_ts_stride (struct ts_sc_decomp *const ts_sc, const uint32_t ts_stride)
	Store the newly-parsed TS_STRIDE value.
bool	ts_decode_unscaled_bits (struct ts_sc_decomp *const ts_sc, const uint32_t ts_unscaled_bits, const size_t ts_unscaled_bits_nr, uint32_t *const decoded_ts, const bool compat_1_6_x)
	Decode timestamp (TS) value with some LSB bits of the unscaled value.
bool	ts_decode_scaled_bits (struct ts_sc_decomp *const ts_sc, const uint32_t ts_scaled_bits, const size_t ts_scaled_bits_nr, uint32_t *const decoded_ts)
	Decode timestamp (TS) value with some LSB bits of the TS_SCALED value.
uint32_t	ts_deduce_from_sn (struct ts_sc_decomp *const ts_sc, const uint16_t sn)
	Deduct timestamp (TS) from Sequence Number (SN)

---

Detailed Description

Scaled RTP Timestamp decoding.

Author:

David Moreau from TAS

Didier Barvaux <didier@barvaux.org>

---

Define Documentation

#define ts_debug	(		entity_struct,
			format,
			...
	)

Value:

rohc_debug(entity_struct, ROHC_TRACE_DECOMP, ROHC_PROFILE_GENERAL, \
                   format, ##__VA_ARGS__)

Print debug messages for the ts_sc_decomp module

---

Function Documentation

struct ts_sc_decomp* d_create_sc	(	rohc_trace_callback_t	trace_cb,
		rohc_trace_callback2_t	trace_cb2,
		void *const	trace_cb_priv
	)		[read]

Create the scaled RTP Timestamp decoding context.

Parameters:

trace_cb	The old trace callback
trace_cb2	The new trace callback
trace_cb_priv	An optional private context for the trace

Returns:

The scaled RTP Timestamp decoding context in case of success, NULL otherwise

void d_record_ts_stride	(	struct ts_sc_decomp *const	ts_sc,
		const uint32_t	ts_stride
	)

Store the newly-parsed TS_STRIDE value.

Parameters:

ts_sc	The ts_sc_decomp object
ts_stride	The TS_STRIDE value to add

void rohc_ts_scaled_free

(

struct ts_sc_decomp *const

ts_sc

)

Destroy the given ts_sc_decomp object.

Parameters:

ts_sc

The ts_sc_decomp object to destroy

bool ts_decode_scaled_bits	(	struct ts_sc_decomp *const	ts_sc,
		const uint32_t	ts_scaled_bits,
		const size_t	ts_scaled_bits_nr,
		uint32_t *const	decoded_ts
	)

Decode timestamp (TS) value with some LSB bits of the TS_SCALED value.

Use the given TS and TS_SCALED bits. Use the TS_STRIDE and TS_OFFSET values found in context.

Parameters:

ts_sc	The ts_sc_decomp object
ts_scaled_bits	The W-LSB-encoded TS_SCALED value
ts_scaled_bits_nr	The number of bits of TS_SCALED (W-LSB)
decoded_ts	OUT: The decoded TS

Returns:

true in case of success, false otherwise

bool ts_decode_unscaled_bits	(	struct ts_sc_decomp *const	ts_sc,
		const uint32_t	ts_unscaled_bits,
		const size_t	ts_unscaled_bits_nr,
		uint32_t *const	decoded_ts,
		const bool	compat_1_6_x
	)

Decode timestamp (TS) value with some LSB bits of the unscaled value.

Use the given unscaled TS bits. If the TS_STRIDE value was updated by the current packet, compute new TS_SCALED and TS_OFFSET values from the new TS_STRIDE value.

Parameters:

ts_sc	The ts_sc_decomp object
ts_unscaled_bits	The W-LSB-encoded TS value
ts_unscaled_bits_nr	The number of bits of TS_SCALED (W-LSB)
decoded_ts	OUT: The decoded TS
compat_1_6_x	Keep the behaviour of <= 1.6.x versions

Returns:

true in case of success, false otherwise

uint32_t ts_deduce_from_sn	(	struct ts_sc_decomp *const	ts_sc,
		const uint16_t	sn
	)

Deduct timestamp (TS) from Sequence Number (SN)

Use the given SN bits to compute the new TS_SCALED value. Use the TS_STRIDE and TS_OFFSET values found in context.

Parameters:

ts_sc	The ts_sc_decomp object
sn	The SN

Returns:

The decoded TS

void ts_update_context	(	struct ts_sc_decomp *const	ts_sc,
		const uint32_t	ts,
		const uint16_t	sn
	)

Store a new timestamp.

Parameters:

ts_sc	The ts_sc_decomp object
ts	The new decoded TimeStamp (TS)
sn	The new decoded Sequence Number (SN)
