rohc_comp.h File Reference

ROHC compression routines. More...

#include <rohc/rohc.h>
#include <rohc/rohc_packets.h>
#include <rohc/rohc_traces.h>
#include <rohc/rohc_time.h>
#include <rohc/rohc_buf.h>
#include <stdlib.h>
#include <stdint.h>
#include <stdbool.h>

Include dependency graph for rohc_comp.h:

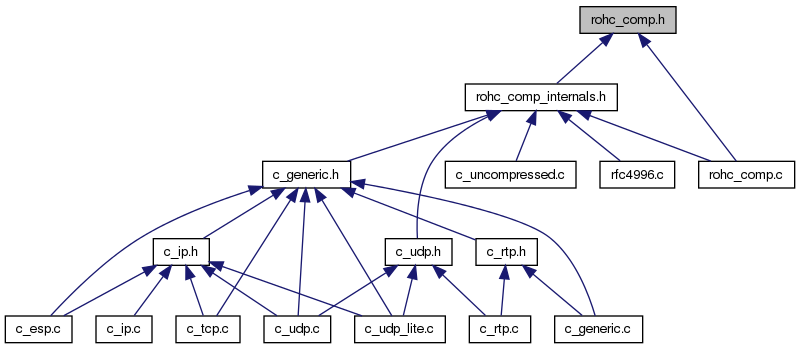

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rohc_comp_last_packet_info_t
	Some information about the last compressed packet. More...
struct	rohc_comp_last_packet_info2_t
	Some information about the last compressed packet. More...
struct	rohc_comp_general_info_t
	Some general information about the compressor. More...
Defines
#define	ROHC_EXPORT
Typedefs
typedef bool(*	rohc_rtp_detection_callback_t )(const unsigned char *const ip, const unsigned char *const udp, const unsigned char *const payload, const unsigned int payload_size, void *const rtp_private)
	The prototype of the RTP detection callback.
typedef int(*	rohc_comp_random_cb_t )(const struct rohc_comp *const comp, void *const user_context)
	The prototype of the callback for random numbers.
Enumerations
enum	rohc_c_state { IR = 1, FO = 2, SO = 3 }
	The different ROHC compressor states. More...
enum	rohc_comp_state_t { ROHC_COMP_STATE_IR = 1, ROHC_COMP_STATE_FO = 2, ROHC_COMP_STATE_SO = 3 }
	The different ROHC compressor states. More...
enum	rohc_comp_features_t { ROHC_COMP_FEATURE_NONE = 0, ROHC_COMP_FEATURE_COMPAT_1_6_x = (1 << 0), ROHC_COMP_FEATURE_NO_IP_CHECKSUMS = (1 << 2) }
	The different features of the ROHC compressor. More...
Functions
struct rohc_comp *ROHC_EXPORT	rohc_alloc_compressor (int max_cid, int jam_use, int adapt_size, int encap_size)
	Create one ROHC compressor.
void ROHC_EXPORT	rohc_free_compressor (struct rohc_comp *comp)
	Destroy one ROHC compressor.
struct rohc_comp *ROHC_EXPORT	rohc_comp_new (const rohc_cid_type_t cid_type, const rohc_cid_t max_cid)
	Create a new ROHC compressor.
struct rohc_comp *ROHC_EXPORT	rohc_comp_new2 (const rohc_cid_type_t cid_type, const rohc_cid_t max_cid, const rohc_comp_random_cb_t rand_cb, void *const rand_priv)
	Create a new ROHC compressor.
void ROHC_EXPORT	rohc_comp_free (struct rohc_comp *const comp)
	Destroy the given ROHC compressor.
bool ROHC_EXPORT	rohc_comp_set_traces_cb (struct rohc_comp *const comp, rohc_trace_callback_t callback)
	Set the callback function used to manage traces in compressor.
bool ROHC_EXPORT	rohc_comp_set_traces_cb2 (struct rohc_comp *const comp, rohc_trace_callback2_t callback, void *const priv_ctxt)
	Set the callback function used to manage traces in compressor.
bool ROHC_EXPORT	rohc_comp_set_random_cb (struct rohc_comp *const comp, rohc_comp_random_cb_t callback, void *const user_context)
	Set the user-defined callback for random numbers.
int ROHC_EXPORT	rohc_compress (struct rohc_comp *comp, unsigned char *ibuf, int isize, unsigned char *obuf, int osize)
	Compress the given uncompressed packet into a ROHC packet.
int ROHC_EXPORT	rohc_compress2 (struct rohc_comp *const comp, const unsigned char *const uncomp_packet, const size_t uncomp_packet_len, unsigned char *const rohc_packet, const size_t rohc_packet_max_len, size_t *const rohc_packet_len)
	Compress the given uncompressed packet into a ROHC packet.
int ROHC_EXPORT	rohc_compress3 (struct rohc_comp *const comp, const struct rohc_ts arrival_time, const unsigned char *const uncomp_packet, const size_t uncomp_packet_len, unsigned char *const rohc_packet, const size_t rohc_packet_max_len, size_t *const rohc_packet_len)
	Compress the given uncompressed packet into a ROHC packet.
rohc_status_t ROHC_EXPORT	rohc_compress4 (struct rohc_comp *const comp, const struct rohc_buf uncomp_packet, struct rohc_buf *const rohc_packet)
	Compress the given uncompressed packet into a ROHC packet.
int ROHC_EXPORT	rohc_comp_get_segment (struct rohc_comp *const comp, unsigned char *const segment, const size_t max_len, size_t *const len)
	Get the next ROHC segment if any.
rohc_status_t ROHC_EXPORT	rohc_comp_get_segment2 (struct rohc_comp *const comp, struct rohc_buf *const segment)
	Get the next ROHC segment if any.
bool ROHC_EXPORT	rohc_comp_force_contexts_reinit (struct rohc_comp *const comp)
	Force the compressor to re-initialize all its contexts.
int ROHC_EXPORT	rohc_c_is_enabled (struct rohc_comp *comp)
	Whether the ROHC compressor is enabled or not.
int ROHC_EXPORT	rohc_c_using_small_cid (struct rohc_comp *comp)
	Whether the compressor uses small CID or not.
bool ROHC_EXPORT	rohc_comp_profile_enabled (const struct rohc_comp *const comp, const rohc_profile_t profile)
	Is the given compression profile enabled for a compressor?
void ROHC_EXPORT	rohc_activate_profile (struct rohc_comp *comp, int profile)
	Activate a profile for a compressor.
bool ROHC_EXPORT	rohc_comp_enable_profile (struct rohc_comp *const comp, const rohc_profile_t profile)
	Enable a compression profile for a compressor.
bool ROHC_EXPORT	rohc_comp_disable_profile (struct rohc_comp *const comp, const rohc_profile_t profile)
	Disable a compression profile for a compressor.
bool ROHC_EXPORT	rohc_comp_enable_profiles (struct rohc_comp *const comp,...)
	Enable several compression profiles for a compressor.
bool ROHC_EXPORT	rohc_comp_disable_profiles (struct rohc_comp *const comp,...)
	Disable several compression profiles for a compressor.
void ROHC_EXPORT	rohc_c_set_header (struct rohc_comp *compressor, int value)
	Set the maximal header size. The maximal header size is ignored for the moment.
void ROHC_EXPORT	rohc_c_set_mrru (struct rohc_comp *compressor, int value)
	Set the Maximum Reconstructed Reception Unit (MRRU).
bool ROHC_EXPORT	rohc_comp_set_mrru (struct rohc_comp *const comp, const size_t mrru)
	Set the Maximum Reconstructed Reception Unit (MRRU).
bool ROHC_EXPORT	rohc_comp_get_mrru (const struct rohc_comp *const comp, size_t *const mrru)
	Get the Maximum Reconstructed Reception Unit (MRRU).
void ROHC_EXPORT	rohc_c_set_max_cid (struct rohc_comp *compressor, int value)
	Set the maximal CID value the compressor should use.
bool ROHC_EXPORT	rohc_comp_get_max_cid (const struct rohc_comp *const comp, size_t *const max_cid)
	Get the maximal CID value the compressor uses.
void ROHC_EXPORT	rohc_c_set_large_cid (struct rohc_comp *compressor, int value)
	Tell the compressor to use large CIDs.
bool ROHC_EXPORT	rohc_comp_get_cid_type (const struct rohc_comp *const comp, rohc_cid_type_t *const cid_type)
	Get the CID type that the compressor uses.
void ROHC_EXPORT	rohc_c_set_enable (struct rohc_comp *compressor, int value)
	Enable the ROHC compressor.
bool ROHC_EXPORT	rohc_comp_add_rtp_port (struct rohc_comp *const comp, const unsigned int port)
	Add a port to the list of UDP ports dedicated for RTP traffic.
bool ROHC_EXPORT	rohc_comp_remove_rtp_port (struct rohc_comp *const comp, const unsigned int port)
	Remove a port from the list of UDP ports dedicated to RTP traffic.
bool ROHC_EXPORT	rohc_comp_reset_rtp_ports (struct rohc_comp *const comp)
	Reset the list of dedicated RTP ports.
bool ROHC_EXPORT	rohc_comp_set_rtp_detection_cb (struct rohc_comp *const comp, rohc_rtp_detection_callback_t callback, void *const rtp_private)
	Set the RTP detection callback function.
bool ROHC_EXPORT	rohc_comp_set_features (struct rohc_comp *const comp, const rohc_comp_features_t features)
	Enable/disable features for ROHC compressor.
void ROHC_EXPORT	c_piggyback_feedback (struct rohc_comp *comp, unsigned char *packet, int size)
	Add a feedback packet to the next outgoing ROHC packet (piggybacking)
bool ROHC_EXPORT	__rohc_comp_piggyback_feedback (struct rohc_comp *const comp, const unsigned char *const feedback, const size_t size)
	Add a feedback packet to the next outgoing ROHC packet (piggybacking)
bool ROHC_EXPORT	rohc_comp_piggyback_feedback (struct rohc_comp *const comp, const unsigned char *const feedback, const size_t size)
	Add a feedback packet to the next outgoing ROHC packet (piggybacking)
void ROHC_EXPORT	c_deliver_feedback (struct rohc_comp *comp, unsigned char *feedback, int size)
	Callback called by a decompressor to deliver a feedback packet to the compressor.
bool ROHC_EXPORT	__rohc_comp_deliver_feedback (struct rohc_comp *const comp, const uint8_t *const feedback, const size_t size)
	Deliver a feedback packet to the compressor.
bool ROHC_EXPORT	rohc_comp_deliver_feedback (struct rohc_comp *const comp, const uint8_t *const feedback, const size_t size)
	Deliver a feedback packet to the compressor.
bool ROHC_EXPORT	rohc_comp_deliver_feedback2 (struct rohc_comp *const comp, const struct rohc_buf feedback)
	Deliver a feedback packet to the compressor.
int ROHC_EXPORT	rohc_feedback_flush (struct rohc_comp *comp, unsigned char *obuf, int osize)
	Send as much feedback data as possible.
size_t ROHC_EXPORT	rohc_feedback_avail_bytes (const struct rohc_comp *const comp)
	How many bytes of unsent feedback data are available at compressor?
bool ROHC_EXPORT	rohc_feedback_remove_locked (struct rohc_comp *const comp)
	Remove all feedbacks locked during the packet build.
bool ROHC_EXPORT	rohc_feedback_unlock (struct rohc_comp *const comp)
	Unlock all feedbacks locked during the packet build.
bool ROHC_EXPORT	rohc_comp_set_wlsb_window_width (struct rohc_comp *const comp, const size_t width)
	Set the window width for the W-LSB encoding scheme.
bool ROHC_EXPORT	rohc_comp_set_periodic_refreshes (struct rohc_comp *const comp, const size_t ir_timeout, const size_t fo_timeout)
	Set the timeout values for IR and FO periodic refreshes.
bool ROHC_EXPORT	rohc_comp_set_list_trans_nr (struct rohc_comp *const comp, const size_t list_trans_nr)
	Set the number of uncompressed transmissions for list compression.
int ROHC_EXPORT	rohc_c_info (char *buffer)
	Get information about available compression profiles.
int ROHC_EXPORT	rohc_c_statistics (struct rohc_comp *comp, unsigned int indent, char *buffer)
	Get information about a ROHC compressor.
int ROHC_EXPORT	rohc_c_context (struct rohc_comp *comp, int cid, unsigned int indent, char *buffer)
	Get information about a compression context.
int ROHC_EXPORT	rohc_comp_get_last_packet_info (const struct rohc_comp *const comp, rohc_comp_last_packet_info_t *const info)
	Get some information about the last compressed packet.
bool ROHC_EXPORT	rohc_comp_get_general_info (const struct rohc_comp *const comp, rohc_comp_general_info_t *const info)
	Get some general information about the compressor.
bool ROHC_EXPORT	rohc_comp_get_last_packet_info2 (const struct rohc_comp *const comp, rohc_comp_last_packet_info2_t *const info)
	Get some information about the last compressed packet.
const char *ROHC_EXPORT	rohc_comp_get_state_descr (const rohc_comp_state_t state)
	Give a description for the given ROHC compression context state.

---

Detailed Description

ROHC compression routines.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

---

Define Documentation

#define ROHC_EXPORT

Macro that handles DLL export declarations gracefully

---

Function Documentation

bool ROHC_EXPORT __rohc_comp_deliver_feedback	(	struct rohc_comp *const	comp,
		const uint8_t *const	packet,
		const size_t	size
	)

Deliver a feedback packet to the compressor.

When feedback is received by the decompressor, this function is called and delivers the feedback to the right profile/context of the compressor.

Parameters:

comp	The ROHC compressor
packet	The feedback data
size	The length of the feedback packet

Returns:

true if the feedback was successfully taken into account, false if the feedback could not be taken into account

bool ROHC_EXPORT __rohc_comp_piggyback_feedback	(	struct rohc_comp *const	comp,
		const unsigned char *const	feedback,
		const size_t	size
	)

Add a feedback packet to the next outgoing ROHC packet (piggybacking)

Parameters:

comp	The ROHC compressor
feedback	The feedback data
size	The length of the feedback packet

Returns:

true in case of success, false otherwise

int ROHC_EXPORT rohc_c_context	(	struct rohc_comp *	comp,
		int	cid,
		unsigned int	indent,
		char *	buffer
	)

Get information about a compression context.

This function outputs XML.

Deprecated:

do not use this function anymore, use rohc_comp_get_general_info() instead

Parameters:

comp	The ROHC compressor
cid	The CID of the compressor context to output information about
indent	The indent level to beautify the XML output
buffer	The buffer where to store the information

Returns:

The length of the data stored in the buffer if successful, -2 if the given CID is too large, -1 if the given CID is unused or an error occurs
