TCP header description. More...

#include <stdint.h>
#include "config.h"

Include dependency graph for tcp.h:

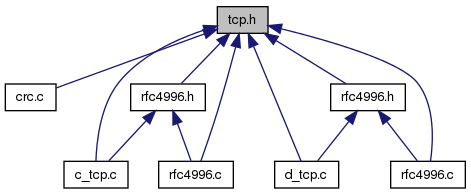

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ipv6_opt
	Define the IPv6 option header. More...
struct	ip_opt_static
	Define the static part of IPv6 option header. More...
struct	ip_opt_dynamic
	Define the dynamic part of IPv6 option header. More...
struct	ip_dest_opt
	Define the IPv6 Destination options header. More...
struct	ip_dest_opt_static
	Define the static part of IPv6 Destination option header. More...
struct	ip_dest_opt_dynamic
	Define the dynamic part of IPv6 Destination option header. More...
struct	ip_hop_opt
	Define the IPv6 Hop-by-Hop option header. More...
struct	ip_hop_opt_static
	Define the static part of IPv6 Hop-by-Hop option header. More...
struct	ip_hop_opt_dynamic
	Define the dynamic part of IPv6 Hop-by-Hop option header. More...
struct	ip_rout_opt
	Define the IPv6 Routing option header. More...
struct	ip_rout_opt_static
	Define the static part of IPv6 Routing option header. More...
struct	ip_gre_opt
	Define the IPv6 GRE option header. More...
struct	ip_gre_opt_static
	Define the static part of IPv6 GRE option header. More...
struct	ip_mime_opt
	Define the IPv6 MIME option header. More...
struct	ip_mime_opt_static
	Define the static part of IPv6 MIME option header. More...
struct	ip_ah_opt
	Define the IPv6 Authentication option header. More...
struct	ip_ah_opt_static
	Define the static part of IPv6 Authentication option header. More...
struct	ip_ah_opt_dynamic
	Define the dynamic part of IPv6 Authentication option header. More...
struct	base_header_ip_vx
	Define the common IP v4/v6 header. More...
struct	base_header_ip_v4
	Define the IPv4 header. More...
struct	base_header_ip_v6
	Define the IP v6 header. More...
struct	ipv4_static
	Define the IP v4 static part. More...
struct	ipv4_dynamic1
	Define the IP v4 dynamic part without ip_id. More...
struct	ipv4_dynamic2
	Define the IP v4 dynamic part with ip_id field. More...
struct	ipv4_replicate
	Define the IP v4 replicate part. More...
struct	ipv6_static1
	Define the IP v6 static part, null flow_label encoded with 1 bit. More...
struct	ipv6_static2
	Define the IP v6 static part, flow_label encoded with 1+20 bits. More...
struct	ipv6_dynamic
	Define the IP v6 dynamic part. More...
struct	ipv6_replicate1
	Define the IP v6 replicate part, flow_label encoded with 5 bits. More...
struct	ipv6_replicate2
	Define the IP v6 replicate part, flow_label encoded with 21 bits. More...
struct	ipv6_extension
	Define the IP v6 extension. More...
struct	sack_block_t
	Define the Selective Acknowlegment TCP option. More...
struct	tcphdr
	Define the TCP header. More...
struct	tcp_option_timestamp
struct	tcp_static
	Define the TCP static part. More...
struct	tcp_dynamic
	Define the TCP dynamic part. More...
struct	tcp_replicate
	Define the TCP replicate part. More...
struct	co_common
	Define the Common compressed packet format. More...
struct	rnd_1
	Define the rnd_1 compressed packet format. More...
struct	rnd_2
	Define the rnd_2 compressed packet format. More...
struct	rnd_3
	Define the rnd_3 compressed packet format. More...
struct	rnd_4
	Define the rnd_4 compressed packet format. More...
struct	rnd_5
	Define the rnd_5 compressed packet format. More...
struct	rnd_6
	Define the rnd_6 compressed packet format. More...
struct	rnd_7
	Define the rnd_7 compressed packet format. More...
struct	rnd_8
	Define the rnd_8 compressed packet format. More...
struct	seq_1
	Define the seq_1 compressed packet format. More...
struct	seq_2
	Define the seq_2 compressed packet format. More...
struct	seq_3
	Define the seq_3 compressed packet format. More...
struct	seq_4
	Define the seq_4 compressed packet format. More...
struct	seq_5
	Define the seq_5 compressed packet format. More...
struct	seq_6
	Define the seq_6 compressed packet format. More...
struct	seq_7
	Define the seq_7 compressed packet format. More...
struct	seq_8
	Define the seq_8 compressed packet format. More...
union	base_header_ip_t
	Define union of different header pointers. More...
Defines
#define	ROHC_PACKET_TYPE_IR 0xFD
#define	ROHC_PACKET_TYPE_IR_DYN 0xF8
#define	DSCP_V6(ptr) (((ptr)->dscp1 << 2) \| (ptr)->dscp2)
#define	FLOW_LABEL_V6(ptr) (((ptr->flow_label1) << 16) \| ptr->flow_label2)
#define	MAX_TCP_OPTION_INDEX 15U
#define	ROHC_TCP_OPTS_MAX 15U
	The maximum of TCP options.
#define	RSF_RST_ONLY 0x04
	Define the RSF flags.
#define	RSF_SYN_ONLY 0x02
#define	RSF_FIN_ONLY 0x01
#define	RSF_NONE 0x00
#define	TCP_OPT_EOL 0
	Define the TCP options.
#define	TCP_OPT_NOP 1
#define	TCP_OPT_MAXSEG 2
#define	TCP_OLEN_MAXSEG 4
#define	TCP_OPT_WINDOW 3
#define	TCP_OLEN_WINDOW 3
#define	TCP_OPT_SACK_PERMITTED 4 /* Experimental */
#define	TCP_OLEN_SACK_PERMITTED 2
#define	TCP_OPT_SACK 5 /* Experimental */
#define	TCP_OPT_TIMESTAMP 8
#define	TCP_OLEN_TIMESTAMP 10
#define	TCP_OLEN_TSTAMP_APPA (TCP_OLEN_TIMESTAMP + 2) /* appendix A */
#define	TCP_OPT_TSTAMP_HDR (TCP_OPT_NOP << 24 \| TCP_OPT_NOP << 16 \| TCP_OPT_TIMESTAMP << 8 \| TCP_OLEN_TIMESTAMP)
#define	TCP_INDEX_NOP 0
#define	TCP_INDEX_EOL 1
#define	TCP_INDEX_MAXSEG 2
#define	TCP_INDEX_WINDOW 3
#define	TCP_INDEX_TIMESTAMP 4
#define	TCP_INDEX_SACK_PERMITTED 5
#define	TCP_INDEX_SACK 6
Typedefs
typedef struct ipv6_opt	ipv6_opt_t
	Define the IPv6 option header.
typedef struct ip_opt_static	ip_opt_static_t
	Define the static part of IPv6 option header.
typedef struct ip_opt_dynamic	ip_opt_dynamic_t
	Define the dynamic part of IPv6 option header.
typedef struct ip_dest_opt	ip_dest_opt_t
	Define the IPv6 Destination options header.
typedef struct ip_dest_opt_static	ip_dest_opt_static_t
	Define the static part of IPv6 Destination option header.
typedef struct ip_dest_opt_dynamic	ip_dest_opt_dynamic_t
	Define the dynamic part of IPv6 Destination option header.
typedef struct ip_hop_opt	ip_hop_opt_t
	Define the IPv6 Hop-by-Hop option header.
typedef struct ip_hop_opt_static	ip_hop_opt_static_t
	Define the static part of IPv6 Hop-by-Hop option header.
typedef struct ip_hop_opt_dynamic	ip_hop_opt_dynamic_t
	Define the dynamic part of IPv6 Hop-by-Hop option header.
typedef struct ip_rout_opt	ip_rout_opt_t
	Define the IPv6 Routing option header.
typedef struct ip_rout_opt_static	ip_rout_opt_static_t
	Define the static part of IPv6 Routing option header.
typedef struct ip_gre_opt	ip_gre_opt_t
	Define the IPv6 GRE option header.
typedef struct ip_gre_opt_static	ip_gre_opt_static_t
	Define the static part of IPv6 GRE option header.
typedef struct ip_mime_opt	ip_mime_opt_t
	Define the IPv6 MIME option header.
typedef struct ip_mime_opt_static	ip_mime_opt_static_t
	Define the static part of IPv6 MIME option header.
typedef struct ip_ah_opt	ip_ah_opt_t
	Define the IPv6 Authentication option header.
typedef struct ip_ah_opt_static	ip_ah_opt_static_t
	Define the static part of IPv6 Authentication option header.
typedef struct ip_ah_opt_dynamic	ip_ah_opt_dynamic_t
	Define the dynamic part of IPv6 Authentication option header.
typedef struct base_header_ip_vx	base_header_ip_vx_t
	Define the common IP v4/v6 header.
typedef struct base_header_ip_v4	base_header_ip_v4_t
	Define the IPv4 header.
typedef struct base_header_ip_v6	base_header_ip_v6_t
	Define the IP v6 header.
typedef struct ipv4_static	ipv4_static_t
	Define the IP v4 static part.
typedef struct ipv4_dynamic1	ipv4_dynamic1_t
	Define the IP v4 dynamic part without ip_id.
typedef struct ipv4_dynamic2	ipv4_dynamic2_t
	Define the IP v4 dynamic part with ip_id field.
typedef struct ipv4_replicate	ipv4_replicate_t
	Define the IP v4 replicate part.
typedef struct ipv6_static1	ipv6_static1_t
	Define the IP v6 static part, null flow_label encoded with 1 bit.
typedef struct ipv6_static2	ipv6_static2_t
	Define the IP v6 static part, flow_label encoded with 1+20 bits.
typedef struct ipv6_dynamic	ipv6_dynamic_t
	Define the IP v6 dynamic part.
typedef struct ipv6_replicate1	ipv6_replicate1_t
	Define the IP v6 replicate part, flow_label encoded with 5 bits.
typedef struct ipv6_replicate2	ipv6_replicate2_t
	Define the IP v6 replicate part, flow_label encoded with 21 bits.
typedef struct ipv6_extension	ipv6_extension_t
	Define the IP v6 extension.
typedef struct tcphdr	tcphdr_t
	Define the TCP header.
typedef struct tcp_static	tcp_static_t
	Define the TCP static part.
typedef struct tcp_dynamic	tcp_dynamic_t
	Define the TCP dynamic part.
typedef struct tcp_replicate	tcp_replicate_t
	Define the TCP replicate part.
typedef struct co_common	co_common_t
	Define the Common compressed packet format.
typedef struct rnd_1	rnd_1_t
	Define the rnd_1 compressed packet format.
typedef struct rnd_2	rnd_2_t
	Define the rnd_2 compressed packet format.
typedef struct rnd_3	rnd_3_t
	Define the rnd_3 compressed packet format.
typedef struct rnd_4	rnd_4_t
	Define the rnd_4 compressed packet format.
typedef struct rnd_5	rnd_5_t
	Define the rnd_5 compressed packet format.
typedef struct rnd_6	rnd_6_t
	Define the rnd_6 compressed packet format.
typedef struct rnd_7	rnd_7_t
	Define the rnd_7 compressed packet format.
typedef struct rnd_8	rnd_8_t
	Define the rnd_8 compressed packet format.
typedef struct seq_1	seq_1_t
	Define the seq_1 compressed packet format.
typedef struct seq_2	seq_2_t
	Define the seq_2 compressed packet format.
typedef struct seq_3	seq_3_t
	Define the seq_3 compressed packet format.
typedef struct seq_4	seq_4_t
	Define the seq_4 compressed packet format.
typedef struct seq_5	seq_5_t
	Define the seq_5 compressed packet format.
typedef struct seq_6	seq_6_t
	Define the seq_6 compressed packet format.
typedef struct seq_7	seq_7_t
	Define the seq_7 compressed packet format.
typedef struct seq_8	seq_8_t
	Define the seq_8 compressed packet format.
Enumerations
enum	tcp_ip_id_behavior_t { IP_ID_BEHAVIOR_SEQ = 0, IP_ID_BEHAVIOR_SEQ_SWAP = 1, IP_ID_BEHAVIOR_RAND = 2, IP_ID_BEHAVIOR_ZERO = 3 }

Detailed Description

TCP header description.

Author:: FWX <rohc_team@dialine.fr>; Didier Barvaux <didier@barvaux.org>; Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Define Documentation

#define DSCP_V6 ( ptr ) (((ptr)->dscp1 << 2) | (ptr)->dscp2)

#define FLOW_LABEL_V6 ( ptr ) (((ptr->flow_label1) << 16) | ptr->flow_label2)

#define MAX_TCP_OPTION_INDEX 15U

The largest index that may be used to identify one TCP option

#define ROHC_PACKET_TYPE_IR 0xFD

#define ROHC_PACKET_TYPE_IR_DYN 0xF8

#define ROHC_TCP_OPTS_MAX 15U

The maximum of TCP options.

One TCP header may contain up to 40 bytes of options, so it may contain up 40 1-byte options, so the ROHC (de)compressors should expect such TCP packets. However the m field in the compressed list of TCP options (see RFC 6846, section 6.3.3 for more details) cannot be larger than 15, so restrict the number of TCP options that value. One TCP packet with more than 15 TCP options will be compressed with the IP-only profile.

#define RSF_FIN_ONLY 0x01

#define RSF_NONE 0x00

#define RSF_RST_ONLY 0x04

Define the RSF flags.

#define RSF_SYN_ONLY 0x02

#define TCP_INDEX_EOL 1

#define TCP_INDEX_MAXSEG 2

#define TCP_INDEX_NOP 0

#define TCP_INDEX_SACK 6

#define TCP_INDEX_SACK_PERMITTED 5

#define TCP_INDEX_TIMESTAMP 4

#define TCP_INDEX_WINDOW 3

#define TCP_OLEN_MAXSEG 4

#define TCP_OLEN_SACK_PERMITTED 2

#define TCP_OLEN_TIMESTAMP 10

#define TCP_OLEN_TSTAMP_APPA (TCP_OLEN_TIMESTAMP + 2) /* appendix A */

#define TCP_OLEN_WINDOW 3

#define TCP_OPT_EOL 0

Define the TCP options.

#define TCP_OPT_MAXSEG 2

#define TCP_OPT_NOP 1

#define TCP_OPT_SACK 5 /* Experimental */

#define TCP_OPT_SACK_PERMITTED 4 /* Experimental */

#define TCP_OPT_TIMESTAMP 8

#define TCP_OPT_TSTAMP_HDR (TCP_OPT_NOP << 24 | TCP_OPT_NOP << 16 | TCP_OPT_TIMESTAMP << 8 | TCP_OLEN_TIMESTAMP)

#define TCP_OPT_WINDOW 3

Typedef Documentation

typedef struct base_header_ip_v4 base_header_ip_v4_t

Define the IPv4 header.

See RFC4996 page 77

typedef struct base_header_ip_v6 base_header_ip_v6_t

Define the IP v6 header.

See RFC4996 page 78

typedef struct base_header_ip_vx base_header_ip_vx_t

Define the common IP v4/v6 header.

typedef struct co_common co_common_t

Define the Common compressed packet format.

See RFC4996 page 80/81

typedef struct ip_ah_opt_dynamic ip_ah_opt_dynamic_t

Define the dynamic part of IPv6 Authentication option header.

typedef struct ip_ah_opt_static ip_ah_opt_static_t

Define the static part of IPv6 Authentication option header.

typedef struct ip_ah_opt ip_ah_opt_t

Define the IPv6 Authentication option header.

typedef struct ip_dest_opt_dynamic ip_dest_opt_dynamic_t

Define the dynamic part of IPv6 Destination option header.

typedef struct ip_dest_opt_static ip_dest_opt_static_t

Define the static part of IPv6 Destination option header.

typedef struct ip_dest_opt ip_dest_opt_t

Define the IPv6 Destination options header.

typedef struct ip_gre_opt_static ip_gre_opt_static_t

Define the static part of IPv6 GRE option header.

typedef struct ip_gre_opt ip_gre_opt_t

Define the IPv6 GRE option header.

See RFC5225 page 55

typedef struct ip_hop_opt_dynamic ip_hop_opt_dynamic_t

Define the dynamic part of IPv6 Hop-by-Hop option header.

typedef struct ip_hop_opt_static ip_hop_opt_static_t

Define the static part of IPv6 Hop-by-Hop option header.

typedef struct ip_hop_opt ip_hop_opt_t

Define the IPv6 Hop-by-Hop option header.

typedef struct ip_mime_opt_static ip_mime_opt_static_t

Define the static part of IPv6 MIME option header.

typedef struct ip_mime_opt ip_mime_opt_t

Define the IPv6 MIME option header.

typedef struct ip_opt_dynamic ip_opt_dynamic_t

Define the dynamic part of IPv6 option header.

typedef struct ip_opt_static ip_opt_static_t

Define the static part of IPv6 option header.

typedef struct ip_rout_opt_static ip_rout_opt_static_t

Define the static part of IPv6 Routing option header.

typedef struct ip_rout_opt ip_rout_opt_t

Define the IPv6 Routing option header.

typedef struct ipv4_dynamic1 ipv4_dynamic1_t

Define the IP v4 dynamic part without ip_id.

See RFC4996 page 62

typedef struct ipv4_dynamic2 ipv4_dynamic2_t

Define the IP v4 dynamic part with ip_id field.

See RFC4996 page 62

typedef struct ipv4_replicate ipv4_replicate_t

Define the IP v4 replicate part.

See RFC4996 page 63

typedef struct ipv4_static ipv4_static_t

Define the IP v4 static part.

See RFC4996 page 62

typedef struct ipv6_dynamic ipv6_dynamic_t

Define the IP v6 dynamic part.

See RFC4996 page 59

typedef struct ipv6_extension ipv6_extension_t

Define the IP v6 extension.

typedef struct ipv6_opt ipv6_opt_t

Define the IPv6 option header.

typedef struct ipv6_replicate1 ipv6_replicate1_t

Define the IP v6 replicate part, flow_label encoded with 5 bits.

See RFC4996 page 59

typedef struct ipv6_replicate2 ipv6_replicate2_t

Define the IP v6 replicate part, flow_label encoded with 21 bits.

See RFC4996 page 59

typedef struct ipv6_static1 ipv6_static1_t

Define the IP v6 static part, null flow_label encoded with 1 bit.

See RFC4996 page 58

typedef struct ipv6_static2 ipv6_static2_t

Define the IP v6 static part, flow_label encoded with 1+20 bits.

See RFC4996 page 59

typedef struct rnd_1 rnd_1_t

Define the rnd_1 compressed packet format.

Send LSBs of sequence number See RFC4996 page 81

typedef struct rnd_2 rnd_2_t

Define the rnd_2 compressed packet format.

Send scaled sequence number LSBs See RFC4996 page 81

typedef struct rnd_3 rnd_3_t

Define the rnd_3 compressed packet format.

Send acknowlegment number LSBs See RFC4996 page 81

typedef struct rnd_4 rnd_4_t

Define the rnd_4 compressed packet format.

Send acknowlegment number scaled See RFC4996 page 81

typedef struct rnd_5 rnd_5_t

Define the rnd_5 compressed packet format.

Send ACK and sequence number See RFC4996 page 82

typedef struct rnd_6 rnd_6_t

Define the rnd_6 compressed packet format.

Send both ACK and scaled sequence number LSBs See RFC4996 page 82

typedef struct rnd_7 rnd_7_t

Define the rnd_7 compressed packet format.

Send ACK and window See RFC4996 page 82

typedef struct rnd_8 rnd_8_t

Define the rnd_8 compressed packet format.

Can send LSBs of TTL, RSF flags, change ECN behavior and options list See RFC4996 page 82

typedef struct seq_1 seq_1_t

Define the seq_1 compressed packet format.

Send LSBs of sequence number See RFC4996 page 83

typedef struct seq_2 seq_2_t

Define the seq_2 compressed packet format.

Send scaled sequence number LSBs See RFC4996 page 83

typedef struct seq_3 seq_3_t

Define the seq_3 compressed packet format.

Send acknowledgment number LSBs See RFC4996 page 83

typedef struct seq_4 seq_4_t

Define the seq_4 compressed packet format.

Send scaled acknowledgment number scaled See RFC4996 page 84

typedef struct seq_5 seq_5_t

Define the seq_5 compressed packet format.

Send ACK and sequence number See RFC4996 page 84

typedef struct seq_6 seq_6_t

Define the seq_6 compressed packet format.

Send both ACK and scaled sequence number LSBs See RFC4996 page 84

typedef struct seq_7 seq_7_t

Define the seq_7 compressed packet format.

Send ACK and window See RFC4996 page 85

typedef struct seq_8 seq_8_t

Define the seq_8 compressed packet format.

Can send LSBs of TTL, RSF flags, change ECN behavior, and options list See RFC4996 page 85

typedef struct tcp_dynamic tcp_dynamic_t

Define the TCP dynamic part.

See RFC4996 page 73/74

typedef struct tcp_replicate tcp_replicate_t

Define the TCP replicate part.

See RFC4996 page 74/75

typedef struct tcp_static tcp_static_t

Define the TCP static part.

See RFC4996 page 73/74

typedef struct tcphdr tcphdr_t

Define the TCP header.

See RFC4996 page 72/73

Enumeration Type Documentation

enum tcp_ip_id_behavior_t

The different IP-ID behaviors

Enumerator:

IP_ID_BEHAVIOR_SEQ	IP-ID increases
IP_ID_BEHAVIOR_SEQ_SWAP	IP-ID increases in little endian
IP_ID_BEHAVIOR_RAND	IP-ID is random
IP_ID_BEHAVIOR_ZERO	IP-ID is constant zero

Data Structures

Defines

Typedefs

Enumerations

Detailed Description

Define Documentation

Typedef Documentation

Enumeration Type Documentation
