ROHC generic list compression. More...

#include "schemes/comp_list.h"
#include "rohc_comp_internals.h"
#include <string.h>

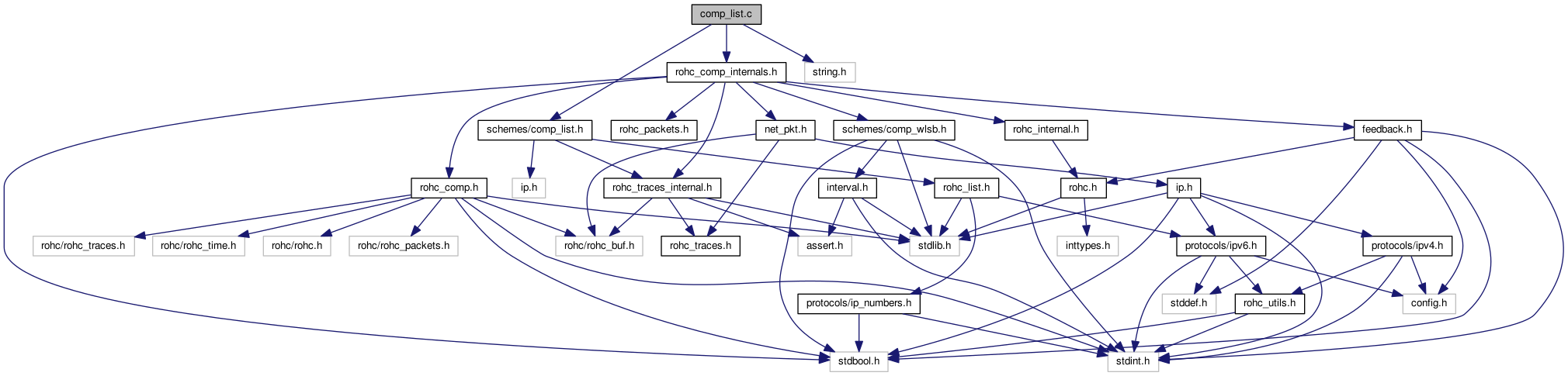

Include dependency graph for comp_list.c:

Macros
#define	rohc_comp_list_warn(list_ctxt, format, ...)

Functions
static bool	build_ipv6_ext_pkt_list (struct list_comp const comp, const struct ip_packet const ip, struct rohc_list *const pkt_list)
	Compute the list of extension headers for the current packet. More...

static unsigned int	rohc_list_get_nearest_list (const struct list_comp const comp, const struct rohc_list const pkt_list, bool *const is_new_list)
	Search the nearest list for the packet list. More...

static int	rohc_list_decide_type (struct list_comp *const comp)
	Decide the encoding type for compression list. More...

static int	rohc_list_encode_type_0 (struct list_comp const comp, uint8_t const dest, int counter)
	Build encoding type 0 for list compression. More...

static int	rohc_list_encode_type_1 (struct list_comp const comp, uint8_t const dest, int counter)
	Build encoding type 1 for list compression. More...

static int	rohc_list_encode_type_2 (struct list_comp const comp, uint8_t const dest, int counter)
	Build encoding type 2 for list compression. More...

static int	rohc_list_encode_type_3 (struct list_comp const comp, uint8_t const dest, int counter)
	Build encoding type 3 for list compression. More...

static size_t	rohc_list_compute_ins_mask (const struct list_comp const comp, const struct rohc_list const ref_list, const struct rohc_list const cur_list, const uint8_t rem_mask[ROHC_LIST_ITEMS_MAX], uint8_t ins_mask[ROHC_LIST_ITEMS_MAX], uint8_t const rohc_data, const size_t rohc_max_len)
	Determine the insertion bit mask. More...

static size_t	rohc_list_compute_rem_mask (const struct list_comp const comp, const struct rohc_list const ref_list, const struct rohc_list const cur_list, uint8_t rem_mask[ROHC_LIST_ITEMS_MAX], uint8_t const rohc_data, const size_t rohc_max_len)
	Determine the removal bit mask. More...

static uint8_t	rohc_list_compute_ps (const struct list_comp const comp, const struct rohc_list const list, const uint8_t mask[ROHC_LIST_ITEMS_MAX], const size_t m)
	Determine whether we should use 4-bit or 8-bit indexes. More...

static int	rohc_list_build_XIs (const struct list_comp const comp, const struct rohc_list const list, const uint8_t mask[ROHC_LIST_ITEMS_MAX], const size_t ps, uint8_t const rohc_data, const size_t rohc_max_len, uint8_t const first_4b_xi)
	Build the list of indexes (XI) More...

static int	rohc_list_build_XIs_8 (const struct list_comp const comp, const struct rohc_list const list, const uint8_t mask[ROHC_LIST_ITEMS_MAX], uint8_t *const rohc_data, const size_t rohc_max_len)
	Build the list of 8-bit indexes (XI) More...

static int	rohc_list_build_XIs_4 (const struct list_comp const comp, const struct rohc_list const list, const uint8_t mask[ROHC_LIST_ITEMS_MAX], uint8_t const rohc_data, const size_t rohc_max_len, uint8_t const first_4b_xi)
	Build the list of 4-bit indexes (XI) More...

bool	detect_ipv6_ext_changes (struct list_comp const comp, const struct ip_packet const ip, bool const list_struct_changed, bool const list_content_changed)
	Detect changes within the list of IPv6 extension headers. More...

int	rohc_list_encode (struct list_comp const comp, uint8_t const dest, int counter)
	Generic encoding of compressed list. More...

void	rohc_list_update_context (struct list_comp *const comp)
	Update the list compression context. More...

Detailed Description

ROHC generic list compression.

Author: Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

#define rohc_comp_list_warn	(	list_ctxt,
		format,
		...
	)

Value:

rohc_warning(list_ctxt, ROHC_TRACE_COMP, (list_ctxt)->profile_id, \

format, ##__VA_ARGS__)

ROHC_TRACE_COMP

Definition: rohc_traces.h:83

rohc_warning

#define rohc_warning(entity_struct, entity, profile, format,...)

Definition: rohc_traces_internal.h:71

Print a warning trace for the given list compression context

Function Documentation

static bool build_ipv6_ext_pkt_list	(	struct list_comp *const	comp,
		const struct ip_packet *const	ip,
		struct rohc_list *const	pkt_list
	)

static

Compute the list of extension headers for the current packet.

Parse all extension headers:

update the related entries in the translation table,
create the list for the packet

Parameters

	comp	The list compressor
	ip	The IP packet to compress
[out]	pkt_list	The list of extension headers for the current packet

Returns: true if no error occurred, false if one error occurred

bool detect_ipv6_ext_changes	(	struct list_comp *const	comp,
		const struct ip_packet *const	ip,
		bool *const	list_struct_changed,
		bool *const	list_content_changed
	)

Detect changes within the list of IPv6 extension headers.

Parameters

	comp	The list compressor
	ip	The IP packet to compress
[out]	list_struct_changed	Whether the structure of the list changed
[out]	list_content_changed	Whether the content of the list changed

Returns: true if no error occurred, false if one error occurred

static int rohc_list_build_XIs	(	const struct list_comp *const	comp,
		const struct rohc_list *const	list,
		const uint8_t	mask[ROHC_LIST_ITEMS_MAX],
		const size_t	ps,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len,
		uint8_t *const	first_4b_xi
	)

static

Build the list of indexes (XI)

Parameters

comp	The list compressor
list	The current list to get the indexes size for
mask	The insertion mask for the current list
ps	The size of the indexes: 1 for 8-bit XI, 0 for 4-bit XI
rohc_data	The ROHC packet being built
rohc_max_len	The max remaining length in the ROHC buffer
first_4b_xi	The first 4-bit XI item

Returns: The length of the XI items in case of success, -1 in case of failure

static int rohc_list_build_XIs_4	(	const struct list_comp *const	comp,
		const struct rohc_list *const	list,
		const uint8_t	mask[ROHC_LIST_ITEMS_MAX],
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len,
		uint8_t *const	first_4b_xi
	)

static

Build the list of 4-bit indexes (XI)

Parameters

comp	The list compressor
list	The current list to get the indexes size for
mask	The insertion mask for the current list
rohc_data	The ROHC packet being built
rohc_max_len	The max remaining length in the ROHC buffer
first_4b_xi	The first 4-bit XI item

Returns: The length of the XI items in case of success, -1 in case of failure

static int rohc_list_build_XIs_8	(	const struct list_comp *const	comp,
		const struct rohc_list *const	list,
		const uint8_t	mask[ROHC_LIST_ITEMS_MAX],
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the list of 8-bit indexes (XI)

Parameters

comp	The list compressor
list	The current list to get the indexes size for
mask	The insertion mask for the current list
rohc_data	The ROHC packet being built
rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length of the XI items in case of success, -1 in case of failure

static size_t rohc_list_compute_ins_mask	(	const struct list_comp *const	comp,
		const struct rohc_list *const	ref_list,
		const struct rohc_list *const	cur_list,
		const uint8_t	rem_mask[ROHC_LIST_ITEMS_MAX],
		uint8_t	ins_mask[ROHC_LIST_ITEMS_MAX],
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Determine the insertion bit mask.

Parameters

	comp	The list compressor
	ref_list	The reference list
	cur_list	The current list to create the insertion mask for
	rem_mask	The removal mask for the list
[out]	ins_mask	The insertion mask for the list
	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length of the insertion mask in case of success, 0 in case of failure

static uint8_t rohc_list_compute_ps	(	const struct list_comp *const	comp,
		const struct rohc_list *const	list,
		const uint8_t	mask[ROHC_LIST_ITEMS_MAX],
		const size_t	m
	)

static

Determine whether we should use 4-bit or 8-bit indexes.

Parameters

comp	The list compressor
list	The list to get the indexes size for
mask	The insertion mask for the list
m	The number of elements in current list

Returns: 0 for 4-bit indexes, 1 for 8-bit indexes, 2 for error

static size_t rohc_list_compute_rem_mask	(	const struct list_comp *const	comp,
		const struct rohc_list *const	ref_list,
		const struct rohc_list *const	cur_list,
		uint8_t	rem_mask[ROHC_LIST_ITEMS_MAX],
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Determine the removal bit mask.

Parameters

	comp	The list compressor
	ref_list	The reference list
	cur_list	The current list to create the removal mask for
[out]	rem_mask	The removal mask for the list
	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length of the removal mask in case of success, 0 in case of failure

static int rohc_list_decide_type ( struct list_comp *const comp )

static

Decide the encoding type for compression list.

Parameters

comp	The list compressor

Returns: the encoding type among [0-3]

int rohc_list_encode	(	struct list_comp *const	comp,
		uint8_t *const	dest,
		int	counter
	)

Generic encoding of compressed list.

Parameters

comp	The list compressor
dest	The ROHC packet under build
counter	The current position in the rohc-packet-under-build buffer

Returns: The new position in the rohc-packet-under-build buffer, -1 in case of error

static int rohc_list_encode_type_0	(	struct list_comp *const	comp,
		uint8_t *const	dest,
		int	counter
	)

static

Build encoding type 0 for list compression.

 Encoding type 0 (5.8.6.1):

      0   1   2   3   4   5   6   7
     --- --- --- --- --- --- --- ---
 1  | ET = 0| GP| PS|   CC = m      |
    +---+---+---+---+---+---+---+---+
 2  :            gen_id             : 1 octet, if GP = 1
    +---+---+---+---+---+---+---+---+
    |       XI 1, ..., XI m         | m octets, or m * 4 bits
 3  /               --- --- --- --- /
    |               :    Padding    : if PS = 0 and m is odd
    +---+---+---+---+---+---+---+---+
    |                               |
 4  /      item 1, ..., item n      / variable length
    |                               |
    +---+---+---+---+---+---+---+---+

 ET: Encoding type is zero.

 GP: Indicates presence of gen_id field.

 PS: Indicates size of XI fields:
     PS = 0 indicates 4-bit XI fields;
     PS = 1 indicates 8-bit XI fields.

 CC: CSRC counter from original RTP header.

 gen_id: Identifier for a sequence of identical lists.  It is
     present in U/O-mode when the compressor decides that it may use
     this list as a future reference list.

 XI 1, ..., XI m: m XI items. The format of an XI item is as
     follows:

              +---+---+---+---+
     PS = 0:  | X |   Index   |
              +---+---+---+---+

                0   1   2   3   4   5   6   7
              +---+---+---+---+---+---+---+---+
     PS = 1:  | X |           Index           |
              +---+---+---+---+---+---+---+---+

     X = 1 indicates that the item corresponding to the Index
           is sent in the item 0, ..., item n list.
     X = 0 indicates that the item corresponding to the Index is
               not sent.

     When 4-bit XI items are used and m > 1, the XI items are placed in
     octets in the following manner:

          0   1   2   3   4   5   6   7
        +---+---+---+---+---+---+---+---+
        |     XI k      |    XI k + 1   |
        +---+---+---+---+---+---+---+---+

 Padding: A 4-bit padding field is present when PS = 0 and m is
     odd.  The Padding field is set to zero when sending and ignored
     when receiving.

 Item 1, ..., item n:
     Each item corresponds to an XI with X = 1 in XI 1, ..., XI m.

Parameters

comp	The list compressor
dest	The ROHC packet under build
counter	The current position in the rohc-packet-under-build buffer

Returns: The new position in the rohc-packet-under-build buffer, -1 in case of error

static int rohc_list_encode_type_1	(	struct list_comp *const	comp,
		uint8_t *const	dest,
		int	counter
	)

static

Build encoding type 1 for list compression.

 Encoding type 1 (5.8.6.2):

      0   1   2   3   4   5   6   7
     --- --- --- --- --- --- --- ---
 1  | ET = 1| GP| PS|     XI 1      |
    +---+---+---+---+---+---+---+---+
 2  :            gen_id             : 1 octet, if GP = 1
    +---+---+---+---+---+---+---+---+
 3  |            ref_id             |
    +---+---+---+---+---+---+---+---+
 4  /       insertion bit mask      / 1-2 octets
    +---+---+---+---+---+---+---+---+
    |           XI list             | k octets, or (k - 1) * 4 bits
 5  /               --- --- --- --- /
    |               :    Padding    : if PS = 0 and k is even
    +---+---+---+---+---+---+---+---+
    |                               |
 6  /      item 1, ..., item n      / variable
    |                               |
    +---+---+---+---+---+---+---+---+

 ET: Encoding type is one (1).

 GP: Indicates presence of gen_id field.

 PS: Indicates size of XI fields:
     PS = 0 indicates 4-bit XI fields;
     PS = 1 indicates 8-bit XI fields.

 XI 1: When PS = 0, the first 4-bit XI item is placed here.
       When PS = 1, the field is set to zero when sending, and
       ignored when receiving.

 ref_id: The identifier of the reference CSRC list used when the
       list was compressed.  It is the 8 least significant bits of
       the RTP Sequence Number in R-mode and gen_id (see section
       5.8.2) in U/O-mode.

 insertion bit mask: Bit mask indicating the positions where new
           items are to be inserted.  See Insertion Only scheme in
           section 5.8.3.  The bit mask can have either of the
           following two formats:

      0   1   2   3   4   5   6   7
    +---+---+---+---+---+---+---+---+
    | 0 |        7-bit mask         |  bit 1 is the first bit
    +---+---+---+---+---+---+---+---+

    +---+---+---+---+---+---+---+---+
    | 1 |                           |  bit 1 is the first bit
    +---+      15-bit mask          +
    |                               |  bit 7 is the last bit
    +---+---+---+---+---+---+---+---+

 XI list: XI fields for items to be inserted.  When the insertion
    bit mask has k ones, the total number of XI fields is k.  When
    PS = 1, all XI fields are in the XI list.  When PS = 0, the
    first XI field is in the XI 1 field, and the remaining k - 1
    XI fields are in the XI list.

 Padding: Present when PS = 0 and k is even.

 item 1, ..., item n: One item for each XI field with the X bit set.

Parameters

comp	The list compressor
dest	The ROHC packet under build
counter	The current position in the rohc-packet-under-build buffer

Returns: The new position in the rohc-packet-under-build buffer, -1 in case of error

static int rohc_list_encode_type_2	(	struct list_comp *const	comp,
		uint8_t *const	dest,
		int	counter
	)

static

Build encoding type 2 for list compression.

 Encoding type 2 (5.8.6.3):

      0   1   2   3   4   5   6   7
    +---+---+---+---+---+---+---+---+
 1  | ET = 2| GP|res|    Count      |
    +---+---+---+---+---+---+---+---+
 2  :            gen_id             : 1 octet, if GP = 1
    +---+---+---+---+---+---+---+---+
 3  |            ref_id             |
    +---+---+---+---+---+---+---+---+
 4  /        removal bit mask       / 1-2 octets
    +---+---+---+---+---+---+---+---+

 ET: Encoding type is 2.

 GP: Indicates presence of gen_id field.

 res: Reserved.  Set to zero when sending, ignored when
      received.

 Count: Number of elements in ref_list.

 removal bit mask: Indicates the elements in ref_list to be
    removed in order to obtain the current list.  See section
    5.8.3.  The bit mask can have either of the following two
    formats:

      0   1   2   3   4   5   6   7
    +---+---+---+---+---+---+---+---+
    | 0 |        7-bit mask         |  bit 1 is the first bit
    +---+---+---+---+---+---+---+---+

    +---+---+---+---+---+---+---+---+
    | 1 |                           |  bit 1 is the first bit
    +---+      15-bit mask          +
    |                               |  bit 7 is the last bit
    +---+---+---+---+---+---+---+---+

Parameters

comp	The list compressor
dest	The ROHC packet under build
counter	The current position in the rohc-packet-under-build buffer

Returns: The new position in the rohc-packet-under-build buffer, -1 in case of error

static int rohc_list_encode_type_3	(	struct list_comp *const	comp,
		uint8_t *const	dest,
		int	counter
	)

static

Build encoding type 3 for list compression.

 Encoding type 3 (5.8.6.4):

      0   1   2   3   4   5   6   7
    +---+---+---+---+---+---+---+---+
 1  | ET=3  |GP |PS |     XI 1      |
    +---+---+---+---+---+---+---+---+
 2  :            gen_id             : 1 octet, if GP = 1
    +---+---+---+---+---+---+---+---+
 3  |            ref_id             |
    +---+---+---+---+---+---+---+---+
 4  /        removal bit mask       / 1-2 octets
    +---+---+---+---+---+---+---+---+
 5  /       insertion bit mask      / 1-2 octets
    +---+---+---+---+---+---+---+---+
    |           XI list             | k octets, or (k - 1) * 4 bits
 6  /               --- --- --- --- /
    |               :    Padding    : if PS = 0 and k is even
    +---+---+---+---+---+---+---+---+
    |                               |
 7  /      item 1, ..., item n      / variable
    |                               |
    +---+---+---+---+---+---+---+---+

 ET: Encoding type is 3.

 GP: Indicates presence of gen_id field.

 PS: Indicates size of XI fields:
     PS = 0 indicates 4-bit XI fields;
     PS = 1 indicates 8-bit XI fields.

 gen_id: Identifier for a sequence of identical lists.  It is
     present in U/O-mode when the compressor decides that it may use
     this list as a future reference list.

 ref_id: The identifier of the reference CSRC list used when the
       list was compressed.  It is the 8 least significant bits of
       the RTP Sequence Number in R-mode and gen_id (see section
       5.8.2) in U/O-mode.

 removal bit mask: Indicates the elements in ref_list to be
    removed in order to obtain the current list.  See section
    5.8.3.  The bit mask can have either of the following two
    formats:

      0   1   2   3   4   5   6   7
    +---+---+---+---+---+---+---+---+
    | 0 |        7-bit mask         |  bit 1 is the first bit
    +---+---+---+---+---+---+---+---+

    +---+---+---+---+---+---+---+---+
    | 1 |                           |  bit 1 is the first bit
    +---+      15-bit mask          +
    |                               |  bit 7 is the last bit
    +---+---+---+---+---+---+---+---+

 insertion bit mask: Bit mask indicating the positions where new
           items are to be inserted.  See Insertion Only scheme in
           section 5.8.3.  The bit mask can have either of the
           following two formats:

      0   1   2   3   4   5   6   7
    +---+---+---+---+---+---+---+---+
    | 0 |        7-bit mask         |  bit 1 is the first bit
    +---+---+---+---+---+---+---+---+

    +---+---+---+---+---+---+---+---+
    | 1 |                           |  bit 1 is the first bit
    +---+      15-bit mask          +
    |                               |  bit 7 is the last bit
    +---+---+---+---+---+---+---+---+

 XI list: XI fields for items to be inserted.  When the insertion
    bit mask has k ones, the total number of XI fields is k.  When
    PS = 1, all XI fields are in the XI list.  When PS = 0, the
    first XI field is in the XI 1 field, and the remaining k - 1
    XI fields are in the XI list.

 Padding: Present when PS = 0 and k is even.

 item 1, ..., item n: One item for each XI field with the X bit set.

Parameters

comp	The list compressor
dest	The ROHC packet under build
counter	The current position in the rohc-packet-under-build buffer

Returns: The new position in the rohc-packet-under-build buffer, -1 in case of error

static unsigned int rohc_list_get_nearest_list	(	const struct list_comp *const	comp,
		const struct rohc_list *const	pkt_list,
		bool *const	is_new_list
	)

static

Search the nearest list for the packet list.

Search for a context list with the same structure:

check the reference list first as it is probably the correct one,
then check the other identified lists,
finally, use an anonymous list or promote the repeated anonymous list to an identified list.

Parameters

	comp	The list compressor
	pkt_list	The list of extension headers for the current packet
[out]	is_new_list	Whether the list is new or not

Returns: The list to use as a base to transmit the packet list

void rohc_list_update_context ( struct list_comp *const comp )

Update the list compression context.

Update the counter of the current list. Update the counters of the items of the current list. Update the reference list with the current list if possible.

Parameters

comp	The list compressor

Macros

Functions

Detailed Description

Macro Definition Documentation

Function Documentation
