ROHC compression context for the UDP profile. More...

#include "c_udp.h"
#include "c_ip.h"
#include "rohc_traces.h"
#include "rohc_packets.h"
#include "crc.h"
#include "config.h"
#include <stdlib.h>
#include <string.h>

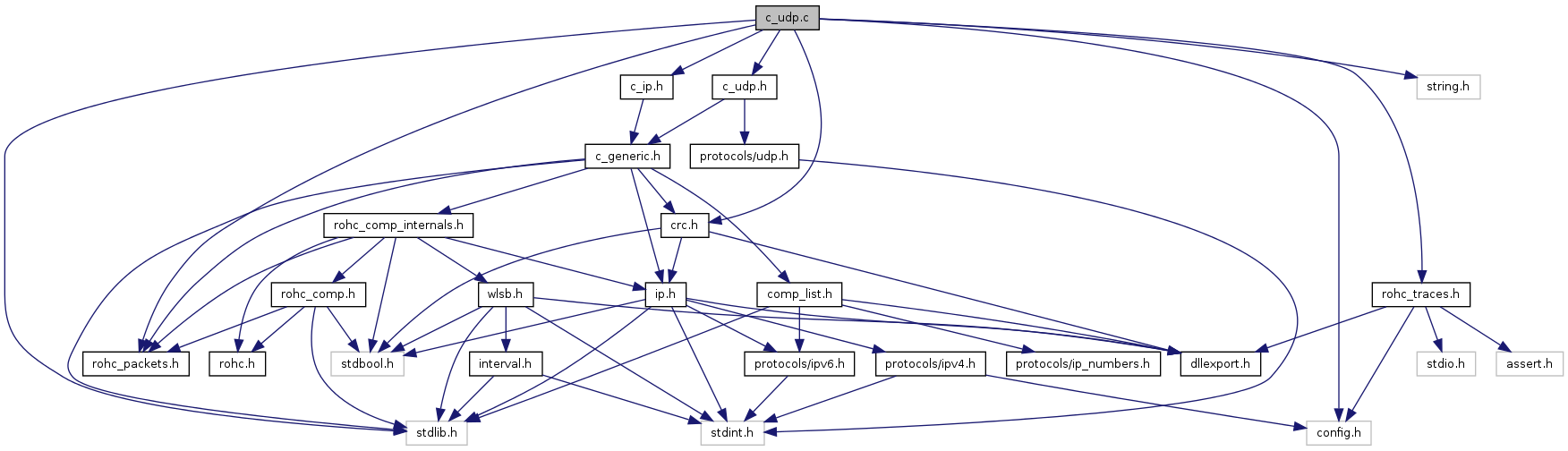

Include dependency graph for c_udp.c:

Functions
int	udp_code_dynamic_udp_part (const struct c_context context, const unsigned char next_header, unsigned char *const dest, int counter)
	Build the dynamic part of the UDP header.
int	udp_changed_udp_dynamic (const struct c_context context, const struct udphdr udp)
	Check if the dynamic part of the UDP header changed.
int	c_udp_create (struct c_context const context, const struct ip_packet ip)
	Create a new UDP context and initialize it thanks to the given IP/UDP packet.
int	c_udp_check_context (const struct c_context context, const struct ip_packet ip)
	Check if the IP/UDP packet belongs to the context.
int	c_udp_encode (struct c_context const context, const struct ip_packet ip, const int packet_size, unsigned char const dest, const int dest_size, rohc_packet_t const packet_type, int *const payload_offset)
	Encode an IP/UDP packet according to a pattern decided by several different factors.
void	udp_decide_state (struct c_context *const context)
	Decide the state that should be used for the next packet compressed with the ROHC UDP profile.
int	udp_code_uo_remainder (const struct c_context context, const unsigned char next_header, unsigned char *const dest, int counter)
	Build UDP-related fields in the tail of the UO packets.
int	udp_code_static_udp_part (const struct c_context context, const unsigned char next_header, unsigned char *const dest, int counter)
	Build the static part of the UDP header.
Variables
struct c_profile	c_udp_profile
	Define the compression part of the UDP profile as described in the RFC 3095.

Detailed Description

ROHC compression context for the UDP profile.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; The hackers from ROHC for Linux

Function Documentation

int c_udp_check_context	(	const struct c_context *	context,
		const struct ip_packet *	ip
	)

Check if the IP/UDP packet belongs to the context.

Conditions are:

the number of IP headers must be the same as in context
IP version of the two IP headers must be the same as in context
IP packets must not be fragmented
the source and destination addresses of the two IP headers must match the ones in the context
the transport protocol must be UDP
the source and destination ports of the UDP header must match the ones in the context
IPv6 only: the Flow Label of the two IP headers must match the ones the context

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
ip	The IP/UDP packet to check

Returns:: 1 if the IP/UDP packet belongs to the context, 0 if it does not belong to the context and -1 if the profile cannot compress it or an error occurs

References ipv4_hdr::daddr, udphdr::dest, ip_header_info::info, c_generic_context::ip2_flags, ipv6_hdr::ip6_dst, ipv6_hdr::ip6_src, c_generic_context::ip_flags, ip_get_inner_packet(), ip_get_next_layer(), ip_get_protocol(), ip_get_version(), IPV4, ipv4_get_daddr(), ipv4_get_saddr(), IPV6, IPV6_ADDR_CMP, ipv6_get_daddr(), IPV6_GET_FLOW_LABEL, ipv6_get_flow_label(), ipv6_get_saddr(), c_generic_context::is_ip2_initialized, ipv4_header_info::old_ip, ipv6_header_info::old_ip, sc_udp_context::old_udp, rohc_debugf, ROHC_IPPROTO_IPIP, ROHC_IPPROTO_IPV6, ROHC_IPPROTO_UDP, ipv4_hdr::saddr, udphdr::source, c_context::specific, c_generic_context::specific, ip_header_info::v4, ip_header_info::v6, version, and ip_header_info::version.

Referenced by c_rtp_check_context().

int c_udp_create	(	struct c_context *const	context,
		const struct ip_packet *	ip
	)

Create a new UDP context and initialize it thanks to the given IP/UDP packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters:

context	The compression context
ip	The IP/UDP packet given to initialize the new context

Returns:: 1 if successful, 0 otherwise

int c_udp_encode	(	struct c_context *const	context,
		const struct ip_packet *	ip,
		const int	packet_size,
		unsigned char *const	dest,
		const int	dest_size,
		rohc_packet_t *const	packet_type,
		int *const	payload_offset
	)

Encode an IP/UDP packet according to a pattern decided by several different factors.

Parameters:

context	The compression context
ip	The IP packet to encode
packet_size	The length of the IP packet to encode
dest	The rohc-packet-under-build buffer
dest_size	The length of the rohc-packet-under-build buffer
packet_type	OUT: The type of ROHC packet that is created
payload_offset	The offset for the payload in the IP packet

Returns:: The length of the created ROHC packet or -1 in case of failure

References c_generic_encode(), ip_get_inner_packet(), ip_get_next_layer(), ip_get_protocol(), sc_udp_context::old_udp, PACKET_IR, PACKET_IR_DYN, generic_tmp_vars::packet_type, rohc_debugf, ROHC_IPPROTO_IPIP, ROHC_IPPROTO_IPV6, ROHC_IPPROTO_UDP, udp_tmp_vars::send_udp_dynamic, c_context::specific, c_generic_context::specific, sc_udp_context::tmp, c_generic_context::tmp, and udp_changed_udp_dynamic().

int udp_changed_udp_dynamic	(	const struct c_context *	context,
		const struct udphdr *	udp
	)

Check if the dynamic part of the UDP header changed.

Parameters:

context	The compression context
udp	The UDP header

Returns:: The number of UDP fields that changed

References udphdr::check, MAX_IR_COUNT, sc_udp_context::old_udp, c_context::specific, c_generic_context::specific, and sc_udp_context::udp_checksum_change_count.

Referenced by c_udp_encode().

int udp_code_dynamic_udp_part	(	const struct c_context *	context,
		const unsigned char *	next_header,
		unsigned char *const	dest,
		int	counter
	)

Build the dynamic part of the UDP header.


 Dynamic part of UDP header (5.7.7.5):

    +---+---+---+---+---+---+---+---+
 1  /           Checksum            /   2 octets
    +---+---+---+---+---+---+---+---+

Parameters:

context	The compression context
next_header	The UDP header
dest	The rohc-packet-under-build buffer
counter	The current position in the rohc-packet-under-build buffer

Returns:: The new position in the rohc-packet-under-build buffer

References udphdr::check, rohc_debugf, c_context::specific, c_generic_context::specific, and sc_udp_context::udp_checksum_change_count.

Referenced by c_udp_create().

int udp_code_static_udp_part	(	const struct c_context *	context,
		const unsigned char *	next_header,
		unsigned char *const	dest,
		int	counter
	)

Build the static part of the UDP header.


 Static part of UDP header (5.7.7.5):

    +---+---+---+---+---+---+---+---+
 1  /          Source Port          /   2 octets
    +---+---+---+---+---+---+---+---+
 2  /       Destination Port        /   2 octets
    +---+---+---+---+---+---+---+---+

Parameters:

context	The compression context
next_header	The UDP header
dest	The rohc-packet-under-build buffer
counter	The current position in the rohc-packet-under-build buffer

Returns:: The new position in the rohc-packet-under-build buffer

References udphdr::dest, rohc_debugf, and udphdr::source.

Referenced by c_udp_create(), c_udp_lite_create(), and rtp_code_static_rtp_part().

int udp_code_uo_remainder	(	const struct c_context *	context,
		const unsigned char *	next_header,
		unsigned char *const	dest,
		int	counter
	)

Build UDP-related fields in the tail of the UO packets.


     --- --- --- --- --- --- --- ---
    :                               :
 13 +         UDP Checksum          +  2 octets,
    :                               :  if context(UDP Checksum) != 0
     --- --- --- --- --- --- --- ---

Parameters:

context	The compression context
next_header	The UDP header
dest	The rohc-packet-under-build buffer
counter	The current position in the rohc-packet-under-build buffer

Returns:: The new position in the rohc-packet-under-build buffer

References udphdr::check, and rohc_debugf.

Referenced by c_rtp_create(), and c_udp_create().

void udp_decide_state ( struct c_context *const context )

Decide the state that should be used for the next packet compressed with the ROHC UDP profile.

The three states are:

Initialization and Refresh (IR),
First Order (FO),
Second Order (SO).

Parameters:

context The compression context

References change_state(), decide_state(), IR, rohc_debugf, udp_tmp_vars::send_udp_dynamic, c_context::specific, c_generic_context::specific, and sc_udp_context::tmp.

Referenced by c_udp_create().

Variable Documentation

struct c_profile c_udp_profile

Initial value:

{
        ROHC_IPPROTO_UDP,
        NULL,
        ROHC_PROFILE_UDP,
        "UDP / Compressor",
        c_udp_create,
        c_generic_destroy,
        c_udp_check_context,
        c_udp_encode,
        c_generic_feedback,
}

Define the compression part of the UDP profile as described in the RFC 3095.
