IP-agnostic packet. More...

#include "dllexport.h"
#include "protocols/ipv4.h"
#include "protocols/ipv6.h"
#include <stdlib.h>
#include <stdint.h>
#include <stdbool.h>

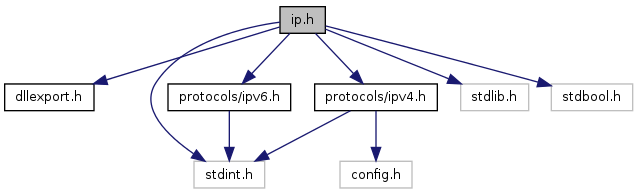

Include dependency graph for ip.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ip_packet
	Defines an IP-agnostic packet that can handle an IPv4 or IPv6 packet. More...
struct	ip6_ahhdr
Defines
#define	IPV6_EXT_HOP_BY_HOP 0
#define	IPV6_EXT_DESTINATION 60
#define	IPV6_EXT_ROUTING 43
#define	IPV6_EXT_AUTH 51
#define	IP_GET_16_SUBFIELD(field, bitmask, offset) ((rohc_ntoh16(field) & (bitmask)) >> (offset))
	Get a subpart of a 16-bit IP field.
#define	IP_GET_32_SUBFIELD(field, bitmask, offset) ((rohc_ntoh32(field) & (bitmask)) >> (offset))
	Get a subpart of a 32-bit IP field.
#define	IP_SET_16_SUBFIELD(field, bitmask, offset, value)
	Set a subpart of a 16-bit IP field.
#define	IP_SET_32_SUBFIELD(field, bitmask, offset, value)
	Set a subpart of a 32-bit IP field.
#define	IPV4_DF_OFFSET 14
	The offset for the DF flag in an ipv4_hdr->frag_off variable.
#define	IPV4_GET_DF(ip4) IP_GET_16_SUBFIELD((ip4).frag_off, IP_DF, IPV4_DF_OFFSET)
	Get the IPv4 Don't Fragment (DF) bit from an ipv4_hdr object.
#define	IPV4_SET_DF(ip4, value) IP_SET_16_SUBFIELD((ip4)->frag_off, IP_DF, IPV4_DF_OFFSET, (value))
	Set the IPv4 Don't Fragment (DF) bit in an ipv4_hdr object.
#define	IPV4_ADDR_FORMAT "%02x%02x%02x%02x (%u.%u.%u.%u)"
	The format to print an IPv4 address.
#define	IPV4_ADDR_RAW(x)
	The data to print an IPv4 address in raw format.
#define	IPV6_VERSION_MASK 0xf0000000
	The bitmask for the Version field in an ipv6_hdr->ip6_flow variable.
#define	IPV6_VERSION_OFFSET 28
	The offset for the Version field in an ipv6_hdr->ip6_flow variable.
#define	IPV6_TC_MASK 0x0ff00000
	The bitmask for the Traffic Class (TC) field in an ipv6_hdr->ip6_flow variable.
#define	IPV6_TC_OFFSET 20
	The offset for the Traffic Class (TC) field in an ipv6_hdr->ip6_flow variable.
#define	IPV6_FLOW_LABEL_MASK 0x000fffff
	The bitmask for the FLow Label field in an ipv6_hdr->ip6_flow variable.
#define	IPV6_GET_VERSION(ip6) IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET)
	Get the IPv6 Version 4-bit field from ipv6_hdr object.
#define	IPV6_SET_VERSION(ip6, value) IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET, (value))
	Set the IPv6 Version 4-bit field in an ipv6_hdr object.
#define	IPV6_GET_TC(ip6) IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET)
	Get the IPv6 Traffic Class (TC) byte from an ipv6_hdr object.
#define	IPV6_SET_TC(ip6, value) IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET, (value))
	Set the IPv6 Traffic Class (TC) byte in an ipv6_hdr object.
#define	IPV6_GET_FLOW_LABEL(ip6) IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_FLOW_LABEL_MASK, 0)
	Get the IPv6 Flow Label 20-bit field from an ipv6_hdr object.
#define	IPV6_SET_FLOW_LABEL(ip6, value) IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_FLOW_LABEL_MASK, 0, (value))
	Set the IPv6 Flow Label 20-bit field in an ipv6_hdr variable.
#define	IPV6_ADDR_FORMAT "%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x"
	The format to print an IPv6 address.
#define	IPV6_ADDR_IN6(x) IPV6_ADDR_RAW((x)->addr.u8)
	The data to print an IPv6 address in (struct ipv6_addr *) format.
#define	IPV6_ADDR_RAW(x)
	The data to print an IPv6 address in raw format.
#define	IPV6_ADDR_CMP(x, y)
	Compare two IPv6 addresses in (struct ipv6_addr *) format.
Enumerations
enum	ip_header_pos_t { ROHC_IP_HDR_NONE = 0, ROHC_IP_HDR_FIRST = 1, ROHC_IP_HDR_SECOND = 2 }
enum	ip_version { IPV4 = 4, IPV6 = 6, IP_UNKNOWN = 0, IPV4_MALFORMED = 1, IPV6_MALFORMED = 2 }
	IP version. More...
Functions
int ROHC_EXPORT	ip_create (struct ip_packet const ip, const unsigned char packet, const unsigned int size)
	Create an IP packet from raw data.
int ROHC_EXPORT	ip_get_inner_packet (const struct ip_packet const outer, struct ip_packet const inner)
	Get the inner IP packet (IP in IP)
const unsigned char *ROHC_EXPORT	ip_get_raw_data (const struct ip_packet *const ip)
	Get the IP raw data (header + payload)
unsigned char *ROHC_EXPORT	ip_get_next_header (const struct ip_packet const ip, uint8_t const type)
	Get the IP next header.
unsigned char *ROHC_EXPORT	ip_get_next_layer (const struct ip_packet *const ip)
	Get the next header (but skip IP extensions)
unsigned char *ROHC_EXPORT	ip_get_next_ext_from_ip (const struct ip_packet const ip, uint8_t const type)
	Get the next extension header of IPv6 packets from an IPv6 header.
unsigned char *ROHC_EXPORT	ip_get_next_ext_from_ext (const unsigned char const ext, uint8_t const type)
	Get the next extension header of IPv6 packets from another extension.
unsigned int ROHC_EXPORT	ip_get_totlen (const struct ip_packet *const ip)
	Get the total length of an IP packet.
unsigned int ROHC_EXPORT	ip_get_hdrlen (const struct ip_packet *const ip)
	Get the length of an IP header.
unsigned int ROHC_EXPORT	ip_get_plen (const struct ip_packet *const ip)
	Get the length of an IPv4/IPv6 payload.
int ROHC_EXPORT	ip_is_fragment (const struct ip_packet *const ip)
	Whether the IP packet is an IP fragment or not.
ip_version ROHC_EXPORT	ip_get_version (const struct ip_packet *const ip)
	Get the IP version of an IP packet.
unsigned int ROHC_EXPORT	ip_get_protocol (const struct ip_packet *const ip)
	Get the protocol transported by an IP packet.
unsigned int ROHC_EXPORT	ext_get_protocol (const unsigned char *const ext)
	Get the protocol transported by the last IPv6 extension.
unsigned int ROHC_EXPORT	ip_get_tos (const struct ip_packet *const ip)
	Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.
unsigned int ROHC_EXPORT	ip_get_ttl (const struct ip_packet *const ip)
	Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.
void ROHC_EXPORT	ip_set_version (struct ip_packet *const ip, const ip_version value)
	Set the IP version of an IP packet.
void ROHC_EXPORT	ip_set_protocol (struct ip_packet *const ip, const uint8_t value)
	Set the protocol transported by an IP packet.
void ROHC_EXPORT	ip_set_tos (struct ip_packet *const ip, const uint8_t value)
	Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.
void ROHC_EXPORT	ip_set_ttl (struct ip_packet *const ip, const uint8_t value)
	Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.
void ROHC_EXPORT	ip_set_saddr (struct ip_packet const ip, const unsigned char value)
	Set the Source Address of an IP packet.
void ROHC_EXPORT	ip_set_daddr (struct ip_packet const ip, const unsigned char value)
	Set the Destination Address of an IP packet.
struct ipv4_hdr *ROHC_EXPORT	ipv4_get_header (const struct ip_packet *const ip)
	Get the IPv4 header.
uint16_t ROHC_EXPORT	ipv4_get_id (const struct ip_packet *const ip)
	Get the IP-ID of an IPv4 packet.
uint16_t ROHC_EXPORT	ipv4_get_id_nbo (const struct ip_packet *const ip, const unsigned int nbo)
	Get the IP-ID of an IPv4 packet in Network Byte Order.
int ROHC_EXPORT	ipv4_get_df (const struct ip_packet *const ip)
	Get the Don't Fragment (DF) bit of an IPv4 packet.
uint32_t ROHC_EXPORT	ipv4_get_saddr (const struct ip_packet *const ip)
	Get the source address of an IPv4 packet.
uint32_t ROHC_EXPORT	ipv4_get_daddr (const struct ip_packet *const ip)
	Get the destination address of an IPv4 packet.
void ROHC_EXPORT	ipv4_set_id (struct ip_packet *const ip, const int value)
	Set the IP-ID of an IPv4 packet.
void ROHC_EXPORT	ipv4_set_df (struct ip_packet *const ip, const int value)
	Set the Don't Fragment (DF) bit of an IPv4 packet.
struct ipv6_hdr *ROHC_EXPORT	ipv6_get_header (const struct ip_packet *const ip)
	Get the IPv6 header.
uint32_t ROHC_EXPORT	ipv6_get_flow_label (const struct ip_packet *const ip)
	Get the flow label of an IPv6 packet.
struct ipv6_addr *ROHC_EXPORT	ipv6_get_saddr (const struct ip_packet *const ip)
	Get the source address of an IPv6 packet.
struct ipv6_addr *ROHC_EXPORT	ipv6_get_daddr (const struct ip_packet *const ip)
	Get the destination address of an IPv6 packet.
void ROHC_EXPORT	ipv6_set_flow_label (struct ip_packet *const ip, const uint32_t value)
	Set the flow label of an IPv6 packet.
unsigned short ROHC_EXPORT	ip_get_extension_size (const unsigned char *const ext)
	Get the size of an IPv6 extension.
unsigned short ROHC_EXPORT	ip_get_total_extension_size (const struct ip_packet *const ip)
	Get the size of the extension list.
int	get_ip_version (const unsigned char const packet, const unsigned int size, ip_version const version)

Detailed Description

IP-agnostic packet.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Define Documentation

#define IP_GET_16_SUBFIELD	(	field,
		bitmask,
		offset
	)	((rohc_ntoh16(field) & (bitmask)) >> (offset))

Get a subpart of a 16-bit IP field.

#define IP_GET_32_SUBFIELD	(	field,
		bitmask,
		offset
	)	((rohc_ntoh32(field) & (bitmask)) >> (offset))

Get a subpart of a 32-bit IP field.

#define IP_SET_16_SUBFIELD	(	field,
		bitmask,
		offset,
		value
	)

Value:

(field) = (((field) & rohc_hton16(~(bitmask))) | \
                   rohc_hton16(((value) << (offset)) & (bitmask)))

Set a subpart of a 16-bit IP field.

#define IP_SET_32_SUBFIELD	(	field,
		bitmask,
		offset,
		value
	)

Value:

(field) = (((field) & rohc_hton32(~(bitmask))) | \
                   rohc_hton32(((value) << (offset)) & (bitmask)))

Set a subpart of a 32-bit IP field.

#define IPV4_ADDR_FORMAT "%02x%02x%02x%02x (%u.%u.%u.%u)"

The format to print an IPv4 address.

Referenced by code_ipv4_static_part().

#define IPV4_ADDR_RAW ( x )

Value:

(x)[0], (x)[1], (x)[2], (x)[3], \
        (x)[0], (x)[1], (x)[2], (x)[3]

The data to print an IPv4 address in raw format.

Referenced by code_ipv4_static_part().

#define IPV4_DF_OFFSET 14

The offset for the DF flag in an ipv4_hdr->frag_off variable.

#define IPV4_GET_DF ( ip4 ) IP_GET_16_SUBFIELD((ip4).frag_off, IP_DF, IPV4_DF_OFFSET)

Get the IPv4 Don't Fragment (DF) bit from an ipv4_hdr object.

Referenced by changed_dynamic_one_hdr(), and ipv4_get_df().

#define IPV4_SET_DF	(	ip4,
		value
	)	IP_SET_16_SUBFIELD((ip4)->frag_off, IP_DF, IPV4_DF_OFFSET, (value))

Set the IPv4 Don't Fragment (DF) bit in an ipv4_hdr object.

Referenced by ipv4_set_df().

#define IPV6_ADDR_CMP	(	x,
		y
	)

Value:

((x)->addr.u32[0] == (y)->addr.u32[0] && \
         (x)->addr.u32[1] == (y)->addr.u32[1] && \
         (x)->addr.u32[2] == (y)->addr.u32[2] && \
         (x)->addr.u32[3] == (y)->addr.u32[3])

Compare two IPv6 addresses in (struct ipv6_addr *) format.

Referenced by c_udp_check_context().

#define IPV6_ADDR_FORMAT "%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x:%02x%02x"

The format to print an IPv6 address.

Referenced by code_ipv6_static_part().

#define IPV6_ADDR_IN6 ( x ) IPV6_ADDR_RAW((x)->addr.u8)

The data to print an IPv6 address in (struct ipv6_addr *) format.

Referenced by code_ipv6_static_part().

#define IPV6_ADDR_RAW ( x )

Value:

(x)[0], (x)[1], (x)[2], (x)[3], (x)[4], (x)[5], (x)[6], (x)[7], \
        (x)[8], (x)[9], (x)[10], (x)[11], (x)[12], (x)[13], (x)[14], (x)[15]

The data to print an IPv6 address in raw format.

#define IPV6_EXT_AUTH 51

Next header code for Authentification Header

Referenced by ext_get_protocol(), ip_get_next_ext_from_ext(), ip_get_next_ext_from_ip(), ip_get_next_layer(), and ip_get_protocol().

#define IPV6_EXT_DESTINATION 60

Next header code for Destination options

Referenced by ext_get_protocol(), ip_get_next_ext_from_ext(), ip_get_next_ext_from_ip(), ip_get_next_layer(), and ip_get_protocol().

#define IPV6_EXT_HOP_BY_HOP 0

Next header code for Hop-by-Hop options

Referenced by ext_get_protocol(), ip_get_next_ext_from_ext(), ip_get_next_ext_from_ip(), ip_get_next_layer(), and ip_get_protocol().

#define IPV6_EXT_ROUTING 43

Next header code for Routing extension

Referenced by ext_get_protocol(), ip_get_next_ext_from_ext(), ip_get_next_ext_from_ip(), ip_get_next_layer(), and ip_get_protocol().

#define IPV6_FLOW_LABEL_MASK 0x000fffff

The bitmask for the FLow Label field in an ipv6_hdr->ip6_flow variable.

#define IPV6_GET_FLOW_LABEL ( ip6 ) IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_FLOW_LABEL_MASK, 0)

Get the IPv6 Flow Label 20-bit field from an ipv6_hdr object.

Referenced by c_udp_check_context(), and ipv6_get_flow_label().

#define IPV6_GET_TC ( ip6 ) IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET)

Get the IPv6 Traffic Class (TC) byte from an ipv6_hdr object.

Referenced by changed_fields(), and ip_get_tos().

#define IPV6_GET_VERSION ( ip6 ) IP_GET_32_SUBFIELD((ip6).ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET)

Get the IPv6 Version 4-bit field from ipv6_hdr object.

#define IPV6_SET_FLOW_LABEL	(	ip6,
		value
	)	IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_FLOW_LABEL_MASK, 0, (value))

Set the IPv6 Flow Label 20-bit field in an ipv6_hdr variable.

Referenced by ipv6_set_flow_label().

#define IPV6_SET_TC	(	ip6,
		value
	)	IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_TC_MASK, IPV6_TC_OFFSET, (value))

Set the IPv6 Traffic Class (TC) byte in an ipv6_hdr object.

Referenced by ip_set_tos().

#define IPV6_SET_VERSION	(	ip6,
		value
	)	IP_SET_32_SUBFIELD((ip6)->ip6_flow, IPV6_VERSION_MASK, IPV6_VERSION_OFFSET, (value))

Set the IPv6 Version 4-bit field in an ipv6_hdr object.

#define IPV6_TC_MASK 0x0ff00000

The bitmask for the Traffic Class (TC) field in an ipv6_hdr->ip6_flow variable.

#define IPV6_TC_OFFSET 20

The offset for the Traffic Class (TC) field in an ipv6_hdr->ip6_flow variable.

#define IPV6_VERSION_MASK 0xf0000000

The bitmask for the Version field in an ipv6_hdr->ip6_flow variable.

#define IPV6_VERSION_OFFSET 28

The offset for the Version field in an ipv6_hdr->ip6_flow variable.

Enumeration Type Documentation

enum ip_header_pos_t

The selected IP header

Enumerator:

ROHC_IP_HDR_NONE	No IP header selected
ROHC_IP_HDR_FIRST	The first IP header is selected
ROHC_IP_HDR_SECOND	The second IP header is selected

enum ip_version

IP version.

Enumerator:

IPV4	IP version 4.
IPV6	IP version 6.
IP_UNKNOWN	not IP
IPV4_MALFORMED	IP version 4 (malformed)
IPV6_MALFORMED	IP version 6 (malformed)

Function Documentation

unsigned int ROHC_EXPORT ext_get_protocol ( const unsigned char *const ext )

Get the protocol transported by the last IPv6 extension.

Parameters:

ext	The first extension

Returns:: The protocol number that identify the protocol transported by the given IP extension

References ext_get_protocol(), IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, and protocol.

Referenced by ext_get_protocol(), and ip_get_protocol().

int get_ip_version	(	const unsigned char *const	packet,
		const unsigned int	size,
		ip_version *const	version
	)

Private functions used by the IP module: (please do not use directly)

References IP_UNKNOWN, IPV4, and IPV6.

Referenced by compute_crc_dynamic(), compute_crc_static(), and ip_create().

int ROHC_EXPORT ip_create	(	struct ip_packet *const	ip,
		const unsigned char *	packet,
		const unsigned int	size
	)

Create an IP packet from raw data.

Parameters:

ip	OUT: The IP packet to create
packet	The IP packet data
size	The length of the IP packet data

Returns:: Whether the IP packet was successfully created or not

References ip_packet::data, get_ip_version(), ip_packet::header, ip_get_hdrlen(), ip_get_totlen(), IP_UNKNOWN, IPV4, IPV4_MALFORMED, IPV6, IPV6_MALFORMED, ip_packet::size, ip_packet::v4, ip_packet::v6, version, and ip_packet::version.

Referenced by ip_get_inner_packet(), and rohc_compress2().

unsigned short ROHC_EXPORT ip_get_extension_size ( const unsigned char *const ext )

Get the size of an IPv6 extension.

Parameters:

ext	The extension

Returns:: The size of the extension

Referenced by c_init_header_info(), and ip_get_total_extension_size().

unsigned int ROHC_EXPORT ip_get_hdrlen ( const struct ip_packet *const ip )

Get the length of an IP header.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The length of the IP header if successful, 0 otherwise

References ip_packet::header, ipv4_hdr::ihl, IPV4, IPV6, len, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_check_profile(), c_generic_encode(), and ip_create().

int ROHC_EXPORT ip_get_inner_packet	(	const struct ip_packet *const	outer,
		struct ip_packet *const	inner
	)

Get the inner IP packet (IP in IP)

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

outer	The outer IP packet to analyze
inner	The inner IP packet to create

Returns:: Whether the inner IP header is successfully created or not

References ip_create(), ip_get_next_layer(), and ip_get_plen().

Referenced by c_generic_create(), c_generic_encode(), c_udp_check_context(), and rohc_compress2().

unsigned char* ROHC_EXPORT ip_get_next_ext_from_ext	(	const unsigned char *const	ext,
		uint8_t *const	type
	)

Get the next extension header of IPv6 packets from another extension.

Parameters:

ext	The extension to analyse
type	OUT: The type of the next header If there is no next header the value must be ignored

Returns:: The next extension header, NULL if there is no more extension

References IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, and IPV6_EXT_ROUTING.

Referenced by ip_get_total_extension_size().

unsigned char* ROHC_EXPORT ip_get_next_ext_from_ip	(	const struct ip_packet *const	ip,
		uint8_t *const	type
	)

Get the next extension header of IPv6 packets from an IPv6 header.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze
type	OUT: The type of the next header If there is no next header the value must be ignored

Returns:: The next extension header, NULL if there is no extension

References ip_get_next_header(), IP_UNKNOWN, IPV6, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, and ip_packet::version.

Referenced by ip_get_total_extension_size().

unsigned char* ROHC_EXPORT ip_get_next_header	(	const struct ip_packet *const	ip,
		uint8_t *const	type
	)

Get the IP next header.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze
type	OUT: The type of the next header

Returns:: The next header if successful, NULL otherwise

References ip_packet::data, ip_packet::header, IPV4, IPV6, ipv4_hdr::protocol, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by ip_get_next_ext_from_ip(), and ip_get_next_layer().

unsigned char* ROHC_EXPORT ip_get_next_layer ( const struct ip_packet *const ip )

Get the next header (but skip IP extensions)

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The next header that is not an IP extension

References ip_get_next_header(), IPV6, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, and ip_packet::version.

Referenced by c_esp_check_profile(), c_generic_encode(), c_udp_check_context(), c_udp_check_profile(), ip_get_inner_packet(), and rtp_header_flags_and_fields().

unsigned int ROHC_EXPORT ip_get_plen ( const struct ip_packet *const ip )

Get the length of an IPv4/IPv6 payload.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IPv4/IPv6 packet to analyze

Returns:: The length of the IPv4/IPv6 payload if successful, 0 otherwise

References ip_packet::header, ipv4_hdr::ihl, ip_get_total_extension_size(), IPV4, IPV6, len, rohc_ntoh16(), ipv4_hdr::tot_len, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by c_esp_check_profile(), c_udp_check_profile(), and ip_get_inner_packet().

unsigned int ROHC_EXPORT ip_get_protocol ( const struct ip_packet *const ip )

Get the protocol transported by an IP packet.

The protocol returned is the one transported by the last known IP extension header if any is found.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN. It always returns the special value 0.

Parameters:

ip	The IP packet to analyze

Returns:: The protocol number that identify the protocol transported by the given IP packet, 0 if the packet is not IPv4 nor IPv6

References ip_packet::data, ext_get_protocol(), ip_packet::header, IPV4, IPV6, IPV6_EXT_AUTH, IPV6_EXT_DESTINATION, IPV6_EXT_HOP_BY_HOP, IPV6_EXT_ROUTING, ipv4_hdr::protocol, protocol, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by c_generic_create(), c_generic_encode(), c_udp_check_context(), changed_fields(), code_ipv4_static_part(), code_ipv6_static_part(), header_fields(), and rohc_compress2().

const unsigned char* ROHC_EXPORT ip_get_raw_data ( const struct ip_packet *const ip )

Get the IP raw data (header + payload)

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The IP raw data (header + payload)

References ip_packet::data.

Referenced by code_UO0_packet(), code_UO1_packet(), code_UO2_packet(), and rohc_compress2().

unsigned int ROHC_EXPORT ip_get_tos ( const struct ip_packet *const ip )

Get the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The TOS or TC value if successful, 0 otherwise

References ip_packet::header, IPV4, IPV6, IPV6_GET_TC, ipv4_hdr::tos, tos, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by changed_fields(), code_ipv4_dynamic_part(), code_ipv6_dynamic_part(), and header_fields().

unsigned short ROHC_EXPORT ip_get_total_extension_size ( const struct ip_packet *const ip )

Get the size of the extension list.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The packet to analyse

Returns:: The size of extension list

References ip_get_extension_size(), ip_get_next_ext_from_ext(), and ip_get_next_ext_from_ip().

Referenced by c_generic_encode(), and ip_get_plen().

unsigned int ROHC_EXPORT ip_get_totlen ( const struct ip_packet *const ip )

Get the total length of an IP packet.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The total length of the IP packet

References ip_packet::header, IPV4, IPV6, len, rohc_ntoh16(), ip_packet::size, ipv4_hdr::tot_len, ip_packet::v4, and ip_packet::version.

Referenced by ip_create(), and rohc_compress2().

unsigned int ROHC_EXPORT ip_get_ttl ( const struct ip_packet *const ip )

Get the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The TTL or HL value if successful, 0 otherwise

References ip_packet::header, IPV4, IPV6, ipv4_hdr::ttl, ttl, ip_packet::v4, ip_packet::v6, and ip_packet::version.

Referenced by changed_fields(), code_ipv4_dynamic_part(), code_ipv6_dynamic_part(), and header_fields().

ip_version ROHC_EXPORT ip_get_version ( const struct ip_packet *const ip )

Get the IP version of an IP packet.

The function handles ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: The version of the IP packet

References ip_packet::version.

Referenced by c_generic_check_profile(), c_generic_encode(), c_init_header_info(), c_udp_check_context(), changed_dynamic_one_hdr(), changed_fields(), code_EXT3_packet(), code_generic_dynamic_part(), code_generic_static_part(), code_IR_packet(), and code_uo_remainder().

int ROHC_EXPORT ip_is_fragment ( const struct ip_packet *const ip )

Whether the IP packet is an IP fragment or not.

The IP packet is a fragment if the MF (More Fragments) bit is set or the Fragment Offset field is non-zero.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to analyze

Returns:: Whether the IP packet is an IP fragment or not if successful, 0 otherwise

References ipv4_hdr::frag_off, ip_packet::header, IP_DF, IPV4, IPV6, rohc_ntoh16(), ip_packet::v4, and ip_packet::version.

Referenced by c_generic_check_profile().

void ROHC_EXPORT ip_set_daddr	(	struct ip_packet *const	ip,
		const unsigned char *	value
	)

Set the Destination Address of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to modify
value	The IP address value

References ipv4_hdr::daddr, ip_packet::header, ipv6_hdr::ip6_dst, IPV4, IPV6, ip_packet::v4, ip_packet::v6, and ip_packet::version.

void ROHC_EXPORT ip_set_protocol	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the protocol transported by an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to modify
value	The protocol value

References ip_packet::header, IPV4, IPV6, ipv4_hdr::protocol, ip_packet::v4, ip_packet::v6, and ip_packet::version.

void ROHC_EXPORT ip_set_saddr	(	struct ip_packet *const	ip,
		const unsigned char *	value
	)

Set the Source Address of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to modify
value	The IP address value

References ip_packet::header, ipv6_hdr::ip6_src, IPV4, IPV6, ipv4_hdr::saddr, ip_packet::v4, ip_packet::v6, and ip_packet::version.

void ROHC_EXPORT ip_set_tos	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the IPv4 Type Of Service (TOS) or IPv6 Traffic Class (TC) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to modify
value	The TOS/TC value

References ip_packet::header, IPV4, IPV6, IPV6_SET_TC, ipv4_hdr::tos, ip_packet::v4, ip_packet::v6, and ip_packet::version.

void ROHC_EXPORT ip_set_ttl	(	struct ip_packet *const	ip,
		const uint8_t	value
	)

Set the IPv4 Time To Live (TTL) or IPv6 Hop Limit (HL) of an IP packet.

The function does not handle ip_packet whose ip_packet::version is IP_UNKNOWN.

Parameters:

ip	The IP packet to modify
value	The TTL/HL value

References ip_packet::header, IPV4, IPV6, ipv4_hdr::ttl, ip_packet::v4, ip_packet::v6, and ip_packet::version.

void ROHC_EXPORT ip_set_version	(	struct ip_packet *const	ip,
		const ip_version	value
	)

Set the IP version of an IP packet.

Parameters:

ip	The IP packet to modify
value	The version value

References ip_packet::version.

uint32_t ROHC_EXPORT ipv4_get_daddr ( const struct ip_packet *const ip )

Get the destination address of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IPv4 packet to analyze

Returns:: The source address of the given IPv4 packet

References ipv4_hdr::daddr, ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_check_profile(), c_udp_check_context(), and code_ipv4_static_part().

int ROHC_EXPORT ipv4_get_df ( const struct ip_packet *const ip )

Get the Don't Fragment (DF) bit of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IP packet to analyze

Returns:: The DF bit

References ip_packet::header, IPV4, IPV4_GET_DF, ip_packet::v4, and ip_packet::version.

Referenced by changed_dynamic_one_hdr(), code_ipv4_dynamic_part(), and header_flags().

struct ipv4_hdr* ROHC_EXPORT ipv4_get_header ( const struct ip_packet *const ip ) [read]

Get the IPv4 header.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IP packet to analyze

Returns:: The IP header

References ip_packet::header, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_encode().

uint16_t ROHC_EXPORT ipv4_get_id ( const struct ip_packet *const ip )

Get the IP-ID of an IPv4 packet.

The IP-ID value is returned as-is (ie. not automatically converted to the host byte order).

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IP packet to analyze

Returns:: The IP-ID

References IPV4, ipv4_get_id_nbo(), and ip_packet::version.

Referenced by c_generic_encode(), and code_uo_remainder().

uint16_t ROHC_EXPORT ipv4_get_id_nbo	(	const struct ip_packet *const	ip,
		const unsigned int	nbo
	)

Get the IP-ID of an IPv4 packet in Network Byte Order.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IP packet to analyze
nbo	The NBO flag (if RND = 1, use NBO = 1)

Returns:: The IP-ID

References ip_packet::header, ipv4_hdr::id, id, IPV4, ip_packet::v4, and ip_packet::version.

Referenced by code_ipv4_dynamic_part(), and ipv4_get_id().

uint32_t ROHC_EXPORT ipv4_get_saddr ( const struct ip_packet *const ip )

Get the source address of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IPv4 packet to analyze

Returns:: The source address of the given IPv4 packet

References ip_packet::header, IPV4, ipv4_hdr::saddr, ip_packet::v4, and ip_packet::version.

Referenced by c_generic_check_profile(), c_udp_check_context(), and code_ipv4_static_part().

void ROHC_EXPORT ipv4_set_df	(	struct ip_packet *const	ip,
		const int	value
	)

Set the Don't Fragment (DF) bit of an IPv4 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IP packet to modify
value	The value of the DF bit

References ip_packet::header, IPV4, IPV4_SET_DF, ip_packet::v4, and ip_packet::version.

void ROHC_EXPORT ipv4_set_id	(	struct ip_packet *const	ip,
		const int	value
	)

Set the IP-ID of an IPv4 packet.

The IP-ID value is set as-is (ie. not automatically converted to the host byte order).

The function does not handle ip_packet whose ip_packet::version is not IPV4.

Parameters:

ip	The IP packet to modify
value	The IP-ID value

References ip_packet::header, ipv4_hdr::id, IPV4, ip_packet::v4, and ip_packet::version.

struct ipv6_addr* ROHC_EXPORT ipv6_get_daddr ( const struct ip_packet *const ip ) [read]

Get the destination address of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters:

ip	The IPv6 packet to analyze

Returns:: The source address of the given IPv6 packet

References ip_packet::header, ipv6_hdr::ip6_dst, IPV6, ip_packet::v6, and ip_packet::version.

Referenced by c_generic_check_profile(), c_udp_check_context(), and code_ipv6_static_part().

uint32_t ROHC_EXPORT ipv6_get_flow_label ( const struct ip_packet *const ip )

Get the flow label of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters:

ip	The IPv6 packet to analyze

Returns:: The flow label of the given IPv6 packet

References ip_packet::header, IPV6, IPV6_GET_FLOW_LABEL, ip_packet::v6, and ip_packet::version.

Referenced by c_udp_check_context(), and code_ipv6_static_part().

struct ipv6_hdr* ROHC_EXPORT ipv6_get_header ( const struct ip_packet *const ip ) [read]

Get the IPv6 header.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters:

ip	The IP packet to analyze

Returns:: The IP header if IPv6

References ip_packet::header, IPV6, ip_packet::v6, and ip_packet::version.

Referenced by c_generic_encode().

struct ipv6_addr* ROHC_EXPORT ipv6_get_saddr ( const struct ip_packet *const ip ) [read]

Get the source address of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters:

ip	The IPv6 packet to analyze

Returns:: The source address of the given IPv6 packet

References ip_packet::header, ipv6_hdr::ip6_src, IPV6, ip_packet::v6, and ip_packet::version.

Referenced by c_generic_check_profile(), c_udp_check_context(), and code_ipv6_static_part().

void ROHC_EXPORT ipv6_set_flow_label	(	struct ip_packet *const	ip,
		const uint32_t	value
	)

Set the flow label of an IPv6 packet.

The function does not handle ip_packet whose ip_packet::version is not IPV6.

Parameters:

ip	The IPv6 packet to modify
value	The flow label value

References ip_packet::header, IPV6, IPV6_SET_FLOW_LABEL, ip_packet::v6, and ip_packet::version.

Data Structures

Defines

Enumerations

Functions

Detailed Description

Define Documentation

Enumeration Type Documentation

Function Documentation
