Offset IP-ID decoding. More...

#include <stdint.h>
#include <stdlib.h>
#include <stdbool.h>
#include "dllexport.h"

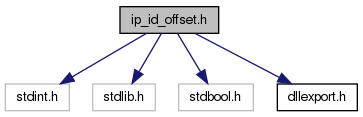

Include dependency graph for ip_id_offset.h:

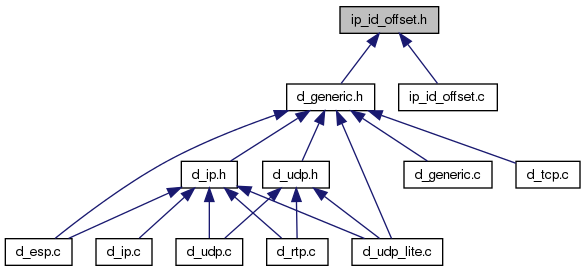

This graph shows which files directly or indirectly include this file:

Functions
struct ip_id_offset_decode *ROHC_EXPORT	ip_id_offset_new (void)
	Create a new Offset IP-ID decoding context.
void ROHC_EXPORT	ip_id_offset_free (struct ip_id_offset_decode *const ipid)
	Destroy a given Offset IP-ID decoding context.
bool ROHC_EXPORT	ip_id_offset_decode (const struct ip_id_offset_decode const ipid, const uint16_t m, const size_t k, const uint32_t sn, uint16_t const decoded)
	Decode the given IP-ID offset.
void ROHC_EXPORT	ip_id_offset_set_ref (struct ip_id_offset_decode *const ipid, const uint16_t id_ref, const uint32_t sn_ref)
	Update the reference values for the IP-ID and the SN.

Detailed Description

Offset IP-ID decoding.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; Didier Barvaux <didier@barvaux.org>

Function Documentation

bool ROHC_EXPORT ip_id_offset_decode	(	const struct ip_id_offset_decode *const	ipid,
		const uint16_t	m,
		const size_t	k,
		const uint32_t	sn,
		uint16_t *const	decoded
	)

Decode the given IP-ID offset.

Parameters:

ipid	The Offset IP-ID object
m	The IP-ID offset to decode
k	The number of bits used to code the IP-ID offset
sn	The SN of the ROHC packet that contains the IP-ID offset
decoded	OUT: The computed IP-ID

void ROHC_EXPORT ip_id_offset_free ( struct ip_id_offset_decode *const ipid )

Destroy a given Offset IP-ID decoding context.

See 4.5.5 in the RFC 3095 for details about Offset IP-ID encoding.

Parameters:

ipid	The Offset IP-ID decoding context to destroy

struct ip_id_offset_decode* ROHC_EXPORT ip_id_offset_new ( void ) [read]

Create a new Offset IP-ID decoding context.

See 4.5.5 in the RFC 3095 for details about Offset IP-ID encoding.

Returns:: The new Offset IP-ID decoding context in case of success, NULL otherwise

void ROHC_EXPORT ip_id_offset_set_ref	(	struct ip_id_offset_decode *const	ipid,
		const uint16_t	id_ref,
		const uint32_t	sn_ref
	)

Update the reference values for the IP-ID and the SN.

Parameters:

ipid	The Offset IP-ID decoding object
id_ref	The new IP-ID reference
sn_ref	The new SN reference
