Network packet (may contains several IP headers) More...

#include "rohc_buf.h"
#include "ip.h"
#include "rohc_traces.h"
#include "dllexport.h"
#include "config.h"

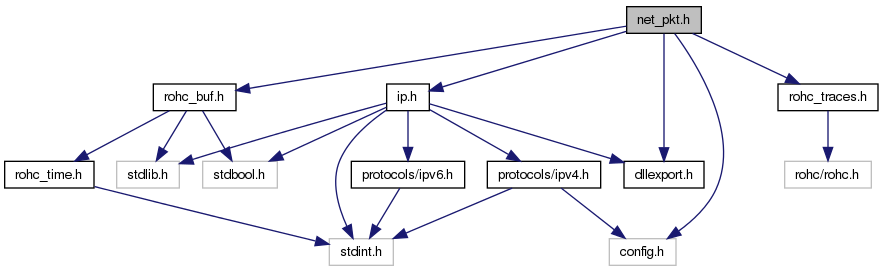

Include dependency graph for net_pkt.h:

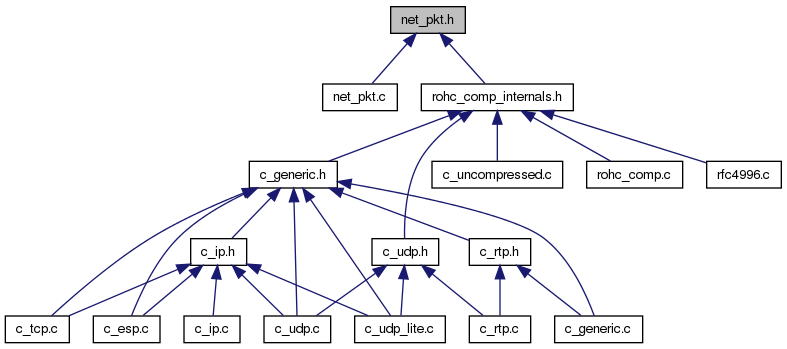

This graph shows which files directly or indirectly include this file:

Data Structures
struct	net_pkt
Typedefs
typedef uint32_t	rohc_ctxt_key_t
Functions
bool ROHC_EXPORT	net_pkt_parse (struct net_pkt const packet, const struct rohc_buf data, rohc_trace_callback_t trace_cb, rohc_trace_callback2_t trace_cb2, void const trace_cb_priv, rohc_trace_entity_t trace_entity)
	Parse a network packet.
size_t ROHC_EXPORT	net_pkt_get_payload_offset (const struct net_pkt *const packet)
	Get the offset of the IP payload in the given packet.

Detailed Description

Network packet (may contains several IP headers)

Typedef Documentation

typedef uint32_t rohc_ctxt_key_t

The key to help identify (not quaranted unique) a compression context

size_t ROHC_EXPORT net_pkt_get_payload_offset ( const struct net_pkt *const packet )

Get the offset of the IP payload in the given packet.

The payload begins after the innermost IP header (and its extension headers).

Parameters:

packet The packet to get the payload offset for

bool ROHC_EXPORT net_pkt_parse	(	struct net_pkt *const	packet,
		const struct rohc_buf	data,
		rohc_trace_callback_t	trace_cb,
		rohc_trace_callback2_t	trace_cb2,
		void *const	trace_cb_priv,
		rohc_trace_entity_t	trace_entity
	)

Parse a network packet.

Parameters:

[out]	packet	The parsed packet
	data	The data to parse
	trace_cb	The old function to call for printing traces
	trace_cb2	The new function to call for printing traces
	trace_cb_priv	An optional private context, may be NULL
	trace_entity	The entity that emits the traces

Returns:: true if the packet was successfully parsed, false if a problem occurred (a malformed packet is not considered as an error)
