d_tcp_context Struct Reference

Define the TCP part of the decompression profile context. More...

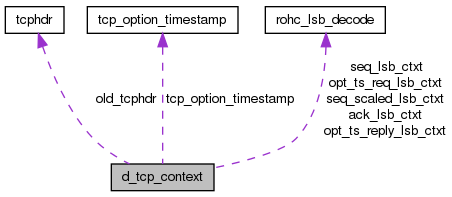

Collaboration diagram for d_tcp_context:

Data Fields
uint16_t	msn
uint8_t	ecn_used
uint16_t	tcp_src_port
uint16_t	tcp_dst_port
uint32_t	seq_num_scaled
uint32_t	seq_num_residue
struct rohc_lsb_decode *	seq_lsb_ctxt
struct rohc_lsb_decode *	seq_scaled_lsb_ctxt
uint16_t	ack_stride
uint32_t	ack_num_scaled
uint32_t	ack_num_residue
struct rohc_lsb_decode *	ack_lsb_ctxt
uint8_t	tcp_options_list [ROHC_TCP_OPTS_MAX]
uint8_t	tcp_options_offset [ROHC_TCP_OPTS_MAX]
uint16_t	tcp_option_maxseg
uint8_t	tcp_option_window
uint8_t	tcp_opts_list_struct [ROHC_TCP_OPTS_MAX]
bool	is_tcp_opts_list_item_present [ROHC_TCP_OPTS_MAX]
size_t	tcp_opts_list_item_uncomp_length [ROHC_TCP_OPTS_MAX]
struct tcp_option_timestamp	tcp_option_timestamp
struct rohc_lsb_decode *	opt_ts_req_lsb_ctxt
struct rohc_lsb_decode *	opt_ts_reply_lsb_ctxt
uint8_t	tcp_option_sack_length
uint8_t	tcp_option_sackblocks [8 *4]
uint8_t	tcp_options_free_offset
uint8_t	tcp_options_values [MAX_TCP_OPT_SIZE]
tcphdr_t	old_tcphdr
uint8_t	ip_context [MAX_IP_CONTEXT_SIZE]

---

Detailed Description

Define the TCP part of the decompression profile context.

This object must be used with the generic part of the decompression context d_generic_context.

See also:

d_generic_context

---

Field Documentation

struct rohc_lsb_decode* d_tcp_context::ack_lsb_ctxt

uint32_t d_tcp_context::ack_num_residue

uint32_t d_tcp_context::ack_num_scaled

uint16_t d_tcp_context::ack_stride

uint8_t d_tcp_context::ecn_used

uint8_t d_tcp_context::ip_context[MAX_IP_CONTEXT_SIZE]

bool d_tcp_context::is_tcp_opts_list_item_present[ROHC_TCP_OPTS_MAX]

Whether the content of every TCP options was transmitted or not

uint16_t d_tcp_context::msn

tcphdr_t d_tcp_context::old_tcphdr

struct rohc_lsb_decode* d_tcp_context::opt_ts_reply_lsb_ctxt

struct rohc_lsb_decode* d_tcp_context::opt_ts_req_lsb_ctxt

struct rohc_lsb_decode* d_tcp_context::seq_lsb_ctxt

uint32_t d_tcp_context::seq_num_residue

uint32_t d_tcp_context::seq_num_scaled

struct rohc_lsb_decode* d_tcp_context::seq_scaled_lsb_ctxt

uint16_t d_tcp_context::tcp_dst_port

uint16_t d_tcp_context::tcp_option_maxseg

uint8_t d_tcp_context::tcp_option_sack_length

uint8_t d_tcp_context::tcp_option_sackblocks[8 *4]

struct tcp_option_timestamp d_tcp_context::tcp_option_timestamp

uint8_t d_tcp_context::tcp_option_window

uint8_t d_tcp_context::tcp_options_free_offset

uint8_t d_tcp_context::tcp_options_list[ROHC_TCP_OPTS_MAX]

uint8_t d_tcp_context::tcp_options_offset[ROHC_TCP_OPTS_MAX]

uint8_t d_tcp_context::tcp_options_values[MAX_TCP_OPT_SIZE]

size_t d_tcp_context::tcp_opts_list_item_uncomp_length[ROHC_TCP_OPTS_MAX]

TODO

uint8_t d_tcp_context::tcp_opts_list_struct[ROHC_TCP_OPTS_MAX]

The structure of the list of TCP options

uint16_t d_tcp_context::tcp_src_port

---

The documentation for this struct was generated from the following file:

• d_tcp.c
