feedback.h File Reference

ROHC feedback definitions and formats. More...

#include "rohc.h"
#include "config.h"
#include <stdbool.h>
#include <stdint.h>
#include <stddef.h>

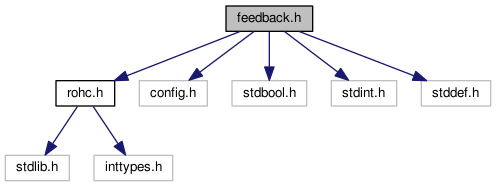

Include dependency graph for feedback.h:

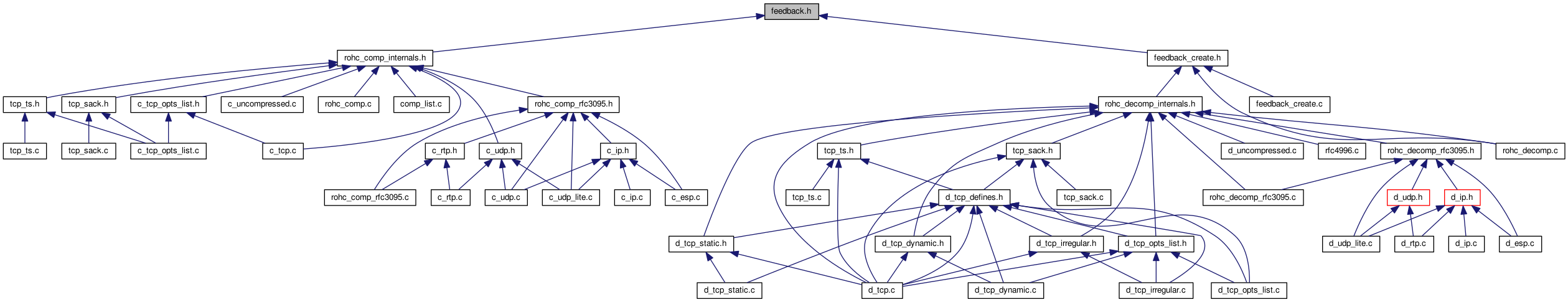

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rohc_feedback_2_rfc3095
struct	rohc_feedback_2_rfc6846
struct	rohc_feedback_opt_charac

Macros
#define	ROHC_FEEDBACK_OPT_MSN_NOT_VALID   ROHC_FEEDBACK_OPT_SN_NOT_VALID
#define	ROHC_FEEDBACK_OPT_MSN   ROHC_FEEDBACK_OPT_SN
#define	ROHC_FEEDBACK_OPT_MAX_OCCURS   100U
	Max occurrences of a feedback option in one feedback packet. More...

Enumerations
enum	rohc_feedback_type { ROHC_FEEDBACK_1 = 1, ROHC_FEEDBACK_2 = 2 }
enum	rohc_feedback_ack_type { ROHC_FEEDBACK_ACK = 0, ROHC_FEEDBACK_NACK = 1, ROHC_FEEDBACK_STATIC_NACK = 2, ROHC_FEEDBACK_RESERVED = 3 }
enum	rohc_feedback_opt {   ROHC_FEEDBACK_OPT_CRC = 1, ROHC_FEEDBACK_OPT_REJECT = 2, ROHC_FEEDBACK_OPT_SN_NOT_VALID = 3, ROHC_FEEDBACK_OPT_SN = 4,   ROHC_FEEDBACK_OPT_CLOCK = 5, ROHC_FEEDBACK_OPT_JITTER = 6, ROHC_FEEDBACK_OPT_LOSS = 7, ROHC_FEEDBACK_OPT_CV_REQUEST = 8,   ROHC_FEEDBACK_OPT_CONTEXT_MEMORY = 9, ROHC_FEEDBACK_OPT_UNKNOWN_10 = 10, ROHC_FEEDBACK_OPT_UNKNOWN_11 = 11, ROHC_FEEDBACK_OPT_UNKNOWN_12 = 12,   ROHC_FEEDBACK_OPT_UNKNOWN_13 = 13, ROHC_FEEDBACK_OPT_UNKNOWN_14 = 14, ROHC_FEEDBACK_OPT_UNKNOWN_15 = 15, ROHC_FEEDBACK_OPT_MAX }

Variables
static const struct rohc_feedback_opt_charac	rohc_feedback_opt_charac [ROHC_FEEDBACK_OPT_MAX]

Detailed Description

ROHC feedback definitions and formats.

Author

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

#define ROHC_FEEDBACK_OPT_MAX_OCCURS   100U

Max occurrences of a feedback option in one feedback packet.

Even if the standard says that some options may be present multiple times, don't allow more than a raisonable occurrences. It allows the library to protect itself against abuses.

#define ROHC_FEEDBACK_OPT_MSN   ROHC_FEEDBACK_OPT_SN

The Feedback MSN option (TCP profile)

#define ROHC_FEEDBACK_OPT_MSN_NOT_VALID   ROHC_FEEDBACK_OPT_SN_NOT_VALID

The Feedback MSN-NOT-VALID option (TCP profile)

Enumeration Type Documentation

enum rohc_feedback_ack_type

The type of acknowledgement

Enumerator
ROHC_FEEDBACK_ACK	The classical ACKnowledgement
ROHC_FEEDBACK_NACK	The Negative ACKnowledgement
ROHC_FEEDBACK_STATIC_NACK	The Negative STATIC ACKnowledgement
ROHC_FEEDBACK_RESERVED	reserved (MUST NOT be used for parsability)

enum rohc_feedback_opt

The ROHC feedback options

Enumerator
ROHC_FEEDBACK_OPT_CRC	The Feedback CRC option
ROHC_FEEDBACK_OPT_REJECT	The Feedback REJECT option
ROHC_FEEDBACK_OPT_SN_NOT_VALID	The Feedback SN-NOT-VALID option
ROHC_FEEDBACK_OPT_SN	The Feedback SN option
ROHC_FEEDBACK_OPT_CLOCK	The Feedback CLOCK option
ROHC_FEEDBACK_OPT_JITTER	The Feedback JITTER option
ROHC_FEEDBACK_OPT_LOSS	The Feedback LOSS option
ROHC_FEEDBACK_OPT_CV_REQUEST	The Feedback CV-REQUEST option
ROHC_FEEDBACK_OPT_CONTEXT_MEMORY	The Feedback CONTEXT_MEMORY option
ROHC_FEEDBACK_OPT_UNKNOWN_10	Unknown option with value 10
ROHC_FEEDBACK_OPT_UNKNOWN_11	Unknown option with value 11
ROHC_FEEDBACK_OPT_UNKNOWN_12	Unknown option with value 12
ROHC_FEEDBACK_OPT_UNKNOWN_13	Unknown option with value 13
ROHC_FEEDBACK_OPT_UNKNOWN_14	Unknown option with value 14
ROHC_FEEDBACK_OPT_UNKNOWN_15	Unknown option with value 15
ROHC_FEEDBACK_OPT_MAX	The max number of feedback options

enum rohc_feedback_type

The type of ROHC feedback

Enumerator
ROHC_FEEDBACK_1	ROHC FEEDBACK-1
ROHC_FEEDBACK_2	ROHC FEEDBACK-2

Variable Documentation

const struct rohc_feedback_opt_charac rohc_feedback_opt_charac[ROHC_FEEDBACK_OPT_MAX]

static

Feedback options capacities
