ROHC compression context for the TCP profile. More...

#include "rohc_comp_internals.h"
#include "rohc_traces_internal.h"
#include "rohc_utils.h"
#include "rohc_packets.h"
#include "net_pkt.h"
#include "rohc_time_internal.h"
#include "protocols/ip_numbers.h"
#include "protocols/ip.h"
#include "protocols/ipv4.h"
#include "protocols/ipv6.h"
#include "protocols/tcp.h"
#include "schemes/cid.h"
#include "schemes/ip_id_offset.h"
#include "schemes/rfc4996.h"
#include "c_tcp_opts_list.h"
#include "sdvl.h"
#include "crc.h"
#include "rohc_bit_ops.h"
#include "c_tcp_defines.h"
#include "c_tcp_static.h"
#include "c_tcp_dynamic.h"
#include "c_tcp_replicate.h"
#include "c_tcp_irregular.h"
#include <assert.h>
#include <stdlib.h>
#include <string.h>
#include "config.h"

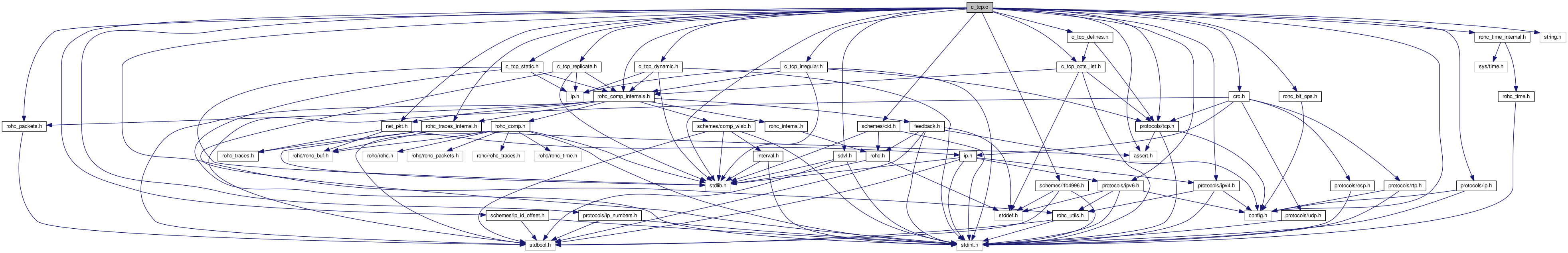

Include dependency graph for c_tcp.c:

Macros
#define	TRACE_GOTO_CHOICE rohc_comp_debug(context, "Compressed format choice LINE %d", __LINE__ )

Functions
static bool	c_tcp_create_from_ctxt (struct rohc_comp_ctxt const ctxt, const struct rohc_comp_ctxt const base_ctxt)
	Create a new TCP context and initialize it thanks to the given context. More...

static bool	c_tcp_create_from_pkt (struct rohc_comp_ctxt const context, const struct net_pkt const packet)
	Create a new TCP context and initialize it thanks to the given IP/TCP packet. More...

static void	c_tcp_destroy (struct rohc_comp_ctxt *const context)
	Destroy the TCP context. More...

static bool	c_tcp_check_profile (const struct rohc_comp const comp, const struct net_pkt const packet)
	Check if the given packet corresponds to the TCP profile. More...

static bool	c_tcp_check_context (const struct rohc_comp_ctxt const context, const struct net_pkt const packet, size_t *const cr_score)
	Check if the IP/TCP packet belongs to the context. More...

static int	c_tcp_encode (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type, size_t *const payload_offset)
	Encode an IP/TCP packet according to a pattern decided by several different factors. More...

static uint16_t	c_tcp_get_next_msn (const struct rohc_comp_ctxt *const context)
	Determine the MSN value for the next packet. More...

static bool	rohc_comp_tcp_are_ipv6_exts_acceptable (const struct rohc_comp const comp, uint8_t const next_proto, const uint8_t const exts, const size_t max_exts_len, size_t const exts_len)
	Whether IPv6 extension headers are acceptable for TCP profile or not. More...

static bool	tcp_detect_changes (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, ip_context_t const ip_inner_ctxt, const struct tcphdr const tcp)
	Detect changes between packet and context. More...

static bool	tcp_detect_changes_ipv6_exts (struct rohc_comp_ctxt const context, ip_context_t const ip_context, uint8_t const protocol, const uint8_t const exts, const size_t max_exts_len, size_t const exts_nr, size_t const exts_len)
	Detect changes about IPv6 extension headers between packet and context. More...

static void	tcp_decide_state (struct rohc_comp_ctxt *const context, struct rohc_ts pkt_time)
	Decide the state that should be used for the next packet. More...

static bool	tcp_encode_uncomp_fields (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, const struct tcphdr *const tcp)
	Encode uncompressed fields with the corresponding encoding scheme. More...

static bool	tcp_encode_uncomp_ip_fields (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt)
	Encode uncompressed IP fields with the corresponding encoding scheme. More...

static bool	tcp_encode_uncomp_tcp_fields (struct rohc_comp_ctxt const context, const struct tcphdr const tcp)
	Encode uncompressed TCP fields with the corresponding encoding scheme. More...

static rohc_packet_t	tcp_decide_packet (struct rohc_comp_ctxt const context, const ip_context_t const ip_inner_context, const struct tcphdr *const tcp)
	Decide which packet to send when in the different states. More...

static rohc_packet_t	tcp_decide_FO_packet (const struct rohc_comp_ctxt const context, const ip_context_t const ip_inner_context, const struct tcphdr *const tcp)
	Decide which packet to send when in FO state. More...

static rohc_packet_t	tcp_decide_SO_packet (const struct rohc_comp_ctxt const context, const ip_context_t const ip_inner_context, const struct tcphdr *const tcp)
	Decide which packet to send when in SO state. More...

static rohc_packet_t	tcp_decide_FO_SO_packet (const struct rohc_comp_ctxt const context, const ip_context_t const ip_inner_context, const struct tcphdr *const tcp, const bool crc7_at_least)
	Decide which packet to send when in FO or SO state. More...

static rohc_packet_t	tcp_decide_FO_SO_packet_seq (const struct rohc_comp_ctxt const context, const struct tcphdr const tcp, const bool crc7_at_least)
	Decide which seq packet to send when in FO or SO state. More...

static rohc_packet_t	tcp_decide_FO_SO_packet_rnd (const struct rohc_comp_ctxt const context, const struct tcphdr const tcp, const bool crc7_at_least)
	Decide which rnd packet to send when in FO or SO state. More...

static int	code_IR_packet (struct rohc_comp_ctxt const context, const struct ip_packet const ip, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type, size_t const payload_offset)
	Encode an IP/TCP packet as IR, IR-CR or IR-DYN packet. More...

static int	code_CO_packet (struct rohc_comp_ctxt const context, const struct ip_packet ip, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type, size_t const payload_offset)
	Build the CO packet. More...

static int	co_baseheader (struct rohc_comp_ctxt const context, struct sc_tcp_context const tcp_context, ip_context_t const inner_ip_ctxt, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type, const struct tcphdr const tcp, const uint8_t crc)
	Compress the innermost IP header AND the TCP header. More...

static int	c_tcp_build_rnd_1 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_1 packet. More...

static int	c_tcp_build_rnd_2 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_2 packet. More...

static int	c_tcp_build_rnd_3 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_3 packet. More...

static int	c_tcp_build_rnd_4 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_4 packet. More...

static int	c_tcp_build_rnd_5 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_5 packet. More...

static int	c_tcp_build_rnd_6 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_6 packet. More...

static int	c_tcp_build_rnd_7 (const struct rohc_comp_ctxt const context, const struct sc_tcp_context const tcp_context, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_7 packet. More...

static int	c_tcp_build_rnd_8 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP rnd_8 packet. More...

static int	c_tcp_build_seq_1 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_1 packet. More...

static int	c_tcp_build_seq_2 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_2 packet. More...

static int	c_tcp_build_seq_3 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_3 packet. More...

static int	c_tcp_build_seq_4 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_4 packet. More...

static int	c_tcp_build_seq_5 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_5 packet. More...

static int	c_tcp_build_seq_6 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_6 packet. More...

static int	c_tcp_build_seq_7 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, const struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_7 packet. More...

static int	c_tcp_build_seq_8 (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP seq_8 packet. More...

static int	c_tcp_build_co_common (const struct rohc_comp_ctxt const context, const ip_context_t const inner_ip_ctxt, struct sc_tcp_context const tcp_context, const struct ip_hdr const inner_ip_hdr, const size_t inner_ip_hdr_len, const struct tcphdr const tcp, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a TCP co_common packet. More...

static tcp_ip_id_behavior_t	tcp_detect_ip_id_behavior (const uint16_t last_ip_id, const uint16_t new_ip_id)
	Detect the behavior of the IPv4 Identification field. More...

static void	tcp_detect_ecn_used_behavior (struct rohc_comp_ctxt *const context, const uint8_t pkt_ecn_vals, const uint8_t pkt_outer_dscp_changed, const uint8_t pkt_res_val)
	Detect the behavior of the IP/TCP ECN flags and TCP RES flags. More...

static void	tcp_field_descr_change (const struct rohc_comp_ctxt const context, const char const name, const bool changed, const size_t nr_trans)
	Print a debug trace for the field change. More...

static void	tcp_field_descr_present (const struct rohc_comp_ctxt const context, const char const name, const bool present)
	Print a debug trace for the field presence. More...

static bool	c_tcp_feedback (struct rohc_comp_ctxt const context, const enum rohc_feedback_type feedback_type, const uint8_t const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when feedback is received. More...

static bool	c_tcp_feedback_2 (struct rohc_comp_ctxt const context, const uint8_t const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when FEEDBACK-2 is received. More...

static void	c_tcp_feedback_ack (struct rohc_comp_ctxt *const context, const uint32_t sn_bits, const size_t sn_bits_nr, const bool sn_not_valid)
	Perform the required actions after the reception of a positive ACK. More...

Variables
const struct rohc_comp_profile	c_tcp_profile
	Define the compression part of the TCP profile as described in the RFC 3095. More...

Detailed Description

ROHC compression context for the TCP profile.

Author: FWX rohc_.nosp@m.team.nosp@m.@dial.nosp@m.ine..nosp@m.fr; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org; Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Macro Definition Documentation

◆ TRACE_GOTO_CHOICE

#define TRACE_GOTO_CHOICE rohc_comp_debug(context, "Compressed format choice LINE %d", __LINE__ )

Function Documentation

◆ c_tcp_build_co_common()

static int c_tcp_build_co_common	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP co_common packet.

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP text
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: true if the packet is successfully built, false otherwise

◆ c_tcp_build_rnd_1()

static int c_tcp_build_rnd_1	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_1 packet.

Send LSBs of sequence number See RFC4996 page 81

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_2()

static int c_tcp_build_rnd_2	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_2 packet.

Send scaled sequence number LSBs See RFC4996 page 81

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_3()

static int c_tcp_build_rnd_3	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_3 packet.

Send acknowlegment number LSBs See RFC4996 page 81

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_4()

static int c_tcp_build_rnd_4	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_4 packet.

Send acknowlegment number scaled See RFC4996 page 81

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_5()

static int c_tcp_build_rnd_5	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_5 packet.

Send ACK and sequence number See RFC4996 page 82

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_6()

static int c_tcp_build_rnd_6	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_6 packet.

Send both ACK and scaled sequence number LSBs See RFC4996 page 82

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_7()

static int c_tcp_build_rnd_7	(	const struct rohc_comp_ctxt *const	context,
		const struct sc_tcp_context *const	tcp_context,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_7 packet.

Send ACK and window See RFC4996 page 82

Parameters

	context	The compression context
	tcp_context	The specific TCP context
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_rnd_8()

static int c_tcp_build_rnd_8	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP rnd_8 packet.

Send LSBs of TTL, RSF flags, change ECN behavior and options list See RFC4996 page 82

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_1()

static int c_tcp_build_seq_1	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_1 packet.

Send LSBs of sequence number See RFC4996 page 83

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_2()

static int c_tcp_build_seq_2	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_2 packet.

Send scaled sequence number LSBs See RFC4996 page 83

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_3()

static int c_tcp_build_seq_3	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_3 packet.

Send acknowledgment number LSBs See RFC4996 page 83

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_4()

static int c_tcp_build_seq_4	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_4 packet.

Send scaled acknowledgment number scaled See RFC4996 page 84

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_5()

static int c_tcp_build_seq_5	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_5 packet.

Send ACK and sequence number See RFC4996 page 84

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_6()

static int c_tcp_build_seq_6	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_6 packet.

See RFC4996 page 84

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_7()

static int c_tcp_build_seq_7	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		const struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_7 packet.

Send ACK and window See RFC4996 page 85

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_build_seq_8()

static int c_tcp_build_seq_8	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	inner_ip_ctxt,
		struct sc_tcp_context *const	tcp_context,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		const struct tcphdr *const	tcp,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a TCP seq_8 packet.

Send LSBs of TTL, RSF flags, change ECN behavior, and options list See RFC4996 page 85

Parameters

	context	The compression context
	inner_ip_ctxt	The specific IP innermost context
	tcp_context	The specific TCP context
	inner_ip_hdr	The innermost IP header
	inner_ip_hdr_len	The length of the innermost IP header
	tcp	The TCP header to compress
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ c_tcp_check_context()

static bool c_tcp_check_context	(	const struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet,
		size_t *const	cr_score
	)

static

Check if the IP/TCP packet belongs to the context.

Conditions are:

the number of IP headers must be the same as in context
IP version of the two IP headers must be the same as in context
IP packets must not be fragmented
the source and destination addresses of the two IP headers must match the ones in the context
the transport protocol must be TCP
the source and destination ports of the TCP header must match the ones in the context
IPv6 only: the Flow Label of the two IP headers must match the ones the context

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

	context	The compression context
	packet	The IP/TCP packet to check
[out]	cr_score	The score of the context for Context Replication (CR)

Returns: true if the IP/TCP packet belongs to the context false if it does not belong to the context

Todo:: TODO: the code that parses IP headers in IP/UDP/RTP profiles could probably be re-used (and maybe enhanced if needed)

◆ c_tcp_check_profile()

static bool c_tcp_check_profile	(	const struct rohc_comp *const	comp,
		const struct net_pkt *const	packet
	)

static

Check if the given packet corresponds to the TCP profile.

Conditions are:

the transport protocol is TCP
the version of the outer IP header is 4 or 6
the outer IP header is not an IP fragment
if there are at least 2 IP headers, the version of the inner IP header is 4 or 6
if there are at least 2 IP headers, the inner IP header is not an IP fragment

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

comp	The ROHC compressor
packet	The packet to check

Returns

Whether the IP packet corresponds to the profile:

true if the IP packet corresponds to the profile,
false if the IP packet does not correspond to the profile

◆ c_tcp_create_from_ctxt()

static bool c_tcp_create_from_ctxt	(	struct rohc_comp_ctxt *const	ctxt,
		const struct rohc_comp_ctxt *const	base_ctxt
	)

static

Create a new TCP context and initialize it thanks to the given context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

ctxt	The compression context to create
base_ctxt	The base context given to initialize the new context

Returns: true if successful, false otherwise

◆ c_tcp_create_from_pkt()

static bool c_tcp_create_from_pkt	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet
	)

static

Create a new TCP context and initialize it thanks to the given IP/TCP packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
packet	The IP/TCP packet given to initialize the new context

Returns: true if successful, false otherwise

Todo:: TODO: the code that parses IP headers in IP/UDP/RTP profiles could probably be re-used (and maybe enhanced if needed)

◆ c_tcp_destroy()

static void c_tcp_destroy ( struct rohc_comp_ctxt *const context )

static

Destroy the TCP context.

Parameters

context The TCP compression context to destroy

◆ c_tcp_encode()

static int c_tcp_encode	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type,
		size_t *const	payload_offset
	)

static

Encode an IP/TCP packet according to a pattern decided by several different factors.

Check if we have double IP headers.
Check if the IP-ID fields are random and if they are in NBO.
Decide in which state to go (IR, FO or SO).
Decide how many bits are needed to send the IP-ID and SN fields and more important update the sliding windows.
Decide which packet type to send.

Code the packet.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
payload_offset	OUT: The offset for the payload in the IP packet

Returns: The length of the ROHC packet if successful, -1 otherwise

Todo:: TODO: the code that parses IP headers in IP/UDP/RTP profiles could probably be re-used (and maybe enhanced if needed)

◆ c_tcp_feedback()

static bool c_tcp_feedback	(	struct rohc_comp_ctxt *const	context,
		const enum rohc_feedback_type	feedback_type,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len
	)

static

Update the profile when feedback is received.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
feedback_type	The feedback type
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns: true if the feedback was successfully handled, false if the feedback could not be taken into account

◆ c_tcp_feedback_2()

static bool c_tcp_feedback_2	(	struct rohc_comp_ctxt *const	context,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len
	)

static

Update the profile when FEEDBACK-2 is received.

Parameters

context	The compression context
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns: true if the feedback was successfully handled, false if the feedback could not be taken into account

◆ c_tcp_feedback_ack()

static void c_tcp_feedback_ack	(	struct rohc_comp_ctxt *const	context,
		const uint32_t	sn_bits,
		const size_t	sn_bits_nr,
		const bool	sn_not_valid
	)

static

Perform the required actions after the reception of a positive ACK.

Parameters

context	The compression context that received a positive ACK
sn_bits	The LSB bits of the acknowledged SN
sn_bits_nr	The number of LSB bits of the acknowledged SN
sn_not_valid	Whether the received SN may be considered as valid or not

◆ c_tcp_get_next_msn()

static uint16_t c_tcp_get_next_msn ( const struct rohc_comp_ctxt *const context )

static

Determine the MSN value for the next packet.

Profile MSN is an internal increasing 16-bit number. See RFC 6846, §6.1.1.

Parameters

context The compression context

Returns: The MSN value for the next ROHC packet

◆ co_baseheader()

static int co_baseheader	(	struct rohc_comp_ctxt *const	context,
		struct sc_tcp_context *const	tcp_context,
		ip_context_t *const	inner_ip_ctxt,
		const struct ip_hdr *const	inner_ip_hdr,
		const size_t	inner_ip_hdr_len,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		const rohc_packet_t	packet_type,
		const struct tcphdr *const	tcp,
		const uint8_t	crc
	)

static

Compress the innermost IP header AND the TCP header.

See RFC4996 page 77

Parameters

context	The compression context
tcp_context	The specific TCP context
inner_ip_ctxt	The specific IP innermost context
inner_ip_hdr	The innermost IP header
inner_ip_hdr_len	The length of the innermost IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
tcp	The TCP header to compress
crc	The CRC on the uncompressed headers

Returns: The position in the rohc-packet-under-build buffer -1 in case of problem

◆ code_CO_packet()

static int code_CO_packet	(	struct rohc_comp_ctxt *const	context,
		const struct ip_packet *	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		const rohc_packet_t	packet_type,
		size_t *const	payload_offset
	)

static

Build the CO packet.

See RFC4996 page 46

 CO packet (RFC4996 §7.3 page 41):

      0   1   2   3   4   5   6   7
     --- --- --- --- --- --- --- ---
 1  :         Add-CID octet         :  if for small CIDs and CID != 0
    +---+---+---+---+---+---+---+---+
 2  |   First octet of base header  |  (with type indication)
    +---+---+---+---+---+---+---+---+
    |                               |
 3  /    0-2 octets of CID info     /  1-2 octets if for large CIDs
    |                               |
    +---+---+---+---+---+---+---+---+
 4  /   Remainder of base header    /  variable number of octets
    +---+---+---+---+---+---+---+---+
    :        Irregular chain        :
 5  /   (including irregular chain  /  variable
    :    items for TCP options)     :
    +---+---+---+---+---+---+---+---+
    |                               |
 6  /           Payload             /  variable length
    |                               |
     - - - - - - - - - - - - - - - -

Parameters

context	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	The type of ROHC packet to create
payload_offset	OUT: The offset for the payload in the IP packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ code_IR_packet()

static int code_IR_packet	(	struct rohc_comp_ctxt *const	context,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		const rohc_packet_t	packet_type,
		size_t *const	payload_offset
	)

static

Encode an IP/TCP packet as IR, IR-CR or IR-DYN packet.

Parameters

context	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	The type of ROHC packet that is created
payload_offset	OUT: The offset for the payload in the IP packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_tcp_are_ipv6_exts_acceptable()

static bool rohc_comp_tcp_are_ipv6_exts_acceptable	(	const struct rohc_comp *const	comp,
		uint8_t *const	next_proto,
		const uint8_t *const	exts,
		const size_t	max_exts_len,
		size_t *const	exts_len
	)

static

Whether IPv6 extension headers are acceptable for TCP profile or not.

TCP options are acceptable if:

the last IPv6 extension header is not truncated,
no more than ROHC_TCP_MAX_IP_EXT_HDRS extension headers are present,
each extension header is present only once (except Destination that may occur twice).

Parameters

	comp	The ROHC compressor
[in,out]	next_proto	in: the protocol type of the first extension header out: the protocol type of the transport header
	exts	The beginning of the IPv6 extension headers
	max_exts_len	The maximum length (in bytes) of the extension headers
[out]	exts_len	The length (in bytes) of the IPv6 extension headers

Returns: true if the IPv6 extension headers are acceptable, false if they are not

See also: ROHC_TCP_MAX_IP_EXT_HDRS

◆ tcp_decide_FO_packet()

static rohc_packet_t tcp_decide_FO_packet	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	ip_inner_context,
		const struct tcphdr *const	tcp
	)

static

Decide which packet to send when in FO state.

Parameters

context	The compression context
ip_inner_context	The context of the inner IP header
tcp	The TCP header to compress

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_IR_DYN, ROHC_PACKET_TCP_RND_8, ROHC_PACKET_TCP_SEQ_8 and ROHC_PACKET_TCP_CO_COMMON in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ tcp_decide_FO_SO_packet()

static rohc_packet_t tcp_decide_FO_SO_packet	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	ip_inner_context,
		const struct tcphdr *const	tcp,
		const bool	crc7_at_least
	)

static

Decide which packet to send when in FO or SO state.

Parameters

context	The compression context
ip_inner_context	The context of the inner IP header
tcp	The TCP header to compress
crc7_at_least	Whether packet types with CRC strictly smaller than 8 bits are allowed or not

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_IR_DYN, ROHC_PACKET_TCP_RND_[1-8], ROHC_PACKET_TCP_SEQ_[1-8] and ROHC_PACKET_TCP_CO_COMMON in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ tcp_decide_FO_SO_packet_rnd()

static rohc_packet_t tcp_decide_FO_SO_packet_rnd	(	const struct rohc_comp_ctxt *const	context,
		const struct tcphdr *const	tcp,
		const bool	crc7_at_least
	)

static

Decide which rnd packet to send when in FO or SO state.

Parameters

context	The compression context
tcp	The TCP header to compress
crc7_at_least	Whether packet types with CRC strictly smaller than 8 bits are allowed or not

Returns

The packet type among ROHC_PACKET_TCP_SEQ_[1-8] and ROHC_PACKET_TCP_CO_COMMON in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ tcp_decide_FO_SO_packet_seq()

static rohc_packet_t tcp_decide_FO_SO_packet_seq	(	const struct rohc_comp_ctxt *const	context,
		const struct tcphdr *const	tcp,
		const bool	crc7_at_least
	)

static

Decide which seq packet to send when in FO or SO state.

Parameters

context	The compression context
tcp	The TCP header to compress
crc7_at_least	Whether packet types with CRC strictly smaller than 8 bits are allowed or not

Returns

The packet type among ROHC_PACKET_TCP_SEQ_[1-8] and ROHC_PACKET_TCP_CO_COMMON in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ tcp_decide_packet()

static rohc_packet_t tcp_decide_packet	(	struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	ip_inner_context,
		const struct tcphdr *const	tcp
	)

static

Decide which packet to send when in the different states.

Parameters

context	The compression context
ip_inner_context	The context of the inner IP header
tcp	The TCP header to compress

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_IR_DYN, ROHC_PACKET_TCP_RND_[1-8], ROHC_PACKET_TCP_SEQ_[1-8] and ROHC_PACKET_TCP_CO_COMMON in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ tcp_decide_SO_packet()

static rohc_packet_t tcp_decide_SO_packet	(	const struct rohc_comp_ctxt *const	context,
		const ip_context_t *const	ip_inner_context,
		const struct tcphdr *const	tcp
	)

static

Decide which packet to send when in SO state.

Parameters

context	The compression context
ip_inner_context	The context of the inner IP header
tcp	The TCP header to compress

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_IR_CR, ROHC_PACKET_IR_DYN, ROHC_PACKET_TCP_RND_[1-8], ROHC_PACKET_TCP_SEQ_[1-8] and ROHC_PACKET_TCP_CO_COMMON in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ tcp_decide_state()

static void tcp_decide_state	(	struct rohc_comp_ctxt *const	context,
		struct rohc_ts	pkt_time
	)

static

Decide the state that should be used for the next packet.

The three states are:

Initialization and Refresh (IR),
First Order (FO),
Second Order (SO).

Parameters

context	The compression context
pkt_time	The time of packet arrival

◆ tcp_detect_changes()

static bool tcp_detect_changes	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		ip_context_t **const	ip_inner_ctxt,
		const struct tcphdr **const	tcp
	)

static

Detect changes between packet and context.

Parameters

	context	The compression context to compare
	uncomp_pkt	The uncompressed packet to compare
[out]	ip_inner_ctxt	The context of the inner IP header
[out]	tcp	The TCP header found in uncompressed headers

Returns: true if changes were successfully detected, false if a problem occurred

◆ tcp_detect_changes_ipv6_exts()

static bool tcp_detect_changes_ipv6_exts	(	struct rohc_comp_ctxt *const	context,
		ip_context_t *const	ip_context,
		uint8_t *const	protocol,
		const uint8_t *const	exts,
		const size_t	max_exts_len,
		size_t *const	exts_nr,
		size_t *const	exts_len
	)

static

Detect changes about IPv6 extension headers between packet and context.

Parameters

	context	The compression context to compare
	ip_context	The specific IP compression context
[in,out]	protocol	in: the protocol type of the first extension header out: the protocol type of the transport header
	exts	The beginning of the IPv6 extension headers
	max_exts_len	The maximum length (in bytes) of the extension headers
[out]	exts_nr	The number of IPv6 extension headers
[out]	exts_len	The length (in bytes) of the IPv6 extension headers

Returns: true if changes were successfully detected, false if a problem occurred

◆ tcp_detect_ecn_used_behavior()

static void tcp_detect_ecn_used_behavior	(	struct rohc_comp_ctxt *const	context,
		const uint8_t	pkt_ecn_vals,
		const uint8_t	pkt_outer_dscp_changed,
		const uint8_t	pkt_res_val
	)

static

Detect the behavior of the IP/TCP ECN flags and TCP RES flags.

What value for ecn_used? The ecn_used controls the presence of IP ECN flags, TCP ECN flags, but also TCP RES flags.

Parameters

[in,out]	context	The compression context to compare
	pkt_ecn_vals	The values of the IP/ECN flags in the current packet
	pkt_outer_dscp_changed	Whether at least one DSCP changed in the current packet
	pkt_res_val	The TCP RES flags in the current packet

◆ tcp_detect_ip_id_behavior()

static tcp_ip_id_behavior_t tcp_detect_ip_id_behavior	(	const uint16_t	last_ip_id,
		const uint16_t	new_ip_id
	)

static

Detect the behavior of the IPv4 Identification field.

Parameters

last_ip_id	The IP-ID value of the previous packet (in HBO)
new_ip_id	The IP-ID value of the current packet (in HBO)

Returns: The IP-ID behavior among: IP_ID_BEHAVIOR_SEQ, IP_ID_BEHAVIOR_SEQ_SWAP, IP_ID_BEHAVIOR_ZERO, or IP_ID_BEHAVIOR_RAND

◆ tcp_encode_uncomp_fields()

static bool tcp_encode_uncomp_fields	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		const struct tcphdr *const	tcp
	)

static

Encode uncompressed fields with the corresponding encoding scheme.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
tcp	The uncompressed TCP header to encode

Returns: true in case of success, false otherwise

◆ tcp_encode_uncomp_ip_fields()

static bool tcp_encode_uncomp_ip_fields	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt
	)

static

Encode uncompressed IP fields with the corresponding encoding scheme.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode

Returns: true in case of success, false otherwise

◆ tcp_encode_uncomp_tcp_fields()

static bool tcp_encode_uncomp_tcp_fields	(	struct rohc_comp_ctxt *const	context,
		const struct tcphdr *const	tcp
	)

static

Encode uncompressed TCP fields with the corresponding encoding scheme.

Parameters

context	The compression context
tcp	The uncompressed TCP header to encode

Returns: true in case of success, false otherwise

◆ tcp_field_descr_change()

static void tcp_field_descr_change	(	const struct rohc_comp_ctxt *const	context,
		const char *const	name,
		const bool	changed,
		const size_t	nr_trans
	)

static

Print a debug trace for the field change.

Parameters

context	The compression context
name	The name of the field
changed	Whether the field changed or not
nr_trans	The number of times the field was transmitted since the last change

◆ tcp_field_descr_present()

static void tcp_field_descr_present	(	const struct rohc_comp_ctxt *const	context,
		const char *const	name,
		const bool	present
	)

static

Print a debug trace for the field presence.

Parameters

context	The compression context
name	The name of the field
present	Whether the field is present or not

Variable Documentation

◆ c_tcp_profile

const struct rohc_comp_profile c_tcp_profile

Initial value:

=
{
        .id             = ROHC_PROFILE_TCP,
        .protocol       = ROHC_IPPROTO_TCP,
        .create         = c_tcp_create_from_pkt,
        .clone          = c_tcp_create_from_ctxt,
        .destroy        = c_tcp_destroy,
        .check_profile  = c_tcp_check_profile,
        .check_context  = c_tcp_check_context,
        .encode         = c_tcp_encode,
        .reinit_context = rohc_comp_reinit_context,
        .feedback       = c_tcp_feedback,
}

Define the compression part of the TCP profile as described in the RFC 3095.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ TRACE_GOTO_CHOICE

Function Documentation

◆ c_tcp_build_co_common()

◆ c_tcp_build_rnd_1()

◆ c_tcp_build_rnd_2()

◆ c_tcp_build_rnd_3()

◆ c_tcp_build_rnd_4()

◆ c_tcp_build_rnd_5()

◆ c_tcp_build_rnd_6()

◆ c_tcp_build_rnd_7()

◆ c_tcp_build_rnd_8()

◆ c_tcp_build_seq_1()

◆ c_tcp_build_seq_2()

◆ c_tcp_build_seq_3()

◆ c_tcp_build_seq_4()

◆ c_tcp_build_seq_5()

◆ c_tcp_build_seq_6()

◆ c_tcp_build_seq_7()

◆ c_tcp_build_seq_8()

◆ c_tcp_check_context()

◆ c_tcp_check_profile()

◆ c_tcp_create_from_ctxt()

◆ c_tcp_create_from_pkt()

◆ c_tcp_destroy()

◆ c_tcp_encode()

◆ c_tcp_feedback()

◆ c_tcp_feedback_2()

◆ c_tcp_feedback_ack()

◆ c_tcp_get_next_msn()

◆ co_baseheader()

◆ code_CO_packet()

◆ code_IR_packet()

◆ rohc_comp_tcp_are_ipv6_exts_acceptable()

◆ tcp_decide_FO_packet()

◆ tcp_decide_FO_SO_packet()

◆ tcp_decide_FO_SO_packet_rnd()

◆ tcp_decide_FO_SO_packet_seq()

◆ tcp_decide_packet()

◆ tcp_decide_SO_packet()

◆ tcp_decide_state()

◆ tcp_detect_changes()

◆ tcp_detect_changes_ipv6_exts()

◆ tcp_detect_ecn_used_behavior()

◆ tcp_detect_ip_id_behavior()

◆ tcp_encode_uncomp_fields()

◆ tcp_encode_uncomp_ip_fields()

◆ tcp_encode_uncomp_tcp_fields()

◆ tcp_field_descr_change()

◆ tcp_field_descr_present()

Variable Documentation

◆ c_tcp_profile
