#include <d_tcp_defines.h>

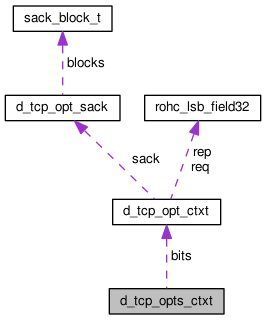

Collaboration diagram for d_tcp_opts_ctxt:
Data Fields | |
| size_t | nr |
| uint8_t | structure [ROHC_TCP_OPTS_MAX] |
| bool | expected_dynamic [ROHC_TCP_OPTS_MAX] |
| bool | found [ROHC_TCP_OPTS_MAX] |
| struct d_tcp_opt_ctxt | bits [MAX_TCP_OPTION_INDEX+1] |
Detailed Description
The decompression context for TCP options
Field Documentation
◆ bits
| struct d_tcp_opt_ctxt d_tcp_opts_ctxt::bits[MAX_TCP_OPTION_INDEX+1] |
The bits of TCP options extracted from the dynamic chain, the tail of co_common/seq_8/rnd_8 packets, or the irregular chain
◆ expected_dynamic
| bool d_tcp_opts_ctxt::expected_dynamic[ROHC_TCP_OPTS_MAX] |
Whether the TCP options are expected in the dynamic part?
◆ found
| bool d_tcp_opts_ctxt::found[ROHC_TCP_OPTS_MAX] |
The TCP options that were found or not
◆ nr
| size_t d_tcp_opts_ctxt::nr |
The number of options in the list of TCP options
◆ structure
| uint8_t d_tcp_opts_ctxt::structure[ROHC_TCP_OPTS_MAX] |
The structure of the list of TCP options
The documentation for this struct was generated from the following file:
