comp/schemes/tcp_ts.c File Reference

Handle encoding of TCP TimeStamp (TS) option. More...

#include "tcp_ts.h"
#include <string.h>

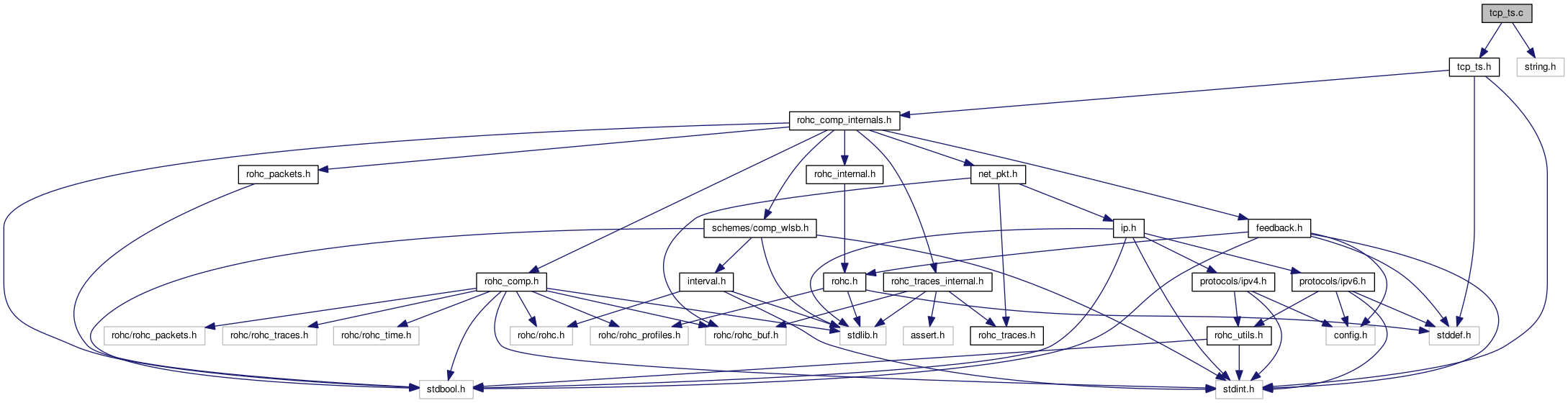

Include dependency graph for comp/schemes/tcp_ts.c:

Functions
bool	c_tcp_ts_lsb_code (const struct rohc_comp_ctxt *const context, const uint32_t timestamp, const size_t nr_bits_minus_1, const size_t nr_bits_0x40000, const size_t nr_bits_0x4000000, uint8_t *const rohc_data, const size_t rohc_max_len, size_t *const rohc_len)
	Compress the TimeStamp option value. More...

Detailed Description

Handle encoding of TCP TimeStamp (TS) option.

Author

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Function Documentation

c_tcp_ts_lsb_code()

bool c_tcp_ts_lsb_code	(	const struct rohc_comp_ctxt *const	context,
		const uint32_t	timestamp,
		const size_t	nr_bits_minus_1,
		const size_t	nr_bits_0x40000,
		const size_t	nr_bits_0x4000000,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len,
		size_t *const	rohc_len
	)

Compress the TimeStamp option value.

See RFC4996 page 65

Parameters

	context	The compression context
	timestamp	The timestamp value to compress
	nr_bits_minus_1	The minimal number of required bits for p = -1
	nr_bits_0x40000	The minimal number of required bits for p = 0x40000
	nr_bits_0x4000000	The minimal number of required bits for p = 0x4000000
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer
[out]	rohc_len	The length appended in the ROHC buffer

Returns

true if compression was successful, false otherwise
