ROHC compression context for the ROHCv2 IP-only profile. More...

#include "rohc_comp_internals.h"
#include "rohc_traces.h"
#include "rohc_traces_internal.h"
#include "rohc_debug.h"
#include "rohc_bit_ops.h"
#include "protocols/ip_numbers.h"
#include "protocols/ip.h"
#include "protocols/rfc5225.h"
#include "schemes/cid.h"
#include "schemes/ipv6_exts.h"
#include "schemes/ip_ctxt.h"
#include "schemes/comp_wlsb.h"
#include "schemes/ip_id_offset.h"
#include "schemes/rfc4996.h"
#include "crc.h"
#include <assert.h>

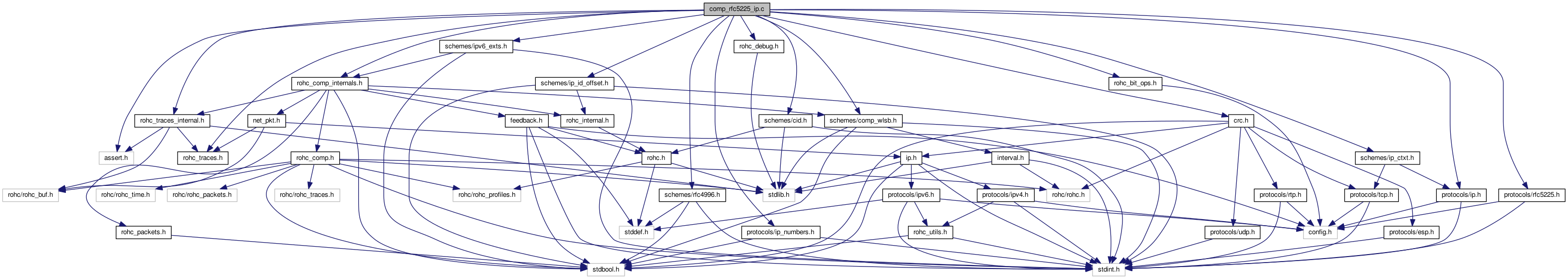

Include dependency graph for comp_rfc5225_ip.c:

Data Structures
struct	comp_rfc5225_tmp_variables
	Define the RFC5225-specific temporary variables in the profile compression context. More...

struct	rohc_comp_rfc5225_ip_ctxt

Functions
static bool	rohc_comp_rfc5225_ip_create (struct rohc_comp_ctxt const context, const struct net_pkt const packet)
	Create a new ROHCv2 IP-only context and initialize it thanks to the given uncompressed packet. More...

static void	rohc_comp_rfc5225_ip_destroy (struct rohc_comp_ctxt *const context)
	Destroy the ROHCv2 IP-only context. More...

static bool	rohc_comp_rfc5225_ip_check_profile (const struct rohc_comp const comp, const struct net_pkt const packet)
	Check if the given packet corresponds to the ROHCv2 IP-only profile. More...

static bool	rohc_comp_rfc5225_ip_check_context (const struct rohc_comp_ctxt const context, const struct net_pkt const packet, size_t *const cr_score)
	Check if the IP packet belongs to the given ROHCv2 IP-only context. More...

static int	rohc_comp_rfc5225_ip_encode (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type, size_t *const payload_offset)
	Encode an uncompressed packet according to a pattern decided by several different factors. More...

static bool	rohc_comp_rfc5225_ip_detect_changes (struct rohc_comp_ctxt const context, const struct net_pkt const uncomp_pkt, size_t *const payload_offset)
	Detect changes between packet and context. More...

static int	rohc_comp_rfc5225_ip_detect_changes_ipv4 (struct rohc_comp_ctxt const ctxt, ip_context_t const ip_ctxt, const struct ip_hdr *const ip_hdr, const bool is_innermost)
	Detect changes for the given IPv4 header between packet and context. More...

static int	rohc_comp_rfc5225_ip_detect_changes_ipv6 (struct rohc_comp_ctxt const ctxt, const ip_context_t const ip_ctxt, const struct ip_hdr *const ip_hdr, const bool is_innermost)
	Detect changes for the given IPv6 header between packet and context. More...

static int	rohc_comp_rfc5225_ip_code_IR_pkt (const struct rohc_comp_ctxt context, const struct ip_packet const ip, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len)
	Encode an IP packet as IR packet. More...

static int	rohc_comp_rfc5225_ip_code_co_repair_pkt (const struct rohc_comp_ctxt context, const struct ip_packet const ip, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const size_t payload_offset)
	Encode an IP packet as co_repair packet. More...

static int	rohc_comp_rfc5225_ip_code_CO_pkt (const struct rohc_comp_ctxt const context, const struct ip_packet const ip, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type, const size_t payload_offset)
	Encode an IP packet as CO packet. More...

static int	rohc_comp_rfc5225_ip_build_pt_0_crc3_pkt (const struct rohc_comp_ctxt const context, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a ROHCv2 pt_0_crc3 packet. More...

static int	rohc_comp_rfc5225_ip_build_pt_0_crc7_pkt (const struct rohc_comp_ctxt const context, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a ROHCv2 pt_0_crc7 packet. More...

static int	rohc_comp_rfc5225_ip_build_pt_1_seq_id_pkt (const struct rohc_comp_ctxt const context, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a ROHCv2 pt_1_seq_id packet. More...

static int	rohc_comp_rfc5225_ip_build_pt_2_seq_id_pkt (const struct rohc_comp_ctxt const context, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a ROHCv2 pt_2_seq_id packet. More...

static int	rohc_comp_rfc5225_ip_build_co_common_pkt (const struct rohc_comp_ctxt const context, const uint8_t crc, uint8_t const rohc_data, const size_t rohc_max_len)
	Build a ROHCv2 co_common packet. More...

static int	rohc_comp_rfc5225_ip_static_chain (const struct rohc_comp_ctxt const ctxt, const struct ip_packet const ip, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len)
	Code the static chain of an ROHCv2 IP-only IR packet. More...

static int	rohc_comp_rfc5225_ip_static_ipv4_part (const struct rohc_comp_ctxt const ctxt, const struct ipv4_hdr const ipv4, const bool is_innermost, uint8_t *const rohc_data, const size_t rohc_max_len)
	Build the static part of the IPv4 header. More...

static int	rohc_comp_rfc5225_ip_static_ipv6_part (const struct rohc_comp_ctxt const ctxt, const struct ipv6_hdr const ipv6, const bool is_innermost, uint8_t *const rohc_data, const size_t rohc_max_len)
	Build the static part of the IPv6 header. More...

static int	rohc_comp_rfc5225_ip_dyn_chain (const struct rohc_comp_ctxt const ctxt, const struct ip_packet const ip, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len)
	Code the dynamic chain of a ROHCv2 IP-only IR packet. More...

static int	rohc_comp_rfc5225_ip_dyn_ipv4_part (const struct rohc_comp_ctxt const ctxt, const ip_context_t const ip_ctxt, const struct ipv4_hdr const ipv4, const bool is_innermost, uint8_t const rohc_data, const size_t rohc_max_len)
	Build the dynamic part of the IPv4 header. More...

static int	rohc_comp_rfc5225_ip_dyn_ipv6_part (const struct rohc_comp_ctxt const ctxt, const ip_context_t const ip_ctxt, const struct ipv6_hdr const ipv6, const bool is_innermost, uint8_t const rohc_data, const size_t rohc_max_len)
	Build the dynamic part of the IPv6 header. More...

static int	rohc_comp_rfc5225_ip_irreg_chain (const struct rohc_comp_ctxt const ctxt, const struct ip_packet const ip, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len)
	Code the irregular chain of a ROHCv2 IP-only IR packet. More...

static int	rohc_comp_rfc5225_ip_irreg_ipv4_part (const struct rohc_comp_ctxt const ctxt, const ip_context_t const ip_ctxt, const struct ipv4_hdr const ipv4, const bool is_innermost, uint8_t const rohc_data, const size_t rohc_max_len)
	Build the irregular part of the IPv4 header. More...

static int	rohc_comp_rfc5225_ip_irreg_ipv6_part (const struct rohc_comp_ctxt const ctxt, const ip_context_t const ip_ctxt, const struct ipv6_hdr const ipv6, const bool is_innermost, uint8_t const rohc_data, const size_t rohc_max_len)
	Build the irregular part of the IPv6 header. More...

static bool	rohc_comp_rfc5225_ip_feedback (struct rohc_comp_ctxt const ctxt, const enum rohc_feedback_type feedback_type, const uint8_t const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when feedback is received. More...

static bool	rohc_comp_rfc5225_ip_feedback_2 (struct rohc_comp_ctxt const ctxt, const uint8_t const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when FEEDBACK-2 is received. More...

static void	rohc_comp_rfc5225_ip_feedback_ack (struct rohc_comp_ctxt *const ctxt, const uint32_t sn_bits, const size_t sn_bits_nr, const bool sn_not_valid)
	Perform the required actions after the reception of a positive ACK. More...

static void	rohc_comp_rfc5225_ip_decide_state (struct rohc_comp_ctxt *const context, const struct rohc_ts pkt_time)
	Decide the state that should be used for the next packet. More...

static rohc_packet_t	rohc_comp_rfc5225_ip_decide_pkt (struct rohc_comp_ctxt *const context)
	Decide which packet to send when in the different states. More...

static rohc_packet_t	rohc_comp_rfc5225_ip_decide_FO_pkt (const struct rohc_comp_ctxt *const ctxt)
	Decide which packet to send when in FO state. More...

static rohc_packet_t	rohc_comp_rfc5225_ip_decide_SO_pkt (const struct rohc_comp_ctxt *const ctxt)
	Decide which packet to send when in SO state. More...

static rohc_packet_t	rohc_comp_rfc5225_ip_decide_FO_SO_pkt (const struct rohc_comp_ctxt *const ctxt, const bool crc7_at_least)
	Decide which packet to send when in FO or SO state. More...

static bool	rohc_comp_rfc5225_is_msn_lsb_possible (const struct c_wlsb *const wlsb, const uint16_t value, const rohc_reordering_offset_t reorder_ratio, const size_t k)
	Define according to computed shift parameter if msn_lsb() is possible. More...

static bool	rohc_comp_rfc5225_is_ipid_sequential (const rohc_ip_id_behavior_t behavior)
	Whether the given IP-ID is sequential (swapped or not) More...

static bool	rohc_comp_rfc5225_is_seq_ipid_inferred (const ip_context_t *const ip_ctxt, const uint16_t new_ip_id)
	Whether the given IP-ID is inferred from SN. More...

Variables
const struct rohc_comp_profile	rohc_comp_rfc5225_ip_profile
	Define the compression part of the ROHCv2 IP-only profile as described in the RFC 5225. More...

Detailed Description

ROHC compression context for the ROHCv2 IP-only profile.

Author: Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com

Function Documentation

◆ rohc_comp_rfc5225_ip_build_co_common_pkt()

static int rohc_comp_rfc5225_ip_build_co_common_pkt	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a ROHCv2 co_common packet.

Parameters

	context	The compression context
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_build_pt_0_crc3_pkt()

static int rohc_comp_rfc5225_ip_build_pt_0_crc3_pkt	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a ROHCv2 pt_0_crc3 packet.

Parameters

	context	The compression context
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_build_pt_0_crc7_pkt()

static int rohc_comp_rfc5225_ip_build_pt_0_crc7_pkt	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a ROHCv2 pt_0_crc7 packet.

Parameters

	context	The compression context
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_build_pt_1_seq_id_pkt()

static int rohc_comp_rfc5225_ip_build_pt_1_seq_id_pkt	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a ROHCv2 pt_1_seq_id packet.

Parameters

	context	The compression context
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_build_pt_2_seq_id_pkt()

static int rohc_comp_rfc5225_ip_build_pt_2_seq_id_pkt	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t	crc,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build a ROHCv2 pt_2_seq_id packet.

Parameters

	context	The compression context
	crc	The CRC on the uncompressed headers
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_check_context()

static bool rohc_comp_rfc5225_ip_check_context	(	const struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet,
		size_t *const	cr_score
	)

static

Check if the IP packet belongs to the given ROHCv2 IP-only context.

Conditions are:

the number of IP headers must be the same as in context
IP version of all the IP headers must be the same as in context
IP packets must not be fragmented
the source and destination addresses of the two IP headers must match the ones in the context
IPv6 only: the Flow Label of all the IP headers must match the ones the context

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

	context	The compression context
	packet	The IP packet to check
[out]	cr_score	The score of the context for Context Replication (CR)

Returns: true if the IP packet belongs to the context false if it does not belong to the context

Todo:: TODO: the code that parses IP headers in IP/UDP/RTP profiles could probably be re-used (and maybe enhanced if needed)

◆ rohc_comp_rfc5225_ip_check_profile()

static bool rohc_comp_rfc5225_ip_check_profile	(	const struct rohc_comp *const	comp,
		const struct net_pkt *const	packet
	)

static

Check if the given packet corresponds to the ROHCv2 IP-only profile.

Conditions are:

the versions of the IP headers are all 4 or 6
none of the IP headers is an IP fragment

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

comp	The ROHC compressor
packet	The packet to check

Returns

Whether the packet corresponds to the profile:

true if the packet corresponds to the profile,
false if the packet does not correspond to the profile

◆ rohc_comp_rfc5225_ip_code_CO_pkt()

static int rohc_comp_rfc5225_ip_code_CO_pkt	(	const struct rohc_comp_ctxt *const	context,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		const rohc_packet_t	packet_type,
		const size_t	payload_offset
	)

static

Encode an IP packet as CO packet.

Parameters

context	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	The type of ROHC packet to create
payload_offset	The offset for the payload in the IP packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_code_co_repair_pkt()

static int rohc_comp_rfc5225_ip_code_co_repair_pkt	(	const struct rohc_comp_ctxt *	context,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		const size_t	payload_offset
	)

static

Encode an IP packet as co_repair packet.

        0   1   2   3   4   5   6   7
       --- --- --- --- --- --- --- ---
      :         Add-CID octet         : if for small CIDs and CID 1-15
      +---+---+---+---+---+---+---+---+
      | 1   1   1   1   1   0   1   1 | discriminator
      +---+---+---+---+---+---+---+---+
      :                               :
      /   0, 1, or 2 octets of CID    / 1-2 octets if large CIDs
      :                               :
      +---+---+---+---+---+---+---+---+
      |r1 |         CRC-7             |
      +---+---+---+---+---+---+---+---+
      |        r2         |   CRC-3   |
      +---+---+---+---+---+---+---+---+
      |                               |
      /         Dynamic chain         / variable length
      |                               |
       - - - - - - - - - - - - - - - -

Parameters

context	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
payload_offset	The offset for the payload in the IP packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_code_IR_pkt()

static int rohc_comp_rfc5225_ip_code_IR_pkt	(	const struct rohc_comp_ctxt *	context,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len
	)

static

Encode an IP packet as IR packet.

Parameters

context	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_create()

static bool rohc_comp_rfc5225_ip_create	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	packet
	)

static

Create a new ROHCv2 IP-only context and initialize it thanks to the given uncompressed packet.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
packet	The packet given to initialize the new context

Returns: true if successful, false otherwise

◆ rohc_comp_rfc5225_ip_decide_FO_pkt()

static rohc_packet_t rohc_comp_rfc5225_ip_decide_FO_pkt ( const struct rohc_comp_ctxt *const ctxt )

static

Decide which packet to send when in FO state.

Parameters

ctxt	The compression context

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_CO_REPAIR, ROHC_PACKET_CO_COMMON, ROHC_PACKET_NORTP_PT_0_CRC7, or ROHC_PACKET_NORTP_PT_2_SEQ_ID in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ rohc_comp_rfc5225_ip_decide_FO_SO_pkt()

static rohc_packet_t rohc_comp_rfc5225_ip_decide_FO_SO_pkt	(	const struct rohc_comp_ctxt *const	ctxt,
		const bool	crc7_at_least
	)

static

Decide which packet to send when in FO or SO state.

Parameters

ctxt	The compression context
crc7_at_least	Whether packet types with CRC strictly smaller than 7 bits are allowed or not

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_CO_REPAIR, ROHC_PACKET_CO_COMMON, ROHC_PACKET_PT_0_CRC3, ROHC_PACKET_NORTP_PT_0_CRC7, ROHC_PACKET_NORTP_PT_1_SEQ_ID, or ROHC_PACKET_NORTP_PT_2_SEQ_ID in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ rohc_comp_rfc5225_ip_decide_pkt()

static rohc_packet_t rohc_comp_rfc5225_ip_decide_pkt ( struct rohc_comp_ctxt *const context )

static

Decide which packet to send when in the different states.

Parameters

context The compression context

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_PT_0_CRC3, ROHC_PACKET_NORTP_PT_0_CRC7, ROHC_PACKET_NORTP_PT_1_SEQ_ID, or ROHC_PACKET_NORTP_PT_2_SEQ_ID in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ rohc_comp_rfc5225_ip_decide_SO_pkt()

static rohc_packet_t rohc_comp_rfc5225_ip_decide_SO_pkt ( const struct rohc_comp_ctxt *const ctxt )

static

Decide which packet to send when in SO state.

Parameters

ctxt	The compression context

Returns

The packet type among ROHC_PACKET_IR, ROHC_PACKET_CO_REPAIR, ROHC_PACKET_CO_COMMON, ROHC_PACKET_PT_0_CRC3, ROHC_PACKET_NORTP_PT_0_CRC7, ROHC_PACKET_NORTP_PT_1_SEQ_ID, or ROHC_PACKET_NORTP_PT_2_SEQ_ID in case of success
ROHC_PACKET_UNKNOWN in case of failure

◆ rohc_comp_rfc5225_ip_decide_state()

static void rohc_comp_rfc5225_ip_decide_state	(	struct rohc_comp_ctxt *const	context,
		const struct rohc_ts	pkt_time
	)

static

Decide the state that should be used for the next packet.

Parameters

context	The compression context
pkt_time	The time of packet arrival

◆ rohc_comp_rfc5225_ip_destroy()

static void rohc_comp_rfc5225_ip_destroy ( struct rohc_comp_ctxt *const context )

static

Destroy the ROHCv2 IP-only context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context The ROHCv2 IP-only compression context to destroy

◆ rohc_comp_rfc5225_ip_detect_changes()

static bool rohc_comp_rfc5225_ip_detect_changes	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		size_t *const	payload_offset
	)

static

Detect changes between packet and context.

Parameters

	context	The compression context to compare
	uncomp_pkt	The uncompressed packet to compare
[out]	payload_offset	The offset for the payload in the uncompressed packet

Returns: true if changes were successfully detected, false if a problem occurred

◆ rohc_comp_rfc5225_ip_detect_changes_ipv4()

static int rohc_comp_rfc5225_ip_detect_changes_ipv4	(	struct rohc_comp_ctxt *const	ctxt,
		ip_context_t *const	ip_ctxt,
		const struct ip_hdr *const	ip_hdr,
		const bool	is_innermost
	)

static

Detect changes for the given IPv4 header between packet and context.

Parameters

ctxt	The compression context
ip_ctxt	The IPv4 context to compare
ip_hdr	The IPv4 header to compare
is_innermost	Whether the IPv4 header is the innermost of all IP headers

Returns: The length of the IPv4 header, -1 if a problem occurred

◆ rohc_comp_rfc5225_ip_detect_changes_ipv6()

static int rohc_comp_rfc5225_ip_detect_changes_ipv6	(	struct rohc_comp_ctxt *const	ctxt,
		const ip_context_t *const	ip_ctxt,
		const struct ip_hdr *const	ip_hdr,
		const bool	is_innermost
	)

static

Detect changes for the given IPv6 header between packet and context.

Parameters

ctxt	The compression context
ip_ctxt	The IPv6 context to compare
ip_hdr	The IPv6 header to compare
is_innermost	Whether the IPv6 header is the innermost of all IP headers

Returns: The length of the IPv6 header, -1 if a problem occurred

◆ rohc_comp_rfc5225_ip_dyn_chain()

static int rohc_comp_rfc5225_ip_dyn_chain	(	const struct rohc_comp_ctxt *const	ctxt,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len
	)

static

Code the dynamic chain of a ROHCv2 IP-only IR packet.

Parameters

ctxt	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_dyn_ipv4_part()

static int rohc_comp_rfc5225_ip_dyn_ipv4_part	(	const struct rohc_comp_ctxt *const	ctxt,
		const ip_context_t *const	ip_ctxt,
		const struct ipv4_hdr *const	ipv4,
		const bool	is_innermost,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the dynamic part of the IPv4 header.

Parameters

	ctxt	The compression context
	ip_ctxt	The specific IP compression context
	ipv4	The IPv4 header
	is_innermost	true if the IP header is the innermost of the packet, false otherwise
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_dyn_ipv6_part()

static int rohc_comp_rfc5225_ip_dyn_ipv6_part	(	const struct rohc_comp_ctxt *const	ctxt,
		const ip_context_t *const	ip_ctxt,
		const struct ipv6_hdr *const	ipv6,
		const bool	is_innermost,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the dynamic part of the IPv6 header.

Parameters

	ctxt	The compression context
	ip_ctxt	The specific IP compression context
	ipv6	The IPv6 header
	is_innermost	true if the IP header is the innermost of the packet, false otherwise
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_encode()

static int rohc_comp_rfc5225_ip_encode	(	struct rohc_comp_ctxt *const	context,
		const struct net_pkt *const	uncomp_pkt,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type,
		size_t *const	payload_offset
	)

static

Encode an uncompressed packet according to a pattern decided by several different factors.

Decide state
Decide which packet type to send.
Code packet
Update context

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
uncomp_pkt	The uncompressed packet to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created
payload_offset	OUT: The offset for the payload in the uncompressed packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_feedback()

static bool rohc_comp_rfc5225_ip_feedback	(	struct rohc_comp_ctxt *const	ctxt,
		const enum rohc_feedback_type	feedback_type,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len
	)

static

Update the profile when feedback is received.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

ctxt	The compression context
feedback_type	The feedback type among ROHC_FEEDBACK_1 and ROHC_FEEDBACK_2
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns: true if the feedback was successfully handled, false if the feedback could not be taken into account

◆ rohc_comp_rfc5225_ip_feedback_2()

static bool rohc_comp_rfc5225_ip_feedback_2	(	struct rohc_comp_ctxt *const	ctxt,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len
	)

static

Update the profile when FEEDBACK-2 is received.

Parameters

ctxt	The compression context
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns: true if the feedback was successfully handled, false if the feedback could not be taken into account

◆ rohc_comp_rfc5225_ip_feedback_ack()

static void rohc_comp_rfc5225_ip_feedback_ack	(	struct rohc_comp_ctxt *const	ctxt,
		const uint32_t	sn_bits,
		const size_t	sn_bits_nr,
		const bool	sn_not_valid
	)

static

Perform the required actions after the reception of a positive ACK.

Parameters

ctxt	The compression context that received a positive ACK
sn_bits	The LSB bits of the acknowledged SN
sn_bits_nr	The number of LSB bits of the acknowledged SN
sn_not_valid	Whether the received SN may be considered as valid or not

◆ rohc_comp_rfc5225_ip_irreg_chain()

static int rohc_comp_rfc5225_ip_irreg_chain	(	const struct rohc_comp_ctxt *const	ctxt,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len
	)

static

Code the irregular chain of a ROHCv2 IP-only IR packet.

Parameters

ctxt	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_irreg_ipv4_part()

static int rohc_comp_rfc5225_ip_irreg_ipv4_part	(	const struct rohc_comp_ctxt *const	ctxt,
		const ip_context_t *const	ip_ctxt,
		const struct ipv4_hdr *const	ipv4,
		const bool	is_innermost,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the irregular part of the IPv4 header.

Parameters

	ctxt	The compression context
	ip_ctxt	The specific IP compression context
	ipv4	The IPv4 header
	is_innermost	true if the IP header is the innermost of the packet, false otherwise
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_irreg_ipv6_part()

static int rohc_comp_rfc5225_ip_irreg_ipv6_part	(	const struct rohc_comp_ctxt *const	ctxt,
		const ip_context_t *const	ip_ctxt,
		const struct ipv6_hdr *const	ipv6,
		const bool	is_innermost,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the irregular part of the IPv6 header.

Parameters

	ctxt	The compression context
	ip_ctxt	The specific IP compression context
	ipv6	The IPv6 header
	is_innermost	true if the IP header is the innermost of the packet, false otherwise
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_static_chain()

static int rohc_comp_rfc5225_ip_static_chain	(	const struct rohc_comp_ctxt *const	ctxt,
		const struct ip_packet *const	ip,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len
	)

static

Code the static chain of an ROHCv2 IP-only IR packet.

Parameters

ctxt	The compression context
ip	The outer IP header
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc5225_ip_static_ipv4_part()

static int rohc_comp_rfc5225_ip_static_ipv4_part	(	const struct rohc_comp_ctxt *const	ctxt,
		const struct ipv4_hdr *const	ipv4,
		const bool	is_innermost,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the static part of the IPv4 header.

Parameters

	ctxt	The compression context
	ipv4	The IPv4 header
	is_innermost	Whether the IPv4 header is the innermost IP header
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_ip_static_ipv6_part()

static int rohc_comp_rfc5225_ip_static_ipv6_part	(	const struct rohc_comp_ctxt *const	ctxt,
		const struct ipv6_hdr *const	ipv6,
		const bool	is_innermost,
		uint8_t *const	rohc_data,
		const size_t	rohc_max_len
	)

static

Build the static part of the IPv6 header.

Parameters

	ctxt	The compression context
	ipv6	The IPv6 header
	is_innermost	Whether the IPv6 header is the innermost IP header
[out]	rohc_data	The ROHC packet being built
	rohc_max_len	The max remaining length in the ROHC buffer

Returns: The length appended in the ROHC buffer if positive, -1 in case of error

◆ rohc_comp_rfc5225_is_ipid_sequential()

static bool rohc_comp_rfc5225_is_ipid_sequential ( const rohc_ip_id_behavior_t behavior )

static

Whether the given IP-ID is sequential (swapped or not)

Parameters

behavior The IP-ID behavior

Returns: true if the given IP-ID behavior is sequential or sequential swapped, false otherwise

◆ rohc_comp_rfc5225_is_msn_lsb_possible()

static bool rohc_comp_rfc5225_is_msn_lsb_possible	(	const struct c_wlsb *const	wlsb,
		const uint16_t	value,
		const rohc_reordering_offset_t	reorder_ratio,
		const size_t	k
	)

static

Define according to computed shift parameter if msn_lsb() is possible.

Parameters

wlsb	The W-LSB object
value	The value to encode using the LSB algorithm
reorder_ratio	The reordering ratio
k	The number of bits for encoding

Returns: true if msn_lsb is possible or not

◆ rohc_comp_rfc5225_is_seq_ipid_inferred()

static bool rohc_comp_rfc5225_is_seq_ipid_inferred	(	const ip_context_t *const	ip_ctxt,
		const uint16_t	new_ip_id
	)

static

Whether the given IP-ID is inferred from SN.

The given IP-ID is inferred from SN if:

the IP header is IPv4,
the IP-ID behavior is sequential or sequential swapped,
the new IP-ID value increases from the last IP-ID by the same delta as the MSN.

For the IP-only profile, the MSN is generated by the compressor, so the MSN delta is always 1.

Parameters

ip_ctxt	The context for the given IP header
new_ip_id	The new value of the IP-ID

Returns: true if the given IP-ID is sequential and inferred from MSN, false otherwise

Variable Documentation

◆ rohc_comp_rfc5225_ip_profile

const struct rohc_comp_profile rohc_comp_rfc5225_ip_profile

Initial value:

=
{
        .id             = ROHCv2_PROFILE_IP,
        .protocol       = 0,
        .create         = rohc_comp_rfc5225_ip_create,
        .clone          = NULL,
        .destroy        = rohc_comp_rfc5225_ip_destroy,
        .check_profile  = rohc_comp_rfc5225_ip_check_profile,
        .check_context  = rohc_comp_rfc5225_ip_check_context,
        .encode         = rohc_comp_rfc5225_ip_encode,
        .feedback       = rohc_comp_rfc5225_ip_feedback,
}

Define the compression part of the ROHCv2 IP-only profile as described in the RFC 5225.

Data Structures

Functions

Variables

Detailed Description

Function Documentation

◆ rohc_comp_rfc5225_ip_build_co_common_pkt()

◆ rohc_comp_rfc5225_ip_build_pt_0_crc3_pkt()

◆ rohc_comp_rfc5225_ip_build_pt_0_crc7_pkt()

◆ rohc_comp_rfc5225_ip_build_pt_1_seq_id_pkt()

◆ rohc_comp_rfc5225_ip_build_pt_2_seq_id_pkt()

◆ rohc_comp_rfc5225_ip_check_context()

◆ rohc_comp_rfc5225_ip_check_profile()

◆ rohc_comp_rfc5225_ip_code_CO_pkt()

◆ rohc_comp_rfc5225_ip_code_co_repair_pkt()

◆ rohc_comp_rfc5225_ip_code_IR_pkt()

◆ rohc_comp_rfc5225_ip_create()

◆ rohc_comp_rfc5225_ip_decide_FO_pkt()

◆ rohc_comp_rfc5225_ip_decide_FO_SO_pkt()

◆ rohc_comp_rfc5225_ip_decide_pkt()

◆ rohc_comp_rfc5225_ip_decide_SO_pkt()

◆ rohc_comp_rfc5225_ip_decide_state()

◆ rohc_comp_rfc5225_ip_destroy()

◆ rohc_comp_rfc5225_ip_detect_changes()

◆ rohc_comp_rfc5225_ip_detect_changes_ipv4()

◆ rohc_comp_rfc5225_ip_detect_changes_ipv6()

◆ rohc_comp_rfc5225_ip_dyn_chain()

◆ rohc_comp_rfc5225_ip_dyn_ipv4_part()

◆ rohc_comp_rfc5225_ip_dyn_ipv6_part()

◆ rohc_comp_rfc5225_ip_encode()

◆ rohc_comp_rfc5225_ip_feedback()

◆ rohc_comp_rfc5225_ip_feedback_2()

◆ rohc_comp_rfc5225_ip_feedback_ack()

◆ rohc_comp_rfc5225_ip_irreg_chain()

◆ rohc_comp_rfc5225_ip_irreg_ipv4_part()

◆ rohc_comp_rfc5225_ip_irreg_ipv6_part()

◆ rohc_comp_rfc5225_ip_static_chain()

◆ rohc_comp_rfc5225_ip_static_ipv4_part()

◆ rohc_comp_rfc5225_ip_static_ipv6_part()

◆ rohc_comp_rfc5225_is_ipid_sequential()

◆ rohc_comp_rfc5225_is_msn_lsb_possible()

◆ rohc_comp_rfc5225_is_seq_ipid_inferred()

Variable Documentation

◆ rohc_comp_rfc5225_ip_profile
