ROHC packets for the ROHCv2 profiles defined in RFC5225. More...
#include <stdint.h>#include "config.h"
Include dependency graph for rfc5225.h:

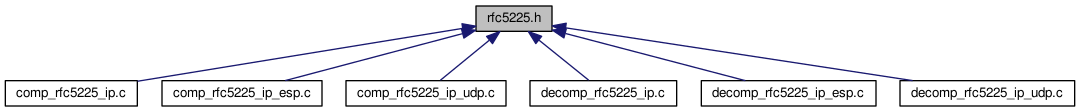

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | ipv4_static_t |
| The IPv4 static part. More... | |
| struct | ipv4_endpoint_innermost_dynamic_noipid_t |
| The IPv4 dynamic part for the innermost IP header of the IP-only profile, IP-ID not present. More... | |
| struct | ipv4_endpoint_innermost_dynamic_ipid_t |
| The IPv4 dynamic part for the innermost IP header of the IP-only profile, IP-ID present. More... | |
| struct | ipv4_regular_dynamic_noipid_t |
| The regular IPv4 dynamic part, IP-ID not present. More... | |
| struct | ipv4_regular_dynamic_ipid_t |
| The regular IPv4 dynamic part, IP-ID present. More... | |
| struct | ipv6_static_nofl_t |
| The IPv6 static part, null flow_label encoded with 1 bit. More... | |
| struct | ipv6_static_fl_t |
| The IPv6 static part, flow_label encoded with 1+20 bit. More... | |
| struct | ipv6_endpoint_dynamic_t |
| The IPv6 dynamic part for the innermost IP header of the IP-only profile. More... | |
| struct | ipv6_regular_dynamic_t |
| The IPv6 dynamic part for any outer IP header of the IP-only profile and all IP headers of the other ROHCv2 profiles. More... | |
| struct | udp_static_t |
| The UDP static part. More... | |
| struct | udp_endpoint_dynamic_t |
| The UDP endpoint dynamic part. More... | |
| struct | udp_with_checksum_irregular_t |
| The UDP irregular chain with checksum. More... | |
| struct | esp_static_t |
| The ESP static part. More... | |
| struct | esp_dynamic_t |
| The ESP dynamic part. More... | |
| struct | co_repair_crc_t |
| The CRC part of the co_repair packet format. More... | |
| struct | pt_0_crc3_t |
| The pt_0_crc3 packet format. More... | |
| struct | pt_0_crc7_t |
| The pt_0_crc7 packet format. More... | |
| struct | pt_1_seq_id_t |
| The pt_1_seq_id packet format. More... | |
| struct | pt_2_seq_id_t |
| The pt_2_seq_id packet format. More... | |
| struct | co_common_base_t |
| The fixed part of the co_common packet format. More... | |
| struct | profile_2_3_4_flags_t |
| The profile_2_3_4_flags_enc packet part. More... | |
Macros | |
| #define | ROHC_PACKET_TYPE_IR 0xFD |
| #define | ROHC_PACKET_TYPE_CO_REPAIR 0xFB |
Typedefs | |
| typedef ipv4_regular_dynamic_noipid_t | ipv4_outer_dynamic_noipid_t |
| The IPv4 dynamic part for any outer IP header, IP-ID not present. More... | |
| typedef ipv4_regular_dynamic_ipid_t | ipv4_outer_dynamic_ipid_t |
| The IPv4 dynamic part for any outer IP header, IP-ID present. More... | |
Detailed Description
ROHC packets for the ROHCv2 profiles defined in RFC5225.
Macro Definition Documentation
◆ ROHC_PACKET_TYPE_CO_REPAIR
| #define ROHC_PACKET_TYPE_CO_REPAIR 0xFB |
◆ ROHC_PACKET_TYPE_IR
| #define ROHC_PACKET_TYPE_IR 0xFD |
Typedef Documentation
◆ ipv4_outer_dynamic_ipid_t
The IPv4 dynamic part for any outer IP header, IP-ID present.
See RFC5225 page 62
◆ ipv4_outer_dynamic_noipid_t
The IPv4 dynamic part for any outer IP header, IP-ID not present.
See RFC5225 page 62
