rohc_list.h File Reference

Define list compression with its function. More...

#include "protocols/ipv6.h"
#include "protocols/ip_numbers.h"
#include <stdlib.h>

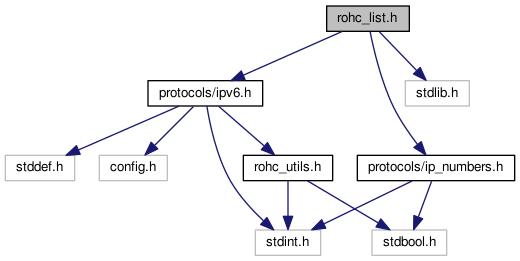

Include dependency graph for rohc_list.h:

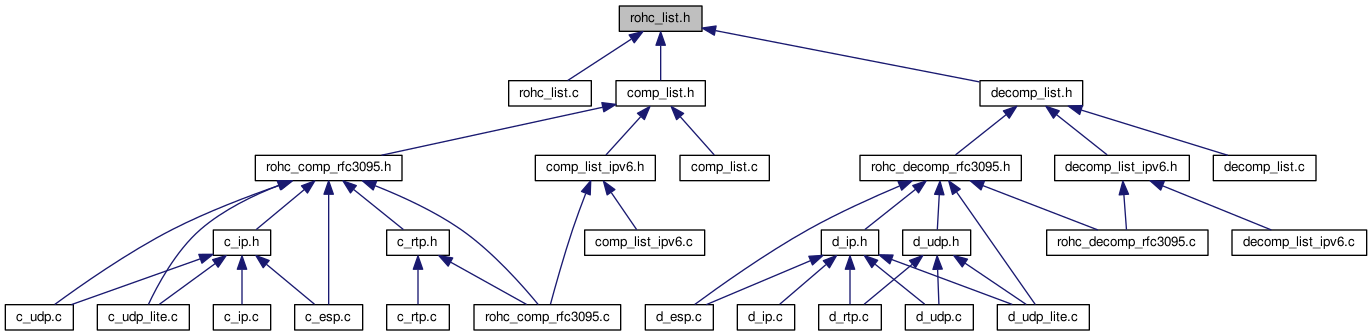

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rohc_list
	Define a list for compression. More...
struct	rohc_list_item
	A list item. More...

Macros
#define	ROHC_LIST_MAX_ITEM   16U
#define	ROHC_LIST_GEN_ID_MAX   0xffU
#define	ROHC_LIST_GEN_ID_ANON   (ROHC_LIST_GEN_ID_MAX + 1)
#define	ROHC_LIST_GEN_ID_NONE   (ROHC_LIST_GEN_ID_MAX + 2)
#define	ROHC_LIST_ITEMS_MAX   15U
#define	ROHC_LIST_ITEM_DATA_MAX   2048U
	The maximum length (in bytes) of item data. More...

Typedefs
typedef bool(*	rohc_list_item_cmp) (const struct rohc_list_item *const item, const uint8_t ext_type, const uint8_t *const ext_data, const size_t ext_len)

Enumerations
enum	ext_header_version { HBH = ROHC_IPPROTO_HOPOPTS, RTHDR = ROHC_IPPROTO_ROUTING, AH = ROHC_IPPROTO_AH, DEST = ROHC_IPPROTO_DSTOPTS }
	Header version. More...

Functions
void	rohc_list_reset (struct rohc_list *const list)
	Reset the state of the given compressed list. More...
bool	rohc_list_equal (const struct rohc_list *const list1, const struct rohc_list *const list2)
	Are the two given lists equal? More...
bool	rohc_list_supersede (const struct rohc_list *const large, const struct rohc_list *const small)
	Does the first list contains the second list? More...
void	rohc_list_item_reset (struct rohc_list_item *const list_item)
	Reset the given list item. More...
int	rohc_list_item_update_if_changed (rohc_list_item_cmp cmp_item, struct rohc_list_item *const list_item, const uint8_t item_type, const uint8_t *const item_data, const size_t item_len)
	Update the content of the given compressed item if it changed. More...

Detailed Description

Define list compression with its function.

Author

Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Macro Definition Documentation

ROHC_LIST_GEN_ID_ANON

#define ROHC_LIST_GEN_ID_ANON   (ROHC_LIST_GEN_ID_MAX + 1)

ROHC_LIST_GEN_ID_MAX

#define ROHC_LIST_GEN_ID_MAX   0xffU

The largest gen_id value

ROHC_LIST_GEN_ID_NONE

#define ROHC_LIST_GEN_ID_NONE   (ROHC_LIST_GEN_ID_MAX + 2)

ROHC_LIST_ITEM_DATA_MAX

#define ROHC_LIST_ITEM_DATA_MAX   2048U

The maximum length (in bytes) of item data.

Sized for IPv6 extension headers that may reach: (0xff + 1) * 8 = 2048 bytes

ROHC_LIST_ITEMS_MAX

#define ROHC_LIST_ITEMS_MAX   15U

The maximum number of items in a list (required by packet formats)

ROHC_LIST_MAX_ITEM

#define ROHC_LIST_MAX_ITEM   16U

The maximum number of items in compressed lists

Typedef Documentation

rohc_list_item_cmp

typedef bool(* rohc_list_item_cmp) (const struct rohc_list_item *const item, const uint8_t ext_type, const uint8_t *const ext_data, const size_t ext_len)

The handler used to compare two items

Enumeration Type Documentation

ext_header_version

enum ext_header_version

Header version.

Enumerator
HBH	Hop by hop header
RTHDR	Routing header
AH	AH header
DEST	Destination header

Function Documentation

rohc_list_equal()

bool rohc_list_equal	(	const struct rohc_list *const	list1,
		const struct rohc_list *const	list2
	)

Are the two given lists equal?

We compare only the list structure, not the list content. Two lists with the same items in the same order, but with different content, are considered equals.

Parameters

list1	The first list to compare
list2	The other list to compare

Returns

true if the two lists are equal, false if they aren't

rohc_list_item_reset()

void rohc_list_item_reset

(

struct rohc_list_item *const

list_item

)

Reset the given list item.

Parameters

list_item

The item to reset

rohc_list_item_update_if_changed()

int rohc_list_item_update_if_changed	(	rohc_list_item_cmp	cmp_item,
		struct rohc_list_item *const	list_item,
		const uint8_t	item_type,
		const uint8_t *const	item_data,
		const size_t	item_len
	)

Update the content of the given compressed item if it changed.

Parameters

cmp_item	The callback function to compare two items
list_item	The item to update
item_type	The type of the item to update
item_data	The data to update item with
item_len	The data length (in bytes)

Returns

0 if the item doesn't need to be updated, 1 if the update was successful, -1 if a problem occurred

rohc_list_reset()

void rohc_list_reset

(

struct rohc_list *const

list

)

Reset the state of the given compressed list.

Functions prototypes

Parameters

list	The list to reset

rohc_list_supersede()

bool rohc_list_supersede	(	const struct rohc_list *const	large,
		const struct rohc_list *const	small
	)

Does the first list contains the second list?

We compare only the list structure, not the list content. A list supersedes another list if all the items of the second list are present in the first list in the same order.

Parameters

large	The large list that should supersedes the small list
small	The small list that should be superseded by the large list

Returns

true if the large list supersedes the small list
