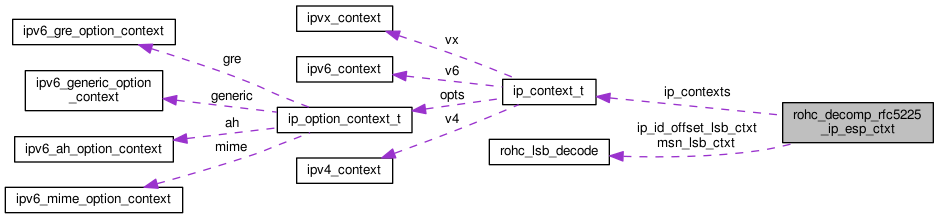

Collaboration diagram for rohc_decomp_rfc5225_ip_esp_ctxt:
Data Fields | |
| struct rohc_lsb_decode | msn_lsb_ctxt |
| struct rohc_lsb_decode | ip_id_offset_lsb_ctxt |
| rohc_reordering_offset_t | reorder_ratio |
| size_t | ip_contexts_nr |
| ip_context_t | ip_contexts [ROHC_MAX_IP_HDRS] |
| uint32_t | esp_spi |
Detailed Description
Define the ROHCv2 IP/ESP part of the decompression profile context
Field Documentation
◆ esp_spi
| uint32_t rohc_decomp_rfc5225_ip_esp_ctxt::esp_spi |
The ESP Security Parameters Index (SPI)
◆ ip_contexts
| ip_context_t rohc_decomp_rfc5225_ip_esp_ctxt::ip_contexts[ROHC_MAX_IP_HDRS] |
◆ ip_contexts_nr
| size_t rohc_decomp_rfc5225_ip_esp_ctxt::ip_contexts_nr |
◆ ip_id_offset_lsb_ctxt
| struct rohc_lsb_decode rohc_decomp_rfc5225_ip_esp_ctxt::ip_id_offset_lsb_ctxt |
The LSB decoding context of innermost IP-ID offset
◆ msn_lsb_ctxt
| struct rohc_lsb_decode rohc_decomp_rfc5225_ip_esp_ctxt::msn_lsb_ctxt |
The LSB decoding context of MSN
◆ reorder_ratio
| rohc_reordering_offset_t rohc_decomp_rfc5225_ip_esp_ctxt::reorder_ratio |
The reorder ratio that compressor sent to decompressor
The documentation for this struct was generated from the following file:
