Scaled RTP Timestamp encoding. More...

#include "scaled_rtp_ts.h"
#include "sdvl.h"
#include "rohc_traces_internal.h"
#include <stdlib.h>
#include <assert.h>

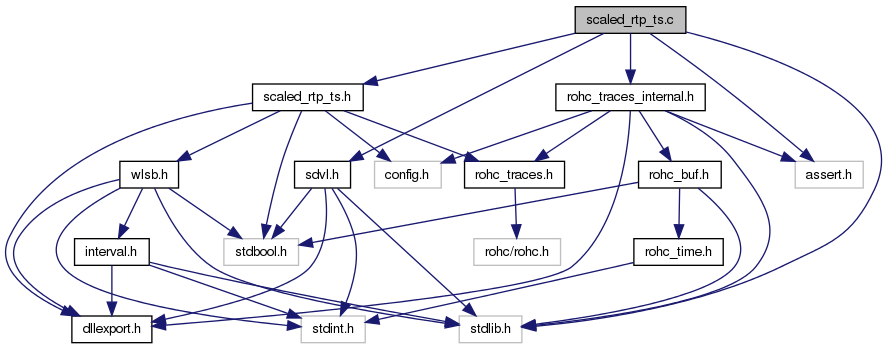

Include dependency graph for comp/schemes/scaled_rtp_ts.c:

Defines
#define	ts_debug(entity_struct, format,...)
Functions
bool	c_create_sc (struct ts_sc_comp const ts_sc, const size_t wlsb_window_width, rohc_trace_callback_t trace_cb, rohc_trace_callback2_t trace_cb2, void const trace_cb_priv)
	Create the ts_sc_comp object.
void	c_destroy_sc (struct ts_sc_comp *const ts_sc)
	Destroy the ts_sc_comp object.
void	c_add_ts (struct ts_sc_comp *const ts_sc, const uint32_t ts, const uint16_t sn)
	Store the new TS, calculate new values and update the state.
bool	nb_bits_unscaled (const struct ts_sc_comp const ts_sc, size_t const bits_nr)
	Return the number of bits needed to encode unscaled TS.
void	add_unscaled (const struct ts_sc_comp *const ts_sc, const uint16_t sn)
	Add a new unscaled TS value to the ts_sc_comp object.
bool	nb_bits_scaled (const struct ts_sc_comp const ts_sc, size_t const bits_nr)
	Return the number of bits needed to encode TS_SCALED.
void	add_scaled (const struct ts_sc_comp *const ts_sc, const uint16_t sn)
	Add a new TS_SCALED value to the ts_sc_comp object.
uint32_t	get_ts_stride (const struct ts_sc_comp *const ts_sc)
	Return the TS_STRIDE value.
uint32_t	get_ts_scaled (const struct ts_sc_comp *const ts_sc)
	Return the TS_SCALED value.
uint32_t	get_ts_unscaled (const struct ts_sc_comp *const ts_sc)
	Return the unscaled TS value.
bool	rohc_ts_sc_is_deducible (const struct ts_sc_comp *const ts_sc)
	Whether TimeStamp (TS) is deducible from the Sequence Number (SN) or not.

Detailed Description

Scaled RTP Timestamp encoding.

Author:: David Moreau from TAS; Didier Barvaux <didier.barvaux@toulouse.viveris.com>; Didier Barvaux <didier@barvaux.org>

Define Documentation

#define ts_debug	(	entity_struct,
		format,
		...
	)

Value:

rohc_debug(entity_struct, ROHC_TRACE_COMP, ROHC_PROFILE_GENERAL, \
                   format, ##__VA_ARGS__)

Print debug messages for the ts_sc_comp module

Function Documentation

void add_scaled	(	const struct ts_sc_comp *const	ts_sc,
		const uint16_t	sn
	)

Add a new TS_SCALED value to the ts_sc_comp object.

Parameters:

ts_sc	The ts_sc_comp object
sn	The Sequence Number

void add_unscaled	(	const struct ts_sc_comp *const	ts_sc,
		const uint16_t	sn
	)

Add a new unscaled TS value to the ts_sc_comp object.

Parameters:

ts_sc	The ts_sc_comp object
sn	The Sequence Number

void c_add_ts	(	struct ts_sc_comp *const	ts_sc,
		const uint32_t	ts,
		const uint16_t	sn
	)

Store the new TS, calculate new values and update the state.

Parameters:

ts_sc	The ts_sc_comp object
ts	The timestamp to add
sn	The sequence number of the RTP packet

bool c_create_sc	(	struct ts_sc_comp *const	ts_sc,
		const size_t	wlsb_window_width,
		rohc_trace_callback_t	trace_cb,
		rohc_trace_callback2_t	trace_cb2,
		void *const	trace_cb_priv
	)

Create the ts_sc_comp object.

Parameters:

ts_sc	The ts_sc_comp object to create
wlsb_window_width	The width of the W-LSB sliding window to use for TS_STRIDE (must be > 0)
trace_cb	The old trace callback
trace_cb2	The new trace callback
trace_cb_priv	An optional private context for the trace callback, may be NULL

Returns:: true if creation is successful, false otherwise

void c_destroy_sc ( struct ts_sc_comp *const ts_sc )

Destroy the ts_sc_comp object.

Parameters:

ts_sc The ts_sc_comp object to destroy

uint32_t get_ts_scaled ( const struct ts_sc_comp *const ts_sc )

Return the TS_SCALED value.

Parameters:

ts_sc The ts_sc_comp object

Returns:: The TS_SCALED value

uint32_t get_ts_stride ( const struct ts_sc_comp *const ts_sc )

Return the TS_STRIDE value.

Parameters:

ts_sc The ts_sc_comp object

Returns:: TS_STRIDE value

uint32_t get_ts_unscaled ( const struct ts_sc_comp *const ts_sc )

Return the unscaled TS value.

Parameters:

ts_sc The ts_sc_comp object

Returns:: The unscaled TS value

bool nb_bits_scaled	(	const struct ts_sc_comp *const	ts_sc,
		size_t *const	bits_nr
	)

Return the number of bits needed to encode TS_SCALED.

Parameters:

ts_sc	The ts_sc_comp object
bits_nr	OUT: The number of bits needed

Returns:: true in case of success, false if the minimal number of bits can not be found

bool nb_bits_unscaled	(	const struct ts_sc_comp *const	ts_sc,
		size_t *const	bits_nr
	)

Return the number of bits needed to encode unscaled TS.

Parameters:

ts_sc	The ts_sc_comp object
bits_nr	OUT: The number of bits needed

Returns:: true in case of success, false if the minimal number of bits can not be found

bool rohc_ts_sc_is_deducible ( const struct ts_sc_comp *const ts_sc )

Whether TimeStamp (TS) is deducible from the Sequence Number (SN) or not.

Parameters:

ts_sc The TS SCALED compression context

Returns:: true if TS is deducible from SN, false otherwise
