rohc_decomp.h File Reference

ROHC decompression routines. More...

#include "rohc.h"
#include "rohc_comp.h"

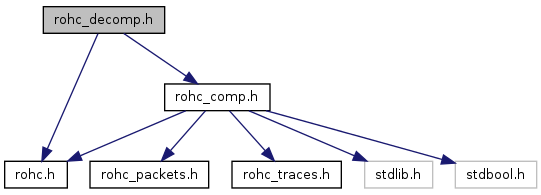

Include dependency graph for rohc_decomp.h:

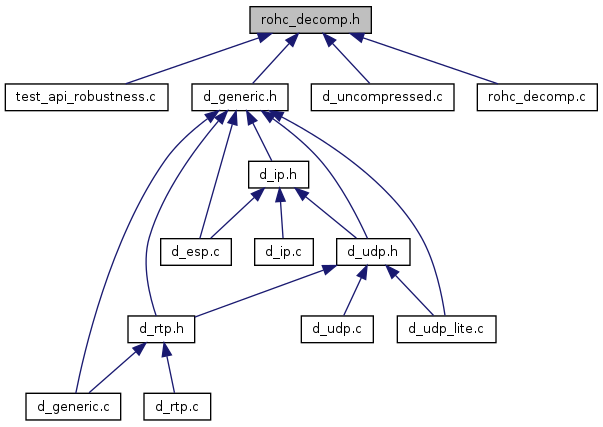

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	__attribute__
	Some information about the last compressed packet. More...
Defines
#define	ROHC_EXPORT
Enumerations
enum	rohc_d_state { NO_CONTEXT = 1, STATIC_CONTEXT = 2, FULL_CONTEXT = 3 }
	The ROHC decompressor states. More...
Functions
struct rohc_decomp *ROHC_EXPORT	rohc_alloc_decompressor (struct rohc_comp *compressor)
	Create one ROHC decompressor.
void ROHC_EXPORT	rohc_free_decompressor (struct rohc_decomp *decomp)
	Destroy one ROHC decompressor.
int ROHC_EXPORT	rohc_decompress (struct rohc_decomp *decomp, unsigned char *ibuf, int isize, unsigned char *obuf, int osize)
	Decompress a ROHC packet.
int ROHC_EXPORT	rohc_decompress_both (struct rohc_decomp *decomp, unsigned char *ibuf, int isize, unsigned char *obuf, int osize, int large) ROHC_DEPRECATED("please do not use this function anymore
int ROHC_EXPORT use	rohc_decomp_set_cid_type () and rohc_decomp_set_max_cid()" "instead")
int ROHC_EXPORT	rohc_d_statistics (struct rohc_decomp *decomp, unsigned int indent, char *buffer)
	Output the decompression statistics of one decompressor to a buffer. The buffer must be large enough to store all the statistics.
void ROHC_EXPORT	clear_statistics (struct rohc_decomp *decomp)
	Clear all the statistics.
const char *ROHC_EXPORT	rohc_decomp_get_state_descr (const rohc_d_state state)
	Give a description for the given ROHC decompression context state.
bool ROHC_EXPORT	rohc_decomp_get_last_packet_info (const struct rohc_decomp *const decomp, rohc_decomp_last_packet_info_t *const info) __attribute__((warn_unused_result))
	Get some information about the last decompressed packet.
void ROHC_EXPORT	user_interactions (struct rohc_decomp *decomp, int feedback_maxval)
	Update feedback interval by the user.
bool ROHC_EXPORT	rohc_decomp_set_cid_type (struct rohc_decomp *const decomp, const rohc_cid_type_t cid_type) __attribute__((warn_unused_result))
	Set the type of CID to use for the given decompressor.
bool ROHC_EXPORT	rohc_decomp_set_max_cid (struct rohc_decomp *const decomp, const size_t max_cid) __attribute__((warn_unused_result))
	Set the MAX_CID allowed for the given decompressor.
bool ROHC_EXPORT	rohc_decomp_set_mrru (struct rohc_decomp *const decomp, const size_t mrru) __attribute__((warn_unused_result))
	Set the Maximum Reconstructed Reception Unit (MRRU).
bool ROHC_EXPORT	rohc_decomp_set_traces_cb (struct rohc_decomp *const decomp, rohc_trace_callback_t callback) __attribute__((warn_unused_result))
	Set the callback function used to manage traces in decompressor.

---

Detailed Description

ROHC decompression routines.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

The hackers from ROHC for Linux

David Moreau from TAS

---

Define Documentation

#define ROHC_EXPORT

Macro that handles DLL export declarations gracefully

---

Function Documentation

int ROHC_EXPORT use rohc_decomp_set_cid_type

(

)

bool ROHC_EXPORT rohc_decomp_set_traces_cb	(	struct rohc_decomp *	decomp,
		rohc_trace_callback_t	callback
	)

Set the callback function used to manage traces in decompressor.

Parameters:

decomp	The ROHC decompressor
callback	The callback function used to manage traces NULL to remove the previous callback

Returns:

true on success, false otherwise

References d_statistics::received, rohc_error, ROHC_PROFILE_GENERAL, ROHC_TRACE_DECOMP, rohc_decomp::stats, and rohc_decomp::trace_callback.

int ROHC_EXPORT rohc_decompress_both	(	struct rohc_decomp *	decomp,
		unsigned char *	ibuf,
		int	isize,
		unsigned char *	obuf,
		int	osize,
		int	large
	)
