rohc_traces.h File Reference

ROHC definitions for traces. More...

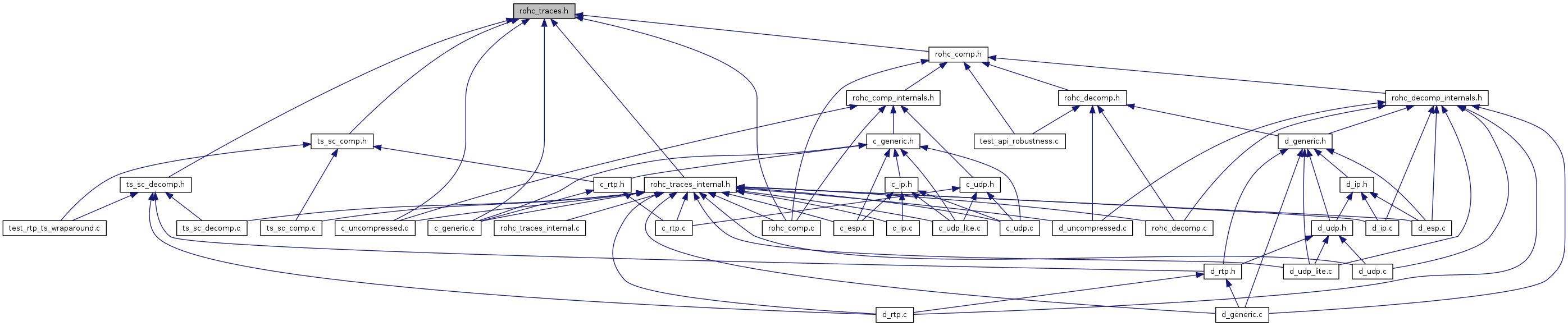

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	ROHC_PROFILE_GENERAL   0xffff
Typedefs
typedef void(*	rohc_trace_callback_t )(const rohc_trace_level_t level, const rohc_trace_entity_t entity, const int profile, const char *const format,...) __attribute__((format(printf
	The function prototype for the trace callback.
Enumerations
enum	rohc_trace_level_t {   ROHC_TRACE_DEBUG = 0, ROHC_TRACE_INFO = 1, ROHC_TRACE_WARNING = 2, ROHC_TRACE_ERROR = 3,   ROHC_TRACE_LEVEL_MAX }
enum	rohc_trace_entity_t { ROHC_TRACE_COMP = 0, ROHC_TRACE_DECOMP = 1, ROHC_TRACE_ENTITY_MAX }

---

Detailed Description

ROHC definitions for traces.

Author:

Julien Bernard <julien.bernard@toulouse.viveris.com>

Audric Schiltknecht <audric.schiltknecht@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

---

Define Documentation

#define ROHC_PROFILE_GENERAL   0xffff

A general profile number used for traces not related to a specific profile

Referenced by c_create_sc(), c_deliver_feedback(), c_generic_check_profile(), d_optimistic_feedback(), main(), rohc_activate_profile(), rohc_comp_add_rtp_port(), rohc_comp_force_contexts_reinit(), rohc_comp_get_general_info(), rohc_comp_get_last_packet_info(), rohc_comp_get_last_packet_info2(), rohc_comp_get_segment(), rohc_comp_piggyback_feedback(), rohc_comp_remove_rtp_port(), rohc_comp_reset_rtp_ports(), rohc_comp_set_mrru(), rohc_comp_set_periodic_refreshes(), rohc_comp_set_traces_cb(), rohc_comp_set_wlsb_window_width(), rohc_compress2(), rohc_decomp_get_last_packet_info(), rohc_decomp_set_cid_type(), rohc_decomp_set_max_cid(), rohc_decomp_set_mrru(), rohc_decomp_set_traces_cb(), rohc_decompress(), rohc_dump_packet(), rohc_feedback_flush(), rohc_feedback_remove_locked(), rohc_free_compressor(), rohc_free_decompressor(), and ts_decode_scaled().

---

Typedef Documentation

typedef void(* rohc_trace_callback_t)(const rohc_trace_level_t level, const rohc_trace_entity_t entity, const int profile, const char *const format,...)__attribute__((format(printf

The function prototype for the trace callback.

Parameters:

level

The level of the message,

See also:

rohc_trace_level_t

Parameters:

entity

The entity concerned by the traces,

See also:

rohc_trace_entity_t

Parameters:

profile	The number of the profile concerned by the message
format	The format string for the trace message

---

Enumeration Type Documentation

enum rohc_trace_entity_t

The different entities concerned by the traces

Enumerator:

ROHC_TRACE_COMP
ROHC_TRACE_DECOMP
ROHC_TRACE_ENTITY_MAX

enum rohc_trace_level_t

The different levels of the traces

Enumerator:

ROHC_TRACE_DEBUG
ROHC_TRACE_INFO
ROHC_TRACE_WARNING
ROHC_TRACE_ERROR
ROHC_TRACE_LEVEL_MAX
