list_decomp Struct Reference

The list decompressor. More...

#include <d_generic.h>

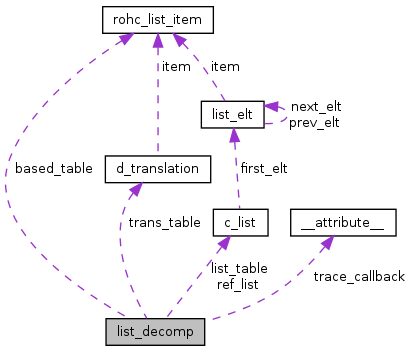

Collaboration diagram for list_decomp:

Data Fields
struct c_list *	ref_list
	The reference list.
struct c_list *	list_table [LIST_COMP_WINDOW]
	The table of lists.
struct rohc_list_item	based_table [MAX_ITEM]
	The compression based table.
struct d_translation	trans_table [MAX_ITEM]
	The translation table.
int	counter_list
	counter in list table
int	counter
	counter which indicates if the list is reference list
bool	is_present
	boolean which indicates if there is a list to decompress
int	ref_ok
	boolean which indicates if the ref list must be decompressed
void(*	free_table )(struct list_decomp *decomp)
	The handler used to free the based table.
int(*	encode_extension )(struct list_decomp *const decomp, const uint8_t ip_nh_type, unsigned char *dest)
	The handler used to add the extension to IP packet.
int(*	check_index )(struct list_decomp *decomp, int index)
bool(*	create_item )(const unsigned char *data, int length, int index, struct list_decomp *decomp)
int(*	get_ext_size )(const unsigned char *data, const size_t data_len)
	The handler used to get the size of an extension.
rohc_trace_callback_t	trace_callback
int	profile_id

---

Detailed Description

The list decompressor.

---

Field Documentation

struct rohc_list_item list_decomp::based_table[MAX_ITEM]

The compression based table.

int(* list_decomp::check_index)(struct list_decomp *decomp, int index)

The handler used to check if the index corresponds to an existing item

Referenced by d_generic_create().

int list_decomp::counter

counter which indicates if the list is reference list

int list_decomp::counter_list

counter in list table

bool(* list_decomp::create_item)(const unsigned char *data, int length, int index, struct list_decomp *decomp)

The handler used to create the item at the corresponding index of the based table

Referenced by d_generic_create().

int(* list_decomp::encode_extension)(struct list_decomp *const decomp, const uint8_t ip_nh_type, unsigned char *dest)

The handler used to add the extension to IP packet.

Referenced by d_generic_create().

void(* list_decomp::free_table)(struct list_decomp *decomp)

The handler used to free the based table.

Referenced by d_generic_create(), and d_generic_destroy().

int(* list_decomp::get_ext_size)(const unsigned char *data, const size_t data_len)

The handler used to get the size of an extension.

Referenced by d_generic_create().

bool list_decomp::is_present

boolean which indicates if there is a list to decompress

struct c_list* list_decomp::list_table[LIST_COMP_WINDOW]

The table of lists.

Referenced by d_generic_destroy().

int list_decomp::profile_id

The profile ID the decompression list was created for

Referenced by d_generic_create().

struct c_list* list_decomp::ref_list

The reference list.

int list_decomp::ref_ok

boolean which indicates if the ref list must be decompressed

rohc_trace_callback_t list_decomp::trace_callback

The callback function used to manage traces

Referenced by d_generic_create().

struct d_translation list_decomp::trans_table[MAX_ITEM]

The translation table.

---

The documentation for this struct was generated from the following file:

• d_generic.h
