ts_sc_comp.c File Reference

Scaled RTP Timestamp encoding. More...

#include "ts_sc_comp.h"
#include "sdvl.h"
#include "rohc_traces_internal.h"
#include <stdlib.h>
#include <assert.h>

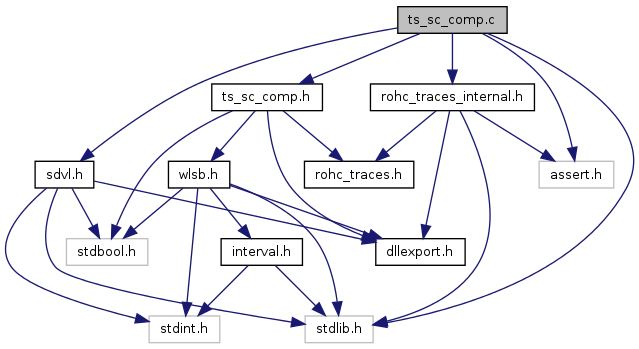

Include dependency graph for ts_sc_comp.c:

Defines
#define	ts_debug(entity_struct, format,...)
Functions
int	c_create_sc (struct ts_sc_comp *const ts_sc, const size_t wlsb_window_width, rohc_trace_callback_t callback)
	Create the ts_sc_comp object.
void	c_destroy_sc (struct ts_sc_comp *const ts_sc)
	Destroy the ts_sc_comp object.
void	c_add_ts (struct ts_sc_comp *const ts_sc, const uint32_t ts, const uint16_t sn)
	Store the new TS, calculate new values and update the state.
bool	nb_bits_scaled (const struct ts_sc_comp ts_sc, size_t *const bits_nr)
	Return the number of bits needed to encode TS_SCALED.
void	add_scaled (const struct ts_sc_comp *const ts_sc, uint16_t sn)
	Add a new TS_SCALED value to the ts_sc_comp object.
uint32_t	get_ts_stride (const struct ts_sc_comp ts_sc)
	Return the TS_STRIDE value.
uint32_t	get_ts_scaled (const struct ts_sc_comp ts_sc)
	Return the TS_SCALED value.
bool	rohc_ts_sc_is_deducible (const struct ts_sc_comp ts_sc)
	Whether TimeStamp (TS) is deducible from the Sequence Number (SN) or not.

---

Detailed Description

Scaled RTP Timestamp encoding.

Author:

David Moreau from TAS

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

---

Define Documentation

#define ts_debug	(		entity_struct,
			format,
			...
	)

Value:

rohc_debug(entity_struct, ROHC_TRACE_COMP, ROHC_PROFILE_GENERAL, \
                   format, ##__VA_ARGS__)

Print debug messages for the ts_sc_comp module

Referenced by c_add_ts().

---

Function Documentation

void add_scaled	(	const struct ts_sc_comp *const	ts_sc,
		uint16_t	sn
	)

Add a new TS_SCALED value to the ts_sc_comp object.

Parameters:

ts_sc	The ts_sc_comp object
sn	The Sequence Number

References c_add_wlsb(), ts_sc_comp::scaled_window, and ts_sc_comp::ts_scaled.

void c_add_ts	(	struct ts_sc_comp *const	ts_sc,
		const uint32_t	ts,
		const uint16_t	sn
	)

Store the new TS, calculate new values and update the state.

Parameters:

ts_sc	The ts_sc_comp object
ts	The timestamp to add
sn	The sequence number of the RTP packet

References ts_sc_comp::are_old_val_init, INIT_STRIDE, INIT_TS, ts_sc_comp::is_deducible, ts_sc_comp::nr_init_stride_packets, ts_sc_comp::old_sn, ts_sc_comp::old_ts, sdvl_can_value_be_encoded(), SEND_SCALED, sn, ts_sc_comp::sn, ts_sc_comp::state, ts_sc_decomp::ts, ts_sc_comp::ts, ts_debug, ts_sc_comp::ts_delta, ts_sc_comp::ts_offset, ts_sc_comp::ts_scaled, and ts_sc_comp::ts_stride.

int c_create_sc	(	struct ts_sc_comp *const	ts_sc,
		const size_t	wlsb_window_width,
		rohc_trace_callback_t	callback
	)

Create the ts_sc_comp object.

Parameters:

ts_sc	The ts_sc_comp object to create
wlsb_window_width	The width of the W-LSB sliding window to use for TS_STRIDE (must be > 0)
callback	The trace callback

Returns:

1 if creation is successful, 0 otherwise

References ts_sc_comp::are_old_val_init, c_create_wlsb(), INIT_TS, ts_sc_comp::is_deducible, ts_sc_comp::nr_init_stride_packets, ts_sc_comp::old_sn, ts_sc_comp::old_ts, rohc_error, ROHC_LSB_SHIFT_RTP_TS, ROHC_PROFILE_GENERAL, ROHC_TRACE_COMP, ts_sc_comp::scaled_window, ts_sc_comp::sn, ts_sc_comp::state, ts_sc_comp::trace_callback, ts_sc_comp::ts, ts_sc_comp::ts_delta, ts_sc_comp::ts_offset, ts_sc_comp::ts_scaled, and ts_sc_comp::ts_stride.

void c_destroy_sc

(

struct ts_sc_comp *const

ts_sc

)

Destroy the ts_sc_comp object.

Parameters:

ts_sc

The ts_sc_comp object to destroy

References c_destroy_wlsb(), and ts_sc_comp::scaled_window.

uint32_t get_ts_scaled

(

const struct ts_sc_comp

ts_sc

)

Return the TS_SCALED value.

Parameters:

ts_sc

The ts_sc_comp object

Returns:

The TS_SCALED value

References ts_sc_comp::ts_scaled.

uint32_t get_ts_stride

(

const struct ts_sc_comp

ts_sc

)

Return the TS_STRIDE value.

Parameters:

ts_sc

The ts_sc_comp object

Returns:

TS_STRIDE value

References ts_sc_comp::ts_stride.

Referenced by rtp_header_flags_and_fields().

bool nb_bits_scaled	(	const struct ts_sc_comp	ts_sc,
		size_t *const	bits_nr
	)

Return the number of bits needed to encode TS_SCALED.

Parameters:

ts_sc	The ts_sc_comp object
bits_nr	OUT: The number of bits needed

Returns:

true in case of success, false if the minimal number of bits can not be found

References ts_sc_comp::scaled_window, ts_sc_comp::ts_scaled, and wlsb_get_k_32bits().

bool rohc_ts_sc_is_deducible

(

const struct ts_sc_comp

ts_sc

)

Whether TimeStamp (TS) is deducible from the Sequence Number (SN) or not.

Parameters:

ts_sc

The TS SCALED compression context

Returns:

true if TS is deducible from SN, false otherwise

References ts_sc_comp::is_deducible.
