Define list compression with its function. More...

#include "dllexport.h"
#include "protocols/ipv6.h"
#include "protocols/ip_numbers.h"
#include <stdlib.h>

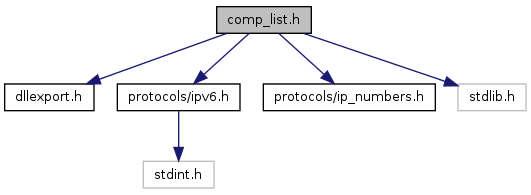

Include dependency graph for comp_list.h:

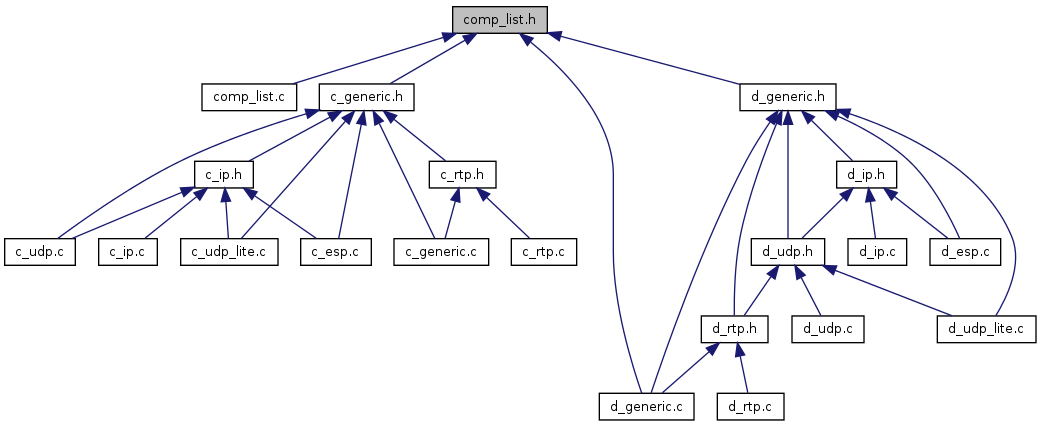

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rohc_list_item
	A list item. More...
struct	list_elt
	Define a generic element in a compression list. More...
struct	c_list
	Define a list for compression. More...
struct	c_translation
	Define a compression translation table element. More...
struct	d_translation
	Define a decompression translation table element. More...
Defines
#define	rc_list_debug(comp_list, format,...)
#define	rd_list_debug(decomp_list, format,...)
Enumerations
enum	ext_header_version { HBH = ROHC_IPPROTO_HOPOPTS, RTHDR = ROHC_IPPROTO_ROUTING, AH = ROHC_IPPROTO_AH, DEST = ROHC_IPPROTO_DSTOPTS }
	Header version. More...
Functions
struct c_list *ROHC_EXPORT	list_create (void) __attribute__((warn_unused_result))
	Create one compression_list.
void ROHC_EXPORT	list_destroy (struct c_list *list)
	Destroy the list.
int ROHC_EXPORT	list_add_at_beginning (struct c_list list, struct rohc_list_item item, int index)
	Add an element at the beginning of the list.
int ROHC_EXPORT	list_add_at_end (struct c_list list, struct rohc_list_item item, int index)
	Add an element at the end of the list.
int ROHC_EXPORT	list_add_at_index (struct c_list list, struct rohc_list_item item, int index, int index_table)
	Insert an element at the specified position.
struct list_elt *ROHC_EXPORT	list_get_elt_by_index (struct c_list *list, int index)
	Get the element at the specified index.
int ROHC_EXPORT	list_get_index_by_elt (struct c_list list, struct rohc_list_item item)
	Get the index of the specified element in the list.
void ROHC_EXPORT	list_remove (struct c_list list, struct rohc_list_item item)
	Delete the specified element of the list.
void ROHC_EXPORT	rohc_list_empty (struct c_list *list)
	Empty the list.
int ROHC_EXPORT	list_type_is_present (struct c_list list, struct rohc_list_item item)
	Indicate if the type of the specified element is present.
size_t ROHC_EXPORT	list_get_size (const struct c_list *const list)
	Get the size of the given list.

Detailed Description

Define list compression with its function.

Author:: Emmanuelle Pechereau <epechereau@toulouse.viveris.com>; Didier Barvaux <didier@barvaux.org>

Define Documentation

#define rc_list_debug	(	comp_list,
		format,
		...
	)

Value:

rohc_debug(comp_list, ROHC_TRACE_COMP, (comp_list)->profile_id, \
                   format, ##__VA_ARGS__)

Print a debug trace for the given compression list

#define rd_list_debug	(	decomp_list,
		format,
		...
	)

Value:

rohc_debug(decomp_list, ROHC_TRACE_DECOMP, (decomp_list)->profile_id, \
                   format, ##__VA_ARGS__)

Print a debug trace for the given decompression list

Enumeration Type Documentation

enum ext_header_version

Header version.

Enumerator:

HBH	Hop by hop header
RTHDR	Routing header
AH	AH header
DEST	Destination header

Function Documentation

int ROHC_EXPORT list_add_at_beginning	(	struct c_list *	list,
		struct rohc_list_item *	item,
		int	index
	)

Add an element at the beginning of the list.

Parameters:

list	the list where the element is added
item	the item of the new element
index	the index in based table

Returns:: 1 if successful, 0 otherwise

References c_list::first_elt, list_elt::index_table, list_elt::item, list_elt::next_elt, and list_elt::prev_elt.

Referenced by list_add_at_end(), and list_add_at_index().

int ROHC_EXPORT list_add_at_end	(	struct c_list *	list,
		struct rohc_list_item *	item,
		int	index
	)

Add an element at the end of the list.

Parameters:

list	the list where the element is added
item	the item of the new element
index	the index in based table

Returns:: 1 if successful, 0 otherwise

References c_list::first_elt, list_elt::index_table, list_elt::item, list_add_at_beginning(), list_elt::next_elt, and list_elt::prev_elt.

int ROHC_EXPORT list_add_at_index	(	struct c_list *	list,
		struct rohc_list_item *	item,
		int	index,
		int	index_table
	)

Insert an element at the specified position.

Parameters:

list	The list in which the element is inserted
item	The element to insert
index	The position
index_table	The index in based_table

Returns:: 1 if successful, 0 otherwise

References c_list::first_elt, list_elt::index_table, list_elt::item, list_add_at_beginning(), list_get_size(), list_elt::next_elt, and list_elt::prev_elt.

struct c_list* ROHC_EXPORT list_create ( void ) [read]

Create one compression_list.

Functions prototypes

Returns:: The list created

References c_list::first_elt, and c_list::gen_id.

Referenced by c_init_header_info().

void ROHC_EXPORT list_destroy ( struct c_list * list )

Destroy the list.

Parameters:

list	the list to destroy

References c_list::first_elt, and list_elt::next_elt.

Referenced by c_generic_destroy(), and d_generic_destroy().

struct list_elt* ROHC_EXPORT list_get_elt_by_index	(	struct c_list *	list,
		int	index
	)		`[read]`

Get the element at the specified index.

Parameters:

list	the list where is the element
index	the specified index

Returns:: item, NULL if there is no element at this index

References c_list::first_elt, list_get_size(), and list_elt::next_elt.

int ROHC_EXPORT list_get_index_by_elt	(	struct c_list *	list,
		struct rohc_list_item *	item
	)

Get the index of the specified element in the list.

Parameters:

list	the list where is the element
item	the specified element

Returns:: the index, -1 if the element is not in the list

References c_list::first_elt, list_elt::item, and list_elt::next_elt.

size_t ROHC_EXPORT list_get_size ( const struct c_list *const list )

Get the size of the given list.

Parameters:

list The list

Returns:: The size of the list

References c_list::first_elt, and list_elt::next_elt.

Referenced by code_ipv6_dynamic_part(), list_add_at_index(), and list_get_elt_by_index().

void ROHC_EXPORT list_remove	(	struct c_list *	list,
		struct rohc_list_item *	item
	)

Delete the specified element of the list.

Parameters:

list	the list where the element is destroyed
item	the element to delete

References c_list::first_elt, list_elt::item, list_elt::next_elt, and list_elt::prev_elt.

int ROHC_EXPORT list_type_is_present	(	struct c_list *	list,
		struct rohc_list_item *	item
	)

Indicate if the type of the specified element is present.

Parameters:

list	the list where is the element
item	the specified element

Returns:: 1 if present, 0 else

References c_list::first_elt, list_elt::item, list_elt::next_elt, and rohc_list_item::type.

void ROHC_EXPORT rohc_list_empty ( struct c_list * list )

Empty the list.

Parameters:

list	the list to empty

References c_list::first_elt, list_elt::next_elt, and list_elt::prev_elt.
