rohc_traces_internal.h File Reference

Internal ROHC macros and functions for traces. More...

#include "rohc_traces.h"
#include <stdlib.h>
#include <assert.h>
#include "dllexport.h"

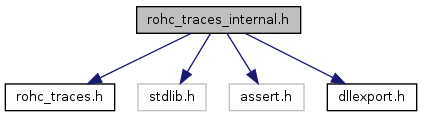

Include dependency graph for rohc_traces_internal.h:

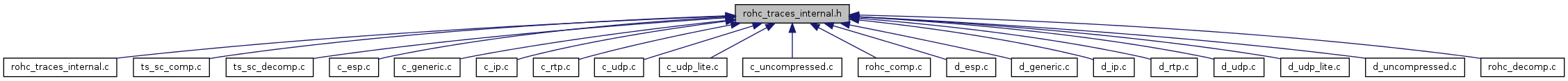

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	__rohc_print(trace_cb, level, entity, profile, format,...)
#define	rohc_print(entity_struct, level, entity, profile, format,...)
#define	rohc_debug(entity_struct, entity, profile, format,...)
#define	rohc_info(entity_struct, entity, profile, format,...)
#define	rohc_warning(entity_struct, entity, profile, format,...)
#define	rohc_error(entity_struct, entity, profile, format,...)
#define	rohc_assert(entity_struct, entity, profile, condition, label, format,...)
	Stop processing if the given condition is false.
Functions
void ROHC_EXPORT	rohc_dump_packet (const rohc_trace_callback_t trace_cb, const rohc_trace_entity_t trace_entity, const rohc_trace_level_t trace_level, const char *const descr, const unsigned char *const packet, const size_t length) __attribute__((nonnull(4

---

Detailed Description

Internal ROHC macros and functions for traces.

Author:

Julien Bernard <julien.bernard@toulouse.viveris.com>

Audric Schiltknecht <audric.schiltknecht@toulouse.viveris.com>

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

---

Define Documentation

#define __rohc_print	(		trace_cb,
			level,
			entity,
			profile,
			format,
			...
	)

Value:

do { \
                if(trace_cb != NULL) { \
                        trace_cb(level, entity, profile, "[%s:%d %s()] " format, \
                                 __FILE__, __LINE__, __FUNCTION__, ##__VA_ARGS__); \
                } \
        } while(0)

Print information depending on the debug level (internal usage)

Referenced by c_init_header_info(), and rohc_dump_packet().

#define rohc_assert	(		entity_struct,
			entity,
			profile,
			condition,
			label,
			format,
			...
	)

Value:

do { \
                if(!(condition)) { \
                        rohc_error(entity_struct, entity, profile, \
                                   format, ##__VA_ARGS__); \
                        assert(condition); \
                        goto label; \
                } \
        } while(0)

Stop processing if the given condition is false.

In non-debug mode (ie. NDEBUG set): if the given condition fails, prints the given message then jump to the given label.

In debug mode (ie. NDEBUG not set): if the given condition fails, prints the given message then asserts.

Referenced by code_EXT0_packet(), code_EXT1_packet(), code_EXT2_packet(), code_EXT3_packet(), code_UO1_packet(), code_UO2_packet(), code_UOR2_ID_bytes(), code_UOR2_RTP_bytes(), code_UOR2_TS_bytes(), and decide_extension().

#define rohc_debug	(		entity_struct,
			entity,
			profile,
			format,
			...
	)

Value:

rohc_print(entity_struct, ROHC_TRACE_DEBUG, entity, profile, \
                   format, ##__VA_ARGS__)

Print debug messages prefixed with the function name

Referenced by c_deliver_feedback(), c_generic_check_profile(), d_change_mode_feedback(), d_optimistic_feedback(), periodic_down_transition(), rohc_comp_add_rtp_port(), rohc_comp_get_segment(), rohc_comp_piggyback_feedback(), rohc_comp_remove_rtp_port(), rohc_comp_reset_rtp_ports(), rohc_comp_set_mrru(), rohc_compress2(), rohc_decomp_set_cid_type(), rohc_decomp_set_max_cid(), rohc_decomp_set_mrru(), rohc_decompress(), rohc_feedback_flush(), rohc_feedback_remove_locked(), rohc_free_compressor(), and rohc_free_decompressor().

#define rohc_error	(		entity_struct,
			entity,
			profile,
			format,
			...
	)

Value:

rohc_print(entity_struct, ROHC_TRACE_ERROR, entity, profile, \
                   format, ##__VA_ARGS__)

Print error messages prefixed with the function name

Referenced by c_create_sc(), c_deliver_feedback(), c_generic_create(), d_generic_create(), d_ip_create(), d_rtp_create(), d_udp_create(), d_udp_lite_create(), rohc_comp_get_general_info(), rohc_comp_get_last_packet_info(), rohc_comp_get_last_packet_info2(), rohc_comp_piggyback_feedback(), rohc_comp_set_traces_cb(), rohc_decomp_get_last_packet_info(), rohc_decomp_set_traces_cb(), and ts_decode_scaled().

#define rohc_info	(		entity_struct,
			entity,
			profile,
			format,
			...
	)

Value:

rohc_print(entity_struct, ROHC_TRACE_INFO, entity, profile, \
                   format, ##__VA_ARGS__)

Print information prefixed with the function name

Referenced by c_generic_feedback(), change_mode(), change_state(), d_optimistic_feedback(), periodic_down_transition(), rohc_comp_force_contexts_reinit(), rohc_comp_set_periodic_refreshes(), rohc_comp_set_wlsb_window_width(), and rohc_compress2().

#define rohc_print	(		entity_struct,
			level,
			entity,
			profile,
			format,
			...
	)

Value:

do { \
                assert((entity_struct) != NULL); \
                __rohc_print((entity_struct)->trace_callback, \
                             level, entity, profile, \
                             format, ##__VA_ARGS__); \
        } while(0)

Print information depending on the debug level

#define rohc_warning	(		entity_struct,
			entity,
			profile,
			format,
			...
	)

Value:

rohc_print(entity_struct, ROHC_TRACE_WARNING, entity, profile, \
                   format, ##__VA_ARGS__)

Print warning messages prefixed with the function name

Referenced by c_deliver_feedback(), c_generic_encode(), c_generic_feedback(), c_udp_check_context(), code_EXT3_packet(), code_ipv6_dynamic_part(), code_IR_DYN_packet(), code_IR_packet(), code_UO2_packet(), code_UOR2_bytes(), d_change_mode_feedback(), d_generic_decode(), d_optimistic_feedback(), d_udp_lite_decode(), ip_detect_packet_type(), ip_parse_dynamic_ip(), rohc_activate_profile(), rohc_comp_add_rtp_port(), rohc_comp_force_contexts_reinit(), rohc_comp_get_segment(), rohc_comp_remove_rtp_port(), rohc_comp_set_mrru(), rohc_comp_set_periodic_refreshes(), rohc_comp_set_wlsb_window_width(), rohc_compress2(), rohc_decomp_set_cid_type(), rohc_decomp_set_max_cid(), rohc_decomp_set_mrru(), rohc_decompress(), rtp_header_flags_and_fields(), and udp_parse_static_udp().

---

Function Documentation

void ROHC_EXPORT rohc_dump_packet	(	const rohc_trace_callback_t	trace_cb,
		const rohc_trace_entity_t	trace_entity,
		const rohc_trace_level_t	trace_level,
		const char *const	descr,
		const unsigned char *const	packet,
		const size_t	length
	)
