rohc_decomp_internals.h File Reference

Internal structures for ROHC decompression. More...

#include "rohc.h"
#include "rohc_comp.h"

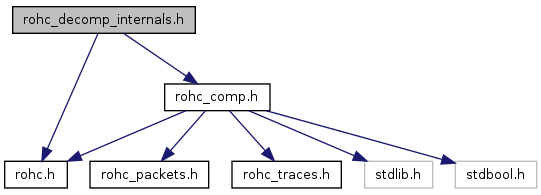

Include dependency graph for rohc_decomp_internals.h:

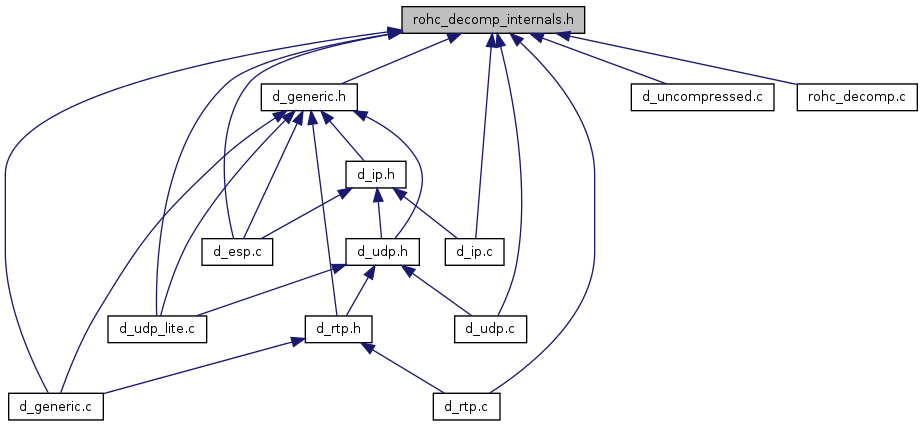

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	d_statistics
	Some compressor statistics. More...
struct	rohc_decomp
	The ROHC decompressor. More...
struct	d_context
	The ROHC decompression context. More...
struct	d_profile
	The ROHC decompression profile. More...
Defines
#define	D_NUM_PROFILES   6
#define	rohc_decomp_debug(context, format,...)
#define	ROHC_MAX_MRRU   65535
Functions
void	d_change_mode_feedback (struct rohc_decomp *decomp, struct d_context *context)
	Create a feedback ACK packet telling the compressor to change state.

---

Detailed Description

Internal structures for ROHC decompression.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

The hackers from ROHC for Linux

David Moreau from TAS

---

Define Documentation

#define D_NUM_PROFILES   6

The number of ROHC profiles ready to be used

Referenced by rohc_d_statistics().

#define rohc_decomp_debug	(		context,
			format,
			...
	)

Value:

rohc_debug((context)->decompressor, ROHC_TRACE_DECOMP, \
                   (context)->profile->id, \
                   format, ##__VA_ARGS__)

Print a debug trace for the given decompression context

Referenced by d_generic_decode(), ip_parse_dynamic_ip(), and udp_parse_static_udp().

#define ROHC_MAX_MRRU   65535

The maximal value for MRRU

---

Function Documentation

void d_change_mode_feedback	(	struct rohc_decomp *	decomp,
		struct d_context *	context
	)

Create a feedback ACK packet telling the compressor to change state.

Parameters:

decomp	The ROHC decompressor
context	The decompression context

References ACKTYPE_ACK, medium::cid_type, rohc_decomp::compressor, rohc_decomp::contexts, rohc_decomp::crc_table_8, f_feedback2(), f_wrap_feedback(), d_profile::get_sn, d_profile::id, medium::max_cid, rohc_decomp::medium, d_context::mode, d_context::profile, rohc_comp_piggyback_feedback(), rohc_debug, ROHC_TRACE_DECOMP, rohc_warning, WITH_CRC, and zfree.
