ROHC compression routines. More...

#include "rohc_comp.h"
#include "rohc_comp_internals.h"
#include "rohc_packets.h"
#include "rohc_traces.h"
#include "rohc_traces_internal.h"
#include "rohc_time.h"
#include "rohc_debug.h"
#include "rohc_utils.h"
#include "sdvl.h"
#include "decode.h"
#include "ip.h"
#include "crc.h"
#include "protocols/udp.h"
#include "protocols/ip_numbers.h"
#include "config.h"
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#include <assert.h>
#include <stdio.h>
#include <stdarg.h>

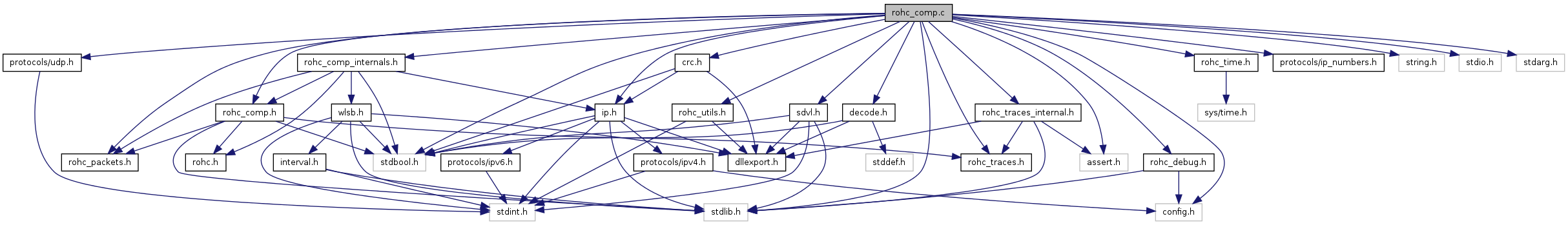

Include dependency graph for rohc_comp.c:

Functions
static void	nonnull (4)))
struct rohc_comp *	rohc_alloc_compressor (int max_cid, int jam_use, int adapt_size, int encap_size)
	Create one ROHC compressor.
void	rohc_free_compressor (struct rohc_comp *comp)
	Destroy one ROHC compressor.
bool	rohc_comp_set_traces_cb (struct rohc_comp *const comp, rohc_trace_callback_t callback)
	Set the callback function used to manage traces in compressor.
bool	rohc_comp_set_random_cb (struct rohc_comp const comp, rohc_comp_random_cb_t callback, void const user_context)
	Set the user-defined callback for random numbers.
int	rohc_compress (struct rohc_comp comp, unsigned char ibuf, int isize, unsigned char *obuf, int osize)
	Compress a ROHC packet.
int	rohc_compress2 (struct rohc_comp const comp, const unsigned char const uncomp_packet, const size_t uncomp_packet_len, unsigned char const rohc_packet, const size_t rohc_packet_max_len, size_t const rohc_packet_len)
	Compress a ROHC packet.
int	rohc_comp_get_segment (struct rohc_comp const comp, unsigned char const segment, const size_t max_len, size_t *const len)
	Get the next ROHC segment if any.
bool	rohc_comp_force_contexts_reinit (struct rohc_comp *const comp)
	Force the compressor to re-initialize all its contexts.
bool	rohc_comp_set_wlsb_window_width (struct rohc_comp *const comp, const size_t width)
	Set the window width for the W-LSB algorithm.
bool	rohc_comp_set_periodic_refreshes (struct rohc_comp *const comp, const size_t ir_timeout, const size_t fo_timeout)
	Set the timeout values for IR and FO periodic refreshes.
bool	rohc_comp_set_rtp_detection_cb (struct rohc_comp const comp, rohc_rtp_detection_callback_t callback, void const rtp_private)
	Set the RTP detection callback function.
void	rohc_activate_profile (struct rohc_comp *comp, int profile)
	Activate a profile for a compressor.
int	rohc_c_using_small_cid (struct rohc_comp *comp)
	Whether the compressor uses small CID or not.
void	rohc_c_set_header (struct rohc_comp *comp, int header)
	Set the maximal header size. The maximal header size is ignored for the moment.
void	rohc_c_set_mrru (struct rohc_comp *comp, int value)
	Set the Maximum Reconstructed Reception Unit (MRRU).
bool	rohc_comp_set_mrru (struct rohc_comp *const comp, const size_t mrru)
	Set the Maximum Reconstructed Reception Unit (MRRU).
bool	rohc_comp_get_mrru (const struct rohc_comp const comp, size_t const mrru)
	Get the Maximum Reconstructed Reception Unit (MRRU).
void	rohc_c_set_max_cid (struct rohc_comp *comp, int value)
	Set the maximal CID value the compressor should use.
bool	rohc_comp_get_max_cid (const struct rohc_comp const comp, size_t const max_cid)
	Get the maximal CID value the compressor uses.
void	rohc_c_set_large_cid (struct rohc_comp *comp, int large_cid)
	Tell the compressor to use large CIDs.
bool	rohc_comp_get_cid_type (const struct rohc_comp const comp, rohc_cid_type_t const cid_type)
	Get the CID type the compressor uses.
bool	rohc_comp_add_rtp_port (struct rohc_comp *const comp, const unsigned int port)
	Add a port to the list of UDP ports dedicated for RTP traffic.
bool	rohc_comp_remove_rtp_port (struct rohc_comp *const comp, const unsigned int port)
	Remove a port from the list of UDP ports dedicated to RTP traffic.
bool	rohc_comp_reset_rtp_ports (struct rohc_comp *const comp)
	Reset the list of dedicated RTP ports.
void	rohc_c_set_enable (struct rohc_comp *comp, int enable)
	Enable the ROHC compressor.
int	rohc_c_is_enabled (struct rohc_comp *comp)
	Whether the ROHC compressor is enabled or not.
int	rohc_c_info (char *buffer)
	Get information about available compression profiles.
int	rohc_c_statistics (struct rohc_comp comp, unsigned int indent, char buffer)
	Get information about a ROHC compressor.
int	rohc_c_context (struct rohc_comp comp, int cid, unsigned int indent, char buffer)
	Get information about a compression context.
void	c_piggyback_feedback (struct rohc_comp comp, unsigned char feedback, int size)
	Add a feedback packet to the next outgoing ROHC packet (piggybacking)
bool	rohc_comp_piggyback_feedback (struct rohc_comp const comp, const unsigned char const feedback, const size_t size)
	Add a feedback packet to the next outgoing ROHC packet (piggybacking)
void	c_deliver_feedback (struct rohc_comp comp, unsigned char packet, int size)
	Callback called by a decompressor to deliver a feedback packet to the compressor.
int	rohc_feedback_flush (struct rohc_comp comp, unsigned char obuf, int osize)
	Send as much feedback data as possible.
int	rohc_comp_get_last_packet_info (const struct rohc_comp const comp, rohc_comp_last_packet_info_t const info)
	Get some information about the last compressed packet.
bool	rohc_comp_get_last_packet_info2 (const struct rohc_comp const comp, rohc_comp_last_packet_info2_t const info)
	Get some information about the last compressed packet.
bool	rohc_comp_get_general_info (const struct rohc_comp const comp, rohc_comp_general_info_t const info)
	Get some generak information about the compressor.
const char *	rohc_comp_get_state_descr (const rohc_c_state state)
	Give a description for the given ROHC compression context state.
bool	rohc_feedback_remove_locked (struct rohc_comp *const comp)
	Remove all feedbacks locked during the packet build.
bool	rohc_feedback_unlock (struct rohc_comp *const comp)
	Unlock all feedbacks locked during the packet build.
Variables
struct c_profile c_rtp_profile c_udp_profile c_udp_lite_profile c_esp_profile c_ip_profile	c_uncompressed_profile
	Define the compression part of the Uncompressed profile as described in the RFC 3095.
struct c_profile *	c_profiles [C_NUM_PROFILES]
	The compression parts of the ROHC profiles.
static struct c_context	warn_unused_result

Detailed Description

ROHC compression routines.

Author:: Didier Barvaux <didier.barvaux@toulouse.viveris.com>; Didier Barvaux <didier@barvaux.org>; The hackers from ROHC for Linux; David Moreau from TAS

Function Documentation

void c_deliver_feedback	(	struct rohc_comp *	comp,
		unsigned char *	packet,
		int	size
	)

Callback called by a decompressor to deliver a feedback packet to the compressor.

When feedback is received by the decompressor, this function is called and delivers the feedback to the right profile/context of the compressor.

Parameters:

comp	The ROHC compressor
packet	The feedback data
size	The length of the feedback packet

References c_feedback::acktype, c_feedback::cid, medium::cid_type, d_decode_add_cid(), d_is_add_cid(), c_feedback::data, c_profile::feedback, rohc_comp::medium, c_context::num_recv_feedbacks, c_context::profile, rohc_debug, rohc_error, ROHC_LARGE_CID, ROHC_PROFILE_GENERAL, ROHC_TRACE_COMP, rohc_warning, sdvl_decode(), c_feedback::size, c_feedback::specific_offset, c_feedback::specific_size, c_feedback::type, and zfree.

void c_piggyback_feedback	(	struct rohc_comp *	comp,
		unsigned char *	feedback,
		int	size
	)

Add a feedback packet to the next outgoing ROHC packet (piggybacking)

Deprecated:: do not use this function anymore, use rohc_comp_piggyback_feedback() instead

Parameters:

comp	The ROHC compressor
feedback	The feedback data
size	The length of the feedback packet

References __attribute__, and rohc_comp_piggyback_feedback().

static void nonnull ( 4 )

int rohc_c_context	(	struct rohc_comp *	comp,
		int	cid,
		unsigned int	indent,
		char *	buffer
	)

Get information about a compression context.

This function outputs XML.

Deprecated:: do not use this function anymore, use rohc_comp_get_general_info() instead

Parameters:

comp	The ROHC compressor
cid	The CID of the compressor context to output information about
indent	The indent level to beautify the XML output
buffer	The buffer where to store the information

Returns:: The length of the data stored in the buffer if successful, -2 if the given CID is too large, -1 if the given CID is unused or an error occurs

bool rohc_comp_piggyback_feedback	(	struct rohc_comp *const	comp,
		const unsigned char *const	feedback,
		const size_t	size
	)

Add a feedback packet to the next outgoing ROHC packet (piggybacking)

Parameters:

comp	The ROHC compressor
feedback	The feedback data
size	The length of the feedback packet

Returns:: true in case of success, false otherwise

References rohc_feedback::data, FEEDBACK_RING_SIZE, rohc_comp::feedbacks, rohc_comp::feedbacks_first, rohc_comp::feedbacks_next, rohc_feedback::is_locked, rohc_feedback::length, rohc_debug, rohc_error, ROHC_PROFILE_GENERAL, and ROHC_TRACE_COMP.

Referenced by c_piggyback_feedback(), d_change_mode_feedback(), d_optimistic_feedback(), and main().

bool rohc_comp_set_traces_cb	(	struct rohc_comp *const	comp,
		rohc_trace_callback_t	callback
	)

Set the callback function used to manage traces in compressor.

Warning:: The callback can not be modified after library initialization

Parameters:

comp	The ROHC compressor
callback	The callback function used to manage traces NULL to remove the previous callback

Returns:: true on success, false otherwise

References rohc_comp::num_packets, rohc_error, ROHC_PROFILE_GENERAL, ROHC_TRACE_COMP, and rohc_comp::trace_callback.

Referenced by main().

Variable Documentation

struct c_profile* c_profiles[C_NUM_PROFILES]

Initial value:

{
        &c_rtp_profile,
        &c_udp_profile,
        &c_udp_lite_profile,
        &c_esp_profile,
        &c_ip_profile,
        &c_uncompressed_profile,
}

The compression parts of the ROHC profiles.

struct c_profile c_rtp_profile c_udp_profile c_udp_lite_profile c_esp_profile c_ip_profile c_uncompressed_profile

Define the compression part of the Uncompressed profile as described in the RFC 3095.

struct c_context warn_unused_result
