rohc_comp_internals.h File Reference

Internal structures for ROHC compression. More...

#include "rohc.h"
#include "rohc_packets.h"
#include "rohc_comp.h"
#include "wlsb.h"
#include "ip.h"
#include <stdbool.h>

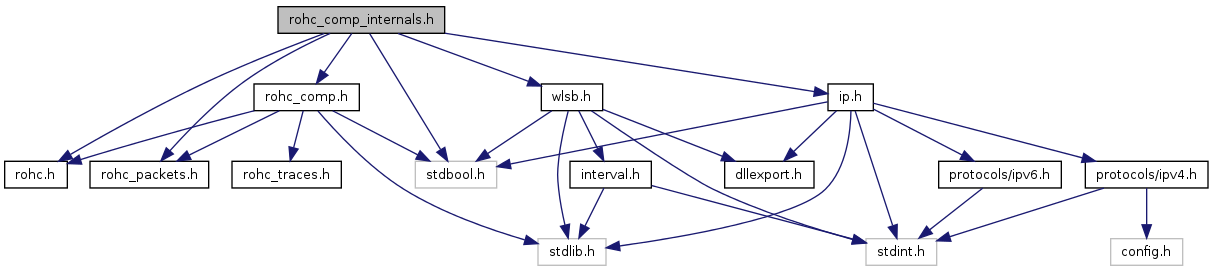

Include dependency graph for rohc_comp_internals.h:

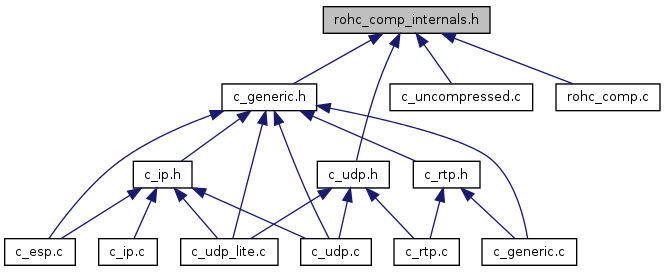

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rohc_feedback
	Information on ROHC feedback data. More...
struct	rohc_comp
	The ROHC compressor. More...
struct	c_profile
	The ROHC compression profile. More...
struct	c_context
	The ROHC compression context. More...
struct	c_feedback
	The feedback packet. More...
Defines
#define	C_NUM_PROFILES   6
#define	FEEDBACK_RING_SIZE   1000
#define	CHANGE_TO_IR_COUNT   1700
#define	CHANGE_TO_FO_COUNT   700
#define	MAX_IR_COUNT   3
#define	MAX_FO_COUNT   3
#define	ROHC_INIT_TS_STRIDE_MIN   3U
#define	rohc_comp_debug(context, format,...)
#define	ROHC_MAX_MRRU   65535
#define	MAX_RTP_PORTS   15
Typedefs
typedef uint32_t	rohc_ctxt_key_t

---

Detailed Description

Internal structures for ROHC compression.

Author:

Didier Barvaux <didier.barvaux@toulouse.viveris.com>

Didier Barvaux <didier@barvaux.org>

The hackers from ROHC for Linux

---

Define Documentation

#define C_NUM_PROFILES   6

The number of ROHC profiles ready to be used

Referenced by rohc_activate_profile(), rohc_alloc_compressor(), rohc_c_info(), and rohc_c_statistics().

#define CHANGE_TO_FO_COUNT   700

The default maximal number of packets sent in > FO states (= SO state) before changing back the state to FO (periodic refreshes)

Referenced by rohc_alloc_compressor().

#define CHANGE_TO_IR_COUNT   1700

The default maximal number of packets sent in > IR states (= FO and SO states) before changing back the state to IR (periodic refreshes)

Referenced by rohc_alloc_compressor().

#define FEEDBACK_RING_SIZE   1000

The maximal number of outgoing feedbacks that can be queued

Referenced by rohc_alloc_compressor(), rohc_comp_piggyback_feedback(), rohc_feedback_remove_locked(), and rohc_feedback_unlock().

#define MAX_FO_COUNT   3

The minimal number of packets that must be sent while in FO state before being able to switch to the SO state

Referenced by c_init_header_info(), c_ip_decide_FO_packet(), c_ip_decide_SO_packet(), changed_dynamic_one_hdr(), changed_static_one_hdr(), code_EXT3_packet(), code_UOR2_ID_bytes(), decide_state(), header_fields(), and header_flags().

#define MAX_IR_COUNT   3

The minimal number of packets that must be sent while in IR state before being able to switch to the FO state

Referenced by code_EXT3_packet(), decide_state(), and rtp_header_flags_and_fields().

#define MAX_RTP_PORTS   15

The maximal number of RTP ports (shall be > 2)

Referenced by rohc_alloc_compressor(), rohc_comp_add_rtp_port(), rohc_comp_remove_rtp_port(), and rohc_comp_reset_rtp_ports().

#define rohc_comp_debug	(		context,
			format,
			...
	)

Value:

rohc_debug((context)->compressor, ROHC_TRACE_COMP, \
                   (context)->profile->id, \
                   format, ##__VA_ARGS__)

Print a debug trace for the given compression context

Referenced by c_generic_create(), c_generic_encode(), c_generic_feedback(), c_ip_code_ir_remainder(), c_ip_decide_FO_packet(), c_ip_decide_SO_packet(), changed_dynamic_both_hdr(), changed_dynamic_one_hdr(), changed_fields(), changed_static_one_hdr(), code_EXT1_packet(), code_EXT2_packet(), code_EXT3_packet(), code_ipv4_dynamic_part(), code_ipv4_static_part(), code_ipv6_dynamic_part(), code_ipv6_static_part(), code_IR_DYN_packet(), code_IR_packet(), code_packet(), code_UO0_packet(), code_UO1_packet(), code_UO2_packet(), code_uo_remainder(), code_UOR2_bytes(), code_UOR2_ID_bytes(), code_UOR2_RTP_bytes(), code_UOR2_TS_bytes(), decide_extension(), decide_state(), header_fields(), header_flags(), rtp_header_flags_and_fields(), udp_code_static_udp_part(), and udp_code_uo_remainder().

#define ROHC_INIT_TS_STRIDE_MIN   3U

The minimal number of packets that must be sent while in INIT_STRIDE state before being able to switch to the SEND_SCALED state

#define ROHC_MAX_MRRU   65535

The maximal value for MRRU

Referenced by rohc_comp_set_mrru(), and rohc_decomp_set_mrru().

---

Typedef Documentation

typedef uint32_t rohc_ctxt_key_t

The key to help identify (not quaranted unique) a compression context
