rohc_comp_ctxt Struct Reference

The ROHC compression context. More...

#include <rohc_comp_internals.h>

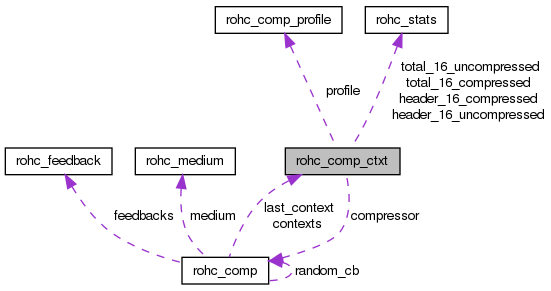

Collaboration diagram for rohc_comp_ctxt:

Data Fields
int	used
uint64_t	latest_used
uint64_t	first_used
rohc_cid_t	cid
rohc_ctxt_key_t	key
struct rohc_comp *	compressor
struct rohc_comp_profile *	profile
void *	specific
rohc_mode_t	mode
rohc_comp_state_t	state
rohc_packet_t	packet_type
int	total_uncompressed_size
int	total_compressed_size
int	header_uncompressed_size
int	header_compressed_size
int	total_last_uncompressed_size
int	total_last_compressed_size
int	header_last_uncompressed_size
int	header_last_compressed_size
int	num_sent_packets
int	num_sent_ir
int	num_sent_ir_dyn
int	num_recv_feedbacks
struct rohc_stats	total_16_uncompressed
struct rohc_stats	total_16_compressed
struct rohc_stats	header_16_uncompressed
struct rohc_stats	header_16_compressed

---

Detailed Description

The ROHC compression context.

---

Field Documentation

rohc_cid_t rohc_comp_ctxt::cid

The context unique ID (CID)

struct rohc_comp* rohc_comp_ctxt::compressor

The associated compressor

uint64_t rohc_comp_ctxt::first_used

The time when the context was last used (in seconds)

struct rohc_stats rohc_comp_ctxt::header_16_compressed

The size of the last 16 compressed headers

struct rohc_stats rohc_comp_ctxt::header_16_uncompressed

The size of the last 16 uncompressed headers

int rohc_comp_ctxt::header_compressed_size

The average size of the compressed headers

int rohc_comp_ctxt::header_last_compressed_size

The header size of the last compressed packet

int rohc_comp_ctxt::header_last_uncompressed_size

The header size of the last uncompressed packet

int rohc_comp_ctxt::header_uncompressed_size

The average size of the uncompressed headers

rohc_ctxt_key_t rohc_comp_ctxt::key

The key to help finding the context associated with a packet

uint64_t rohc_comp_ctxt::latest_used

The time when the context was created (in seconds)

rohc_mode_t rohc_comp_ctxt::mode

The operation mode in which the context operates among: ROHC_U_MODE, ROHC_O_MODE, ROHC_R_MODE

int rohc_comp_ctxt::num_recv_feedbacks

The number of received feedbacks

int rohc_comp_ctxt::num_sent_ir

The number of sent IR packets

int rohc_comp_ctxt::num_sent_ir_dyn

The number of sent IR-DYN packets

int rohc_comp_ctxt::num_sent_packets

The number of sent packets

rohc_packet_t rohc_comp_ctxt::packet_type

struct rohc_comp_profile* rohc_comp_ctxt::profile

The associated profile

void* rohc_comp_ctxt::specific

Profile-specific data, defined by the profiles

rohc_comp_state_t rohc_comp_ctxt::state

The operation state in which the context operates: IR, FO, SO

struct rohc_stats rohc_comp_ctxt::total_16_compressed

The size of the last 16 compressed packets

struct rohc_stats rohc_comp_ctxt::total_16_uncompressed

The size of the last 16 uncompressed packets

int rohc_comp_ctxt::total_compressed_size

The average size of the compressed packets

int rohc_comp_ctxt::total_last_compressed_size

The total size of the last compressed packet

int rohc_comp_ctxt::total_last_uncompressed_size

The total size of the last uncompressed packet

int rohc_comp_ctxt::total_uncompressed_size

The average size of the uncompressed packets

int rohc_comp_ctxt::used

Whether the context is in use or not

---

The documentation for this struct was generated from the following file:

• rohc_comp_internals.h
