Generic framework for RFC3095-based compression profiles such as IP-only, UDP, UDP-Lite, ESP, and RTP profiles. More...
#include "rohc_comp_rfc3095.h"#include "c_rtp.h"#include "rohc_traces.h"#include "rohc_traces_internal.h"#include "rohc_debug.h"#include "rohc_packets.h"#include "rohc_utils.h"#include "rohc_bit_ops.h"#include "schemes/cid.h"#include "schemes/ip_id_offset.h"#include "schemes/comp_list_ipv6.h"#include "sdvl.h"#include "crc.h"#include <stdint.h>#include <string.h>#include <assert.h>#include "config.h"

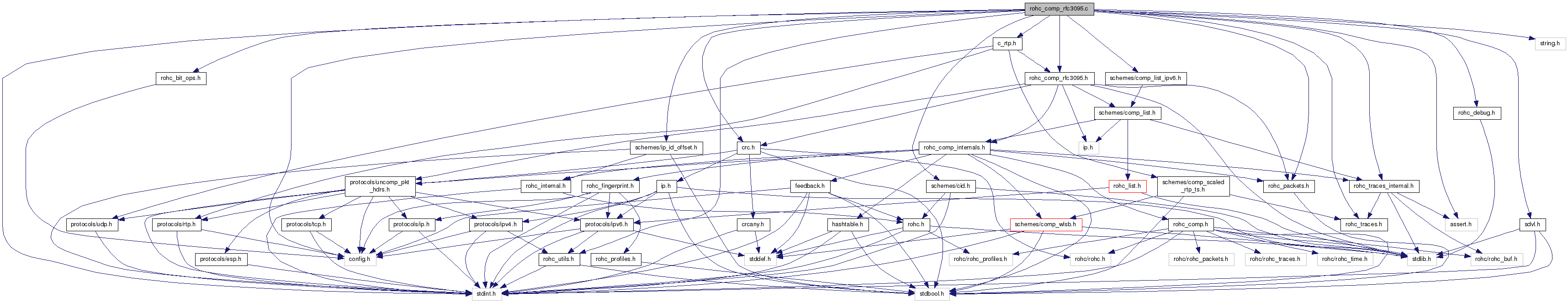

Include dependency graph for rohc_comp_rfc3095.c:
Functions | |
| static bool | ip_header_info_new (struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, const size_t oa_repetitions_nr, const int profile_id, rohc_trace_callback2_t trace_cb, void *const trace_cb_priv) |
| Initialize the IP header info stored in the context. More... | |
| static void | ip_header_info_free (struct ip_header_info *const header_info) |
| Reset the given IP header info. More... | |
| static void | c_init_tmp_variables (struct generic_tmp_vars *const tmp_vars) |
| Initialize all temporary variables stored in the context. More... | |
| static rohc_packet_t | decide_packet (struct rohc_comp_ctxt *const context) |
| Decide which packet to send when in the different states. More... | |
| static rohc_ext_t | decide_extension_uor2 (const struct rohc_comp_ctxt *const context, const bool innermost_ip_id_changed, const bool innermost_ip_id_3bits_possible, const bool innermost_ip_id_8bits_possible, const bool innermost_ip_id_11bits_possible, const bool outermost_ip_id_changed, const bool outermost_ip_id_11bits_possible) |
| Decide what extension shall be used in the UOR-2 packet (non-RTP). More... | |
| static rohc_ext_t | decide_extension_uor2rtp (const struct rohc_comp_ctxt *const context, const bool innermost_ip_id_changed, const bool outermost_ip_id_changed) |
| Decide what extension shall be used in the UOR-2 packet (RTP). More... | |
| static rohc_ext_t | decide_extension_uor2ts (const struct rohc_comp_ctxt *const context, const bool innermost_ip_id_changed, const bool innermost_ip_id_8bits_possible, const bool outermost_ip_id_changed) |
| Decide what extension shall be used in the UO-1-ID/UOR-2 packet. More... | |
| static rohc_ext_t | decide_extension_uor2id (const struct rohc_comp_ctxt *const context, const bool innermost_ip_id_5bits_possible, const bool innermost_ip_id_8bits_possible, const bool outermost_ip_id_changed) |
| Decide what extension shall be used in the UOR-2-ID packet. More... | |
| static rohc_ext_t | decide_extension_uo1id (const struct rohc_comp_ctxt *const context, const bool innermost_ip_id_5bits_possible, const bool innermost_ip_id_8bits_possible, const bool outermost_ip_id_changed) |
| Decide what extension shall be used in the UO-1-ID packet. More... | |
| static int | code_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the ROHC packet to send. More... | |
| static int | code_IR_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the IR packet. More... | |
| static int | code_IR_DYN_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the IR-DYN packet. More... | |
| static int | rohc_code_static_part (const struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, int counter) |
| Build the static part of the IR packet. More... | |
| static int | rohc_code_static_ip_part (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, uint8_t *const dest, int counter) |
| Build the static part of one IP header for the IR packet. More... | |
| static int | code_ipv4_static_part (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, uint8_t *const dest, int counter) |
| Build the IPv4 static part of the IR packet. More... | |
| static int | code_ipv6_static_part (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, uint8_t *const dest, int counter) |
| Build the IPv6 static part of the IR packet. More... | |
| static int | rohc_code_dynamic_part (const struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, int counter) |
| Build the dynamic part of the IR and IR-DYN packets. More... | |
| static int | rohc_code_dynamic_ip_part (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const bool ext_list_changed, const struct rohc_pkt_ip_hdr *const ip, uint8_t *const dest, int counter) |
| Build the dynamic part of one IP header for the IR/IR-DYN packets. More... | |
| static int | code_ipv4_dynamic_part (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, uint8_t *const dest, int counter) |
| Build the IPv4 dynamic part of the IR and IR-DYN packets. More... | |
| static int | code_ipv6_dynamic_part (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const bool ext_list_changed, const struct rohc_pkt_ip_hdr *const ip, uint8_t *const dest, int counter) |
| Build the IPv6 dynamic part of the IR and IR-DYN packets. More... | |
| static int | code_uo_remainder (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const dest, int counter) |
| Build the tail of the UO packet. More... | |
| static int | code_UO0_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the UO-0 packet. More... | |
| static int | rohc_comp_rfc3095_build_uo1_pkt (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the UO-1 packet for the non-RTP profiles. More... | |
| static int | rohc_comp_rfc3095_build_uo1rtp_pkt (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the UO-1 packet for the RTP profiles. More... | |
| static int | rohc_comp_rfc3095_build_uo1ts_pkt (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the UO-1-TS packet. More... | |
| static int | rohc_comp_rfc3095_build_uo1id_pkt (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the UO-1-ID packet. More... | |
| static int | code_UO2_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, const rohc_packet_t packet_type) |
| Build the UO-2 packet. More... | |
| static int | code_UOR2_bytes (const struct rohc_comp_ctxt *const context, const rohc_packet_t packet_type, uint8_t *const f_byte, uint8_t *const s_byte, uint8_t *const t_byte) |
| Code some fields of the UOR-2 packet. More... | |
| static int | code_UOR2_RTP_bytes (const struct rohc_comp_ctxt *const context, const rohc_packet_t packet_type, uint8_t *const f_byte, uint8_t *const s_byte, uint8_t *const t_byte) |
| Code some fields of the UOR-2-RTP packet. More... | |
| static int | code_UOR2_TS_bytes (const struct rohc_comp_ctxt *const context, const rohc_packet_t packet_type, uint8_t *const f_byte, uint8_t *const s_byte, uint8_t *const t_byte) |
| Code some fields of the UOR-2-TS packet. More... | |
| static int | code_UOR2_ID_bytes (const struct rohc_comp_ctxt *const context, const rohc_packet_t packet_type, uint8_t *const f_byte, uint8_t *const s_byte, uint8_t *const t_byte) |
| Code some fields of the UOR-2-ID packet. More... | |
| static int | code_EXT0_packet (const struct rohc_comp_ctxt *const context, uint8_t *const dest, int counter, const rohc_packet_t packet_type) |
| Build the extension 0 of the UO-2 packet. More... | |
| static int | code_EXT1_packet (const struct rohc_comp_ctxt *const context, uint8_t *const dest, int counter, const rohc_packet_t packet_type) |
| Build the extension 1 of the UO-2 packet. More... | |
| static int | code_EXT2_packet (const struct rohc_comp_ctxt *const context, uint8_t *const dest, int counter, const rohc_packet_t packet_type) |
| Build the extension 2 of the UO-2 packet. More... | |
| static int | code_EXT3_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const dest, int counter, const rohc_packet_t packet_type) |
| Build the extension 3 of the UO* packet types. More... | |
| static int | code_EXT3_rtp_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const dest, int counter, const rohc_packet_t packet_type) |
| Build the extension 3 of the UO-2 packet. More... | |
| static int | code_EXT3_nortp_packet (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const dest, int counter, const rohc_packet_t packet_type) |
| Build the extension 3 of the UO-2 packet. More... | |
| static int | rtp_header_flags_and_fields (const struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const dest, int counter) |
| static int | header_flags (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, const struct rfc3095_ip_hdr_changes *const changes, const int ip2_or_I2, uint8_t *const dest, int counter) |
| Build inner or outer IP header flags. More... | |
| static int | header_fields (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, const struct rfc3095_ip_hdr_changes *const changes, const int I, const ip_header_pos_t ip_hdr_pos, uint8_t *const dest, int counter) |
| Build inner or outer IP header fields. More... | |
| static uint8_t | compute_uo_crc (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, const rohc_crc_type_t crc_type, const uint8_t crc_init) |
| Compute the CRC for a UO* packet. More... | |
| static void | update_context (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs) |
| Update the compression context with the successfully compressed packet. More... | |
| static void | update_context_ip_hdr (const struct rohc_comp_ctxt *const context, struct ip_header_info *const ip_flags, const struct rohc_pkt_ip_hdr *const ip) |
| Update the IP information with the IP header. More... | |
| static void | rohc_comp_rfc3095_detect_changes (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs) |
| Detect changes between packet and context. More... | |
| static void | detect_ip_changes (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const ip, struct rfc3095_ip_hdr_changes *const changes) |
| Find the IP fields that changed between the profile and a new IP packet. More... | |
| static void | detect_ip_id_behaviours (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs) |
| Detect the behaviour of the IP-ID fields of the IPv4 headers. More... | |
| static void | detect_ip_id_behaviour (const struct rohc_comp_ctxt *const context, struct ip_header_info *const header_info, const struct rohc_pkt_ip_hdr *const uncomp_pkt_ip_hdr) |
| Detect the behaviour of the IP-ID field of the given IPv4 header. More... | |
| static bool | encode_uncomp_fields (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs) |
| Encode uncompressed fields with the corresponding encoding scheme. More... | |
| static void | rohc_get_innermost_ipv4_non_rnd (const struct rohc_comp_ctxt *const context, ip_header_pos_t *const pos, bool *const is_5bits_possible, uint16_t *const offset) |
| Determine the number of IP-ID bits and the IP-ID offset of the innermost IPv4 header with non-random IP-ID. More... | |
| static void | rohc_comp_rfc3095_get_ext3_I_flags (const struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, const rohc_packet_t packet_type, ip_header_pos_t *const innermost_ipv4_non_rnd, uint8_t *const I, uint8_t *const I2) |
| Determine the values of the I and I2 flags for UO* extension 3. More... | |
| static bool | rohc_comp_rfc3095_feedback_2 (struct rohc_comp_ctxt *const context, const uint8_t *const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len) |
| Update the profile when FEEDBACK-2 is received. More... | |
| static void | rohc_comp_rfc3095_feedback_ack (struct rohc_comp_ctxt *const context, const uint32_t sn_bits, const size_t sn_bits_nr, const bool sn_not_valid) |
| Perform the required actions after the reception of a positive ACK. More... | |
| bool | rohc_comp_rfc3095_create (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs) |
| Create a new context and initialize it thanks to the given IP packet. More... | |
| void | rohc_comp_rfc3095_destroy (struct rohc_comp_ctxt *const context) |
| Destroy the context. More... | |
| int | rohc_comp_rfc3095_encode (struct rohc_comp_ctxt *const context, const struct rohc_pkt_hdrs *const uncomp_pkt_hdrs, uint8_t *const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t *const packet_type) |
| Encode an IP packet according to a pattern decided by several different factors. More... | |
| bool | rohc_comp_rfc3095_feedback (struct rohc_comp_ctxt *const context, const enum rohc_feedback_type feedback_type, const uint8_t *const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len) |
| Update the profile when feedback is received. More... | |
| rohc_ext_t | decide_extension (const struct rohc_comp_ctxt *const context, const rohc_packet_t packet_type) |
| Decide what extension shall be used in the UO-1-ID/UOR-2 packet. More... | |
| void | rohc_get_ipid_bits (const struct rohc_comp_ctxt *const context, bool *const innermost_ip_id_changed, bool *const innermost_ip_id_3bits_possible, bool *const innermost_ip_id_5bits_possible, bool *const innermost_ip_id_8bits_possible, bool *const innermost_ip_id_11bits_possible, bool *const outermost_ip_id_changed, bool *const outermost_ip_id_11bits_possible) |
| Get the number of non-random outer/inner IP-ID bits. More... | |
Detailed Description
Generic framework for RFC3095-based compression profiles such as IP-only, UDP, UDP-Lite, ESP, and RTP profiles.
Function Documentation
◆ c_init_tmp_variables()
|
static |
Initialize all temporary variables stored in the context.
- Parameters
-
tmp_vars The temporary variables to initialize
◆ code_EXT0_packet()
|
static |
Build the extension 0 of the UO-2 packet.
Extension 0 for non-RTP profiles (5.11.4):
+---+---+---+---+---+---+---+---+
1 | 0 0 | SN | IP-ID |
+---+---+---+---+---+---+---+---+
Extension 0 for RTP profile (5.7.5):
+---+---+---+---+---+---+---+---+
1 | 0 0 | SN | +T |
+---+---+---+---+---+---+---+---+
if T = 0 -> +T = IP-ID
-> -T = TS
if T = 1 -> +T = TS
-> -T = IP-ID
no T bit -> +T = -T = TS- Parameters
-
context The compression context dest The ROHC buffer counter The current position in the ROHC buffer packet_type The type of ROHC packet that is created
- Returns
- The new position in the ROHC buffer if successful, -1 otherwise
◆ code_EXT1_packet()
|
static |
Build the extension 1 of the UO-2 packet.
Extension 1 for non-RTP profiles (5.11.4):
+---+---+---+---+---+---+---+---+
1 | 0 1 | SN | IP-ID |
+---+---+---+---+---+---+---+---+
2 | IP-ID |
+---+---+---+---+---+---+---+---+
Extension 1 for RTP profile (5.7.5):
+---+---+---+---+---+---+---+---+
1 | 0 1 | SN | +T |
+---+---+---+---+---+---+---+---+
2 | -T |
+---+---+---+---+---+---+---+---+
if T = 0 -> +T = IP-ID
-> -T = TS
if T = 1 -> +T = TS
-> -T = IP-ID
no T bit -> +T = -T = TS- Parameters
-
context The compression context dest The ROHC buffer counter The current position in the ROHC buffer packet_type The type of ROHC packet that is created
- Returns
- The new position in the ROHC buffer if successful, -1 otherwise
◆ code_EXT2_packet()
|
static |
Build the extension 2 of the UO-2 packet.
Extension 2 for non-RTP profiles (5.11.4):
+---+---+---+---+---+---+---+---+
1 | 1 0 | SN | IP-ID2 |
+---+---+---+---+---+---+---+---+
2 | IP-ID2 |
+---+---+---+---+---+---+---+---+
3 | IP-ID |
+---+---+---+---+---+---+---+---+
IP-ID2 is for outer IP-ID field
Extension 2 for RTP profile (5.7.5):
+---+---+---+---+---+---+---+---+
1 | 1 0 | SN | +T |
+---+---+---+---+---+---+---+---+
2 | +T |
+---+---+---+---+---+---+---+---+
3 | -T |
+---+---+---+---+---+---+---+---+
if T = 0 -> +T = IP-ID
-> -T = TS
if T = 1 -> +T = TS
-> -T = IP-ID
no T bit -> +T = -T = TS- Parameters
-
context The compression context dest The ROHC buffer counter The current position in the ROHC buffer packet_type The type of ROHC packet that is created
- Returns
- The new position in the ROHC buffer if successful, -1 otherwise
◆ code_EXT3_nortp_packet()
|
static |
Build the extension 3 of the UO-2 packet.
Extension 3 for non-RTP profiles (5.7.5 & 5.11.4):
0 1 2 3 4 5 6 7
+-----+-----+-----+-----+-----+-----+-----+-----+
1 | 1 1 | S | Mode | I | ip | ip2 |
+-----+-----+-----+-----+-----+-----+-----+-----+
2 | Inner IP header flags | | if ip = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
3 | Outer IP header flags | if ip2 = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
4 | SN | if S = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
| |
5 / Inner IP header fields / variable,
| | if ip = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
6 | IP-ID | 2 octets, if I = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
| |
7 / Outer IP header fields / variable,
| | if ip2 = 1
+-----+-----+-----+-----+-----+-----+-----+-----+- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode dest The ROHC buffer counter The current position in the ROHC buffer packet_type The type of ROHC packet that is created
- Returns
- The new position in the ROHC buffer if successful, -1 otherwise
◆ code_EXT3_packet()
|
static |
Build the extension 3 of the UO* packet types.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode dest The ROHC buffer counter The current position in the ROHC buffer packet_type The type of ROHC packet that is created
- Returns
- The new position in the ROHC buffer if successful, -1 otherwise
◆ code_EXT3_rtp_packet()
|
static |
Build the extension 3 of the UO-2 packet.
Extension 3 for RTP profile (5.7.5):
0 1 2 3 4 5 6 7
+-----+-----+-----+-----+-----+-----+-----+-----+
1 | 1 1 | S |R-TS | Tsc | I | ip | rtp |
+-----+-----+-----+-----+-----+-----+-----+-----+
2 | Inner IP header flags | ip2 | if ip = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
3 | Outer IP header flags | if ip2 = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
4 | SN | if S = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
| |
5 / TS / 1-4 octets, if R-TS = 1
| |
+-----+-----+-----+-----+-----+-----+-----+-----+
| |
6 / Inner IP header fields / variable,
| | if ip = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
7 | IP-ID | 2 octets, if I = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
| |
8 / Outer IP header fields / variable,
| | if ip2 = 1
+-----+-----+-----+-----+-----+-----+-----+-----+
| | variable,
9 / RTP Header flags and fields / if rtp = 1
| |
+-----+-----+-----+-----+-----+-----+-----+-----+- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode dest The ROHC buffer counter The current position in the ROHC buffer packet_type The type of ROHC packet that is created
- Returns
- The new position in the ROHC buffer if successful, -1 otherwise
◆ code_ipv4_dynamic_part()
|
static |
Build the IPv4 dynamic part of the IR and IR-DYN packets.
Dynamic part IPv4 (5.7.7.4):
+---+---+---+---+---+---+---+---+
1 | Type of Service |
+---+---+---+---+---+---+---+---+
2 | Time to Live |
+---+---+---+---+---+---+---+---+
3 / Identification / 2 octets, sent verbatim
+---+---+---+---+---+---+---+---+
4 | DF|RND|NBO|SID| 0 |
+---+---+---+---+---+---+---+---+
5 / Generic extension header list / variable length
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context header_info The IP header info stored in the profile ip The IPv4 header the dynamic part is built for dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ code_ipv4_static_part()
|
static |
Build the IPv4 static part of the IR packet.
Static part IPv4 (5.7.7.4):
+---+---+---+---+---+---+---+---+
1 | Version = 4 | 0 |
+---+---+---+---+---+---+---+---+
2 | Protocol |
+---+---+---+---+---+---+---+---+
3 / Source Address / 4 octets
+---+---+---+---+---+---+---+---+
4 / Destination Address / 4 octets
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context header_info The IP header info stored in the profile ip The IPv4 header the static part is built for dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ code_ipv6_dynamic_part()
|
static |
Build the IPv6 dynamic part of the IR and IR-DYN packets.
Dynamic part IPv6 (5.7.7.3):
+---+---+---+---+---+---+---+---+
1 | Traffic Class | 1 octet
+---+---+---+---+---+---+---+---+
2 | Hop Limit | 1 octet
+---+---+---+---+---+---+---+---+
3 / Generic extension header list / variable length
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context header_info The IP header info stored in the profile ext_list_changed Whether extension header list changed ip The IPv6 header the dynamic part is built for dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer, -1 in case of error
◆ code_ipv6_static_part()
|
static |
Build the IPv6 static part of the IR packet.
Static part IPv6 (5.7.7.3):
+---+---+---+---+---+---+---+---+
1 | Version = 6 |Flow Label(msb)| 1 octet
+---+---+---+---+---+---+---+---+
2 / Flow Label (lsb) / 2 octets
+---+---+---+---+---+---+---+---+
3 | Next Header | 1 octet
+---+---+---+---+---+---+---+---+
4 / Source Address / 16 octets
+---+---+---+---+---+---+---+---+
5 / Destination Address / 16 octets
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context header_info The IP header info stored in the profile ip The IPv6 header the static part is built for dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ code_IR_DYN_packet()
|
static |
Build the IR-DYN packet.
IR-DYN packet (5.7.7.2):
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet : if for small CIDs and CID != 0
+---+---+---+---+---+---+---+---+
2 | 1 1 1 1 1 0 0 0 | IR-DYN packet type
+---+---+---+---+---+---+---+---+
: :
3 / 0-2 octets of CID info / 1-2 octets if for large CIDs
: :
+---+---+---+---+---+---+---+---+
4 | Profile | 1 octet
+---+---+---+---+---+---+---+---+
5 | CRC | 1 octet
+---+---+---+---+---+---+---+---+
| |
6 / Dynamic chain / variable length
| |
+---+---+---+---+---+---+---+---+
7 | SN | 2 octets if not RTP nor ESP
+---+---+---+---+---+---+---+---+
: :
/ Payload / variable length
: :
- - - - - - - - - - - - - - - -- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt OUT: The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ code_IR_packet()
|
static |
Build the IR packet.
IR packet (5.7.7.1):
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 | Add-CID octet | if for small CIDs and CID != 0
+---+---+---+---+---+---+---+---+
2 | 1 1 1 1 1 1 0 | D |
+---+---+---+---+---+---+---+---+
| |
3 / 0-2 octets of CID info / 1-2 octets if for large CIDs
| |
+---+---+---+---+---+---+---+---+
4 | Profile | 1 octet
+---+---+---+---+---+---+---+---+
5 | CRC | 1 octet
+---+---+---+---+---+---+---+---+
| |
6 | Static chain | variable length
| |
+---+---+---+---+---+---+---+---+
| |
7 | Dynamic chain | present if D = 1, variable length
| |
+---+---+---+---+---+---+---+---+
8 | SN | 2 octets if not RTP nor ESP
+---+---+---+---+---+---+---+---+
| |
| Payload | variable length
| |
- - - - - - - - - - - - - - - -- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt OUT: The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ code_packet()
|
static |
Build the ROHC packet to send.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt OUT: The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet to create
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ code_UO0_packet()
|
static |
Build the UO-0 packet.
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet :
+---+---+---+---+---+---+---+---+
2 | first octet of base header |
+---+---+---+---+---+---+---+---+
: :
3 / 0, 1, or 2 octets of CID /
: :
+---+---+---+---+---+---+---+---+
UO-0 (5.7.1)
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 0 | SN | CRC |
+===+===+===+===+===+===+===+===+- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt OUT: The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ code_UO2_packet()
|
static |
Build the UO-2 packet.
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet :
+---+---+---+---+---+---+---+---+
2 | first octet of base header |
+---+---+---+---+---+---+---+---+
: :
3 / 0, 1, or 2 octets of CID /
: :
+---+---+---+---+---+---+---+---+
UOR-2 (5.11.3):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | SN |
+===+===+===+===+===+===+===+===+
5 | X | CRC |
+---+---+---+---+---+---+---+---+
UOR-2-RTP (5.7.4):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | TS |
+===+===+===+===+===+===+===+===+
4 | TS| M | SN |
+---+---+---+---+---+---+---+---+
5 | X | CRC |
+---+---+---+---+---+---+---+---+
UOR-2-TS (5.7.4):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | TS |
+===+===+===+===+===+===+===+===+
4 |T=1| M | SN |
+---+---+---+---+---+---+---+---+
5 | X | CRC |
+---+---+---+---+---+---+---+---+
UOR-2-ID (5.7.4):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | IP-ID |
+===+===+===+===+===+===+===+===+
4 |T=0| M | SN |
+---+---+---+---+---+---+---+---+
5 | X | CRC |
+---+---+---+---+---+---+---+---+
+---+---+---+---+---+---+---+---+
: :
6 / Extension /
: :
--- --- --- --- --- --- --- ---
X: X = 0 indicates that no extension is present;
X = 1 indicates that an extension is present.
T: T = 0 indicates format UOR-2-ID;
T = 1 indicates format UOR-2-TS.- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt OUT: The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ code_uo_remainder()
|
static |
Build the tail of the UO packet.
The general format for the UO packets is:
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet : |
+---+---+---+---+---+---+---+---+ |
2 | first octet of base header | |
+---+---+---+---+---+---+---+---+ |
: : |
3 / 0, 1, or 2 octets of CID / |
: : |
+---+---+---+---+---+---+---+---+ |
4 / remainder of base header / |
+---+---+---+---+---+---+---+---+ |
: : |
5 / Extension / |
: : |
--- --- --- --- --- --- --- --- |
: : |
6 + IP-ID of outer IPv4 header +
: : (see section 5.7 or [RFC-3095])
--- --- --- --- --- --- --- ---
7 / AH data for outer list / |
--- --- --- --- --- --- --- --- |
: : |
8 + GRE checksum + |
: : |
--- --- --- --- --- --- --- --- |
: : |
9 + IP-ID of inner IPv4 header + |
: : |
--- --- --- --- --- --- --- --- |
10 / AH data for inner list / |
--- --- --- --- --- --- --- --- |
: : |
11 + GRE checksum + |
: : |
--- --- --- --- --- --- --- ---
: List of :
12 / Dynamic chains / variable, given by static chain
: for additional IP headers : (includes no SN)
--- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- ---
: : RTP/UDP profiles only [RFC-3095]
13 + UDP Checksum + 2 octets,
: : if context(UDP Checksum) != 0
--- --- --- --- --- --- --- ---Parts 7, 8, 10, 11 and 12 are not supported. Parts 1, 2, 3, 4 and 5 are built in packet-specific functions. Parts 6 and 9 are built in this function. Part 13 is built in profile-specific function.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ code_UOR2_bytes()
|
static |
Code some fields of the UOR-2 packet.
This function is called by code_UO2_packet. It should not be called directly.
- See also
- code_UO2_packet
UOR-2 (5.11.3):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | SN |
+===+===+===+===+===+===+===+===+
5 | X | CRC |
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context packet_type The packet type to build f_byte IN/OUT: The first byte of the UOR-2 packet s_byte IN/OUT: Not used by the UOR-2 packet t_byte IN/OUT: The second byte of the UOR-2 packet
- Returns
- 1 if successful, 0 otherwise
◆ code_UOR2_ID_bytes()
|
static |
Code some fields of the UOR-2-ID packet.
This function is called by code_UO2_packet. It should not be called directly.
- See also
- code_UO2_packet
UOR-2-ID (5.7.4):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | IP-ID |
+===+===+===+===+===+===+===+===+
4 |T=0| M | SN |
+---+---+---+---+---+---+---+---+
5 | X | CRC |
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context packet_type The packet type to build f_byte IN/OUT: The first byte of the UOR-2-ID packet s_byte IN/OUT: The second byte of the UOR-2-ID packet t_byte IN/OUT: The third byte of the UOR-2-ID packet
- Returns
- 1 if successful, 0 otherwise
◆ code_UOR2_RTP_bytes()
|
static |
Code some fields of the UOR-2-RTP packet.
This function is called by code_UO2_packet. It should not be called directly.
- See also
- code_UO2_packet
UOR-2-RTP (5.7.4):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | TS |
+===+===+===+===+===+===+===+===+
4 | TS| M | SN |
+---+---+---+---+---+---+---+---+
5 | X | CRC |
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context packet_type The packet type to build f_byte IN/OUT: The first byte of the UOR-2-RTP packet s_byte IN/OUT: The second byte of the UOR-2-RTP packet t_byte IN/OUT: The third byte of the UOR-2-RTP packet
- Returns
- 1 if successful, 0 otherwise
◆ code_UOR2_TS_bytes()
|
static |
Code some fields of the UOR-2-TS packet.
This function is called by code_UO2_packet. It should not be called directly.
- See also
- code_UO2_packet
UOR-2-TS (5.7.4):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 1 0 | TS |
+===+===+===+===+===+===+===+===+
4 |T=1| M | SN |
+---+---+---+---+---+---+---+---+
5 | X | CRC |
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context packet_type The packet type to build f_byte IN/OUT: The first byte of the UOR-2-TS packet s_byte IN/OUT: The second byte of the UOR-2-TS packet t_byte IN/OUT: The third byte of the UOR-2-TS packet
- Returns
- 1 if successful, 0 otherwise
◆ compute_uo_crc()
|
static |
Compute the CRC for a UO* packet.
- Parameters
-
context The compression context to update uncomp_pkt_hdrs The uncompressed headers to encode crc_type The type of CRC to compute crc_init The initial value of the CRC
- Returns
- The computed CRC
◆ decide_extension()
| rohc_ext_t decide_extension | ( | const struct rohc_comp_ctxt *const | context, |
| const rohc_packet_t | packet_type | ||
| ) |
Decide what extension shall be used in the UO-1-ID/UOR-2 packet.
Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.
- Parameters
-
context The compression context packet_type The type of ROHC packet that is created
- Returns
- The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3 if successful, ROHC_EXT_UNKNOWN otherwise
◆ decide_extension_uo1id()
|
static |
Decide what extension shall be used in the UO-1-ID packet.
Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.
- Parameters
-
context The compression context innermost_ip_id_5bits_possible Whether the innermost IP-ID may be encoded on 5 bits innermost_ip_id_8bits_possible Whether the innermost IP-ID may be encoded on 8 bits outermost_ip_id_changed Whether the outermost IP-ID changed
- Returns
- The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3
◆ decide_extension_uor2()
|
static |
Decide what extension shall be used in the UOR-2 packet (non-RTP).
Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.
- Parameters
-
context The compression context innermost_ip_id_changed Whether the innermost IP-ID changed innermost_ip_id_3bits_possible Whether the innermost IP-ID may be encoded on 3 bits innermost_ip_id_8bits_possible Whether the innermost IP-ID may be encoded on 8 bits innermost_ip_id_11bits_possible Whether the innermost IP-ID may be encoded on 11 bits outermost_ip_id_changed Whether the outermost IP-ID changed outermost_ip_id_11bits_possible Whether the outermost IP-ID may be encoded on 11 bits
- Returns
- The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3
◆ decide_extension_uor2id()
|
static |
Decide what extension shall be used in the UOR-2-ID packet.
Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.
- Parameters
-
context The compression context innermost_ip_id_5bits_possible Whether the innermost IP-ID may be encoded on 5 bits innermost_ip_id_8bits_possible Whether the innermost IP-ID may be encoded on 8 bits outermost_ip_id_changed Whether the outermost IP-ID changed
- Returns
- The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3
◆ decide_extension_uor2rtp()
|
static |
Decide what extension shall be used in the UOR-2 packet (RTP).
Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.
- Parameters
-
context The compression context innermost_ip_id_changed Whether the innermost IP-ID changed outermost_ip_id_changed Whether the outermost IP-ID changed
- Returns
- The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3
◆ decide_extension_uor2ts()
|
static |
Decide what extension shall be used in the UO-1-ID/UOR-2 packet.
Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.
- Parameters
-
context The compression context innermost_ip_id_changed Whether the innermost IP-ID changed innermost_ip_id_8bits_possible Whether the innermost IP-ID may be encoded on 8 bits outermost_ip_id_changed Whether the outermost IP-ID changed
- Returns
- The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3
◆ decide_packet()
|
static |
Decide which packet to send when in the different states.
In IR state, IR packets are used. In FO and SO, the profile-specific functions are called if they are defined, otherwise IR packets are used.
- Parameters
-
context The compression context
- Returns
- The packet type among ROHC_PACKET_IR, ROHC_PACKET_IR_DYN, ROHC_PACKET_UO_0, ROHC_PACKET_UO_1* and ROHC_PACKET_UOR_2* in case of success
- ROHC_PACKET_UNKNOWN in case of failure
◆ detect_ip_changes()
|
static |
Find the IP fields that changed between the profile and a new IP packet.
- Parameters
-
context The compression context header_info The header info stored in the profile ip The header of the new IP packet [out] changes The detected changes
◆ detect_ip_id_behaviour()
|
static |
Detect the behaviour of the IP-ID field of the given IPv4 header.
Detect how the IP-ID field behave:
- constant,
- increase in Network Bit Order (NBO),
- increase in Little Endian,
- randomly.
- Parameters
-
context The compression context header_info The header info stored in the profile uncomp_pkt_ip_hdr The uncompressed IP header to encode
◆ detect_ip_id_behaviours()
|
static |
Detect the behaviour of the IP-ID fields of the IPv4 headers.
Detect how the IP-ID fields behave:
- constant (not handled yet),
- increase in Network Bit Order (NBO),
- increase in Little Endian,
- randomly.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode
◆ encode_uncomp_fields()
|
static |
Encode uncompressed fields with the corresponding encoding scheme.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode
- Returns
- true in case of success, false otherwise
◆ header_fields()
|
static |
Build inner or outer IP header fields.
This function is used to code the IP header fields of the extension 3 of the UO-2 packet. The function is called twice (one for inner IP header and one for outer IP header) with different arguments.
- See also
- code_EXT3_packet
+-----+-----+-----+-----+-----+-----+-----+-----+
1 | Type of Service/Traffic Class | if TOS = 1
..... ..... ..... ..... ..... ..... ..... .....
2 | Time to Live/Hop Limit | if TTL = 1
..... ..... ..... ..... ..... ..... ..... .....
3 | Protocol/Next Header | if PR = 1
..... ..... ..... ..... ..... ..... ..... .....
4 / IP extension headers / variable, if IPX = 1
..... ..... ..... ..... ..... ..... ..... .....
For outer IP-ID:
..... ..... ..... ..... ..... ..... ..... .....
5 | IP-ID | 2 octets,
..... ..... ..... ..... ..... ..... ..... ..... if I2 = 1Part 4 is not supported.
- Parameters
-
context The compression context header_info The header info stored in the profile ip One inner or outer IP header changes The IP fields that changed I The I flag of the IP header ip_hdr_pos The position of the IP header dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
- See also
- changed_fields
◆ header_flags()
|
static |
Build inner or outer IP header flags.
This function is used to code the IP header fields of the extension 3 of the UO-2 packet. The function is called twice (one for inner IP header and one for outer IP header) with different arguments.
- See also
- code_EXT3_packet
Header flags for IP and UDP profiles (5.11.4):
For inner flags:
+-----+-----+-----+-----+-----+-----+-----+-----+
1 | Inner IP header flags | | if ip = 1
| TOS | TTL | DF | PR | IPX | NBO | RND | ip2 | ip2 = 0 if non-RTP
+-----+-----+-----+-----+-----+-----+-----+-----+
or for outer flags:
+-----+-----+-----+-----+-----+-----+-----+-----+
2 | Outer IP header flags |
| TOS2| TTL2| DF2 | PR2 |IPX2 |NBO2 |RND2 | I2 | if ip2 = 1
+-----+-----+-----+-----+-----+-----+-----+-----+- Parameters
-
context The compression context header_info The header info stored in the profile ip One inner or outer IP header changes The IP fields that changed ip2_or_I2 Whether the ip2 (inner, RTP only) or I2 (outer) flag is set or not dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
- See also
- changed_fields
◆ ip_header_info_free()
|
static |
Reset the given IP header info.
- Parameters
-
header_info The IP header info to reset
◆ ip_header_info_new()
|
static |
Initialize the IP header info stored in the context.
- Parameters
-
header_info The IP header info to initialize ip The IP header oa_repetitions_nr The number of repetitions for Optimistic Approach profile_id The ID of the associated compression profile trace_cb The function to call for printing traces trace_cb_priv An optional private context, may be NULL
- Returns
- true if successful, false otherwise
◆ rohc_code_dynamic_ip_part()
|
static |
Build the dynamic part of one IP header for the IR/IR-DYN packets.
- Parameters
-
context The compression context header_info The IP header info stored in the profile ext_list_changed Whether extension header list changed ip The IP header the dynamic part is built for dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer, -1 in case of error
◆ rohc_code_dynamic_part()
|
static |
Build the dynamic part of the IR and IR-DYN packets.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ rohc_code_static_ip_part()
|
static |
Build the static part of one IP header for the IR packet.
- Parameters
-
context The compression context header_info The IP header info stored in the profile ip The IP header the static part is built for dest The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ rohc_code_static_part()
|
static |
Build the static part of the IR packet.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt The ROHC buffer counter The current position in the ROHC buffer
- Returns
- The new position in the ROHC buffer
◆ rohc_comp_rfc3095_build_uo1_pkt()
|
static |
Build the UO-1 packet for the non-RTP profiles.
The UO-1 packet type cannot be used if there is no IPv4 header in the context or if value(RND) and value(RND2) are both 1.
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet :
+---+---+---+---+---+---+---+---+
2 | first octet of base header |
+---+---+---+---+---+---+---+---+
: :
3 / 0, 1, or 2 octets of CID /
: :
+---+---+---+---+---+---+---+---+
UO-1 (5.11.3):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 0 | IP-ID |
+===+===+===+===+===+===+===+===+
4 | SN | CRC |
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode [out] rohc_pkt The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ rohc_comp_rfc3095_build_uo1id_pkt()
|
static |
Build the UO-1-ID packet.
The UO-1-ID packet type cannot be used if there is no IPv4 header in the context or if value(RND) and value(RND2) are both 1.
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet :
+---+---+---+---+---+---+---+---+
2 | first octet of base header |
+---+---+---+---+---+---+---+---+
: :
3 / 0, 1, or 2 octets of CID /
: :
+---+---+---+---+---+---+---+---+
UO-1-ID (5.7.3):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 0 |T=0| IP-ID |
+===+===+===+===+===+===+===+===+
4 | X | SN | CRC |
+---+---+---+---+---+---+---+---+
X: X = 0 indicates that no extension is present;
X = 1 indicates that an extension is present.
T: T = 0 indicates format UO-1-ID;
T = 1 indicates format UO-1-TS.- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode [out] rohc_pkt The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ rohc_comp_rfc3095_build_uo1rtp_pkt()
|
static |
Build the UO-1 packet for the RTP profiles.
The UO-1 packet type cannot be used if there is no IPv4 header in the context or if value(RND) and value(RND2) are both 1.
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet :
+---+---+---+---+---+---+---+---+
2 | first octet of base header |
+---+---+---+---+---+---+---+---+
: :
3 / 0, 1, or 2 octets of CID /
: :
+---+---+---+---+---+---+---+---+
UO-1 (5.7.3):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 0 | TS |
+===+===+===+===+===+===+===+===+
4 | M | SN | CRC |
+---+---+---+---+---+---+---+---+- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode [out] rohc_pkt The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ rohc_comp_rfc3095_build_uo1ts_pkt()
|
static |
Build the UO-1-TS packet.
0 1 2 3 4 5 6 7
--- --- --- --- --- --- --- ---
1 : Add-CID octet :
+---+---+---+---+---+---+---+---+
2 | first octet of base header |
+---+---+---+---+---+---+---+---+
: :
3 / 0, 1, or 2 octets of CID /
: :
+---+---+---+---+---+---+---+---+
UO-1-TS (5.7.3):
0 1 2 3 4 5 6 7
+---+---+---+---+---+---+---+---+
2 | 1 0 |T=1| TS |
+===+===+===+===+===+===+===+===+
4 | M | SN | CRC |
+---+---+---+---+---+---+---+---+
T: T = 0 indicates format UO-1-ID;
T = 1 indicates format UO-1-TS.- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode [out] rohc_pkt The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ rohc_comp_rfc3095_create()
| bool rohc_comp_rfc3095_create | ( | struct rohc_comp_ctxt *const | context, |
| const struct rohc_pkt_hdrs *const | uncomp_pkt_hdrs | ||
| ) |
Create a new context and initialize it thanks to the given IP packet.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to initialize the new context
- Returns
- true if successful, false otherwise
◆ rohc_comp_rfc3095_destroy()
| void rohc_comp_rfc3095_destroy | ( | struct rohc_comp_ctxt *const | context | ) |
Destroy the context.
This function is one of the functions that must exist in one profile for the framework to work.
- Parameters
-
context The compression context
◆ rohc_comp_rfc3095_detect_changes()
|
static |
Detect changes between packet and context.
- Parameters
-
context The compression context to compare uncomp_pkt_hdrs The uncompressed headers to encode
◆ rohc_comp_rfc3095_encode()
| int rohc_comp_rfc3095_encode | ( | struct rohc_comp_ctxt *const | context, |
| const struct rohc_pkt_hdrs *const | uncomp_pkt_hdrs, | ||
| uint8_t *const | rohc_pkt, | ||
| const size_t | rohc_pkt_max_len, | ||
| rohc_packet_t *const | packet_type | ||
| ) |
Encode an IP packet according to a pattern decided by several different factors.
- parse uncompressed packet (done in rohc_compress4)
- detect changes between the new uncompressed packet and the context
- decide new compressor state
- determine how many bytes are required for every field
- decide which packet to send
- code the ROHC header
- copy the packet payload (done in rohc_compress4)
- update the context with the new headers
This function is one of the functions that must exist in one profile for the framework to work.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode rohc_pkt OUT: The ROHC packet rohc_pkt_max_len The maximum length of the ROHC packet packet_type OUT: The type of ROHC packet that is created
- Returns
- The length of the ROHC packet if successful, -1 otherwise
◆ rohc_comp_rfc3095_feedback()
| bool rohc_comp_rfc3095_feedback | ( | struct rohc_comp_ctxt *const | context, |
| const enum rohc_feedback_type | feedback_type, | ||
| const uint8_t *const | packet, | ||
| const size_t | packet_len, | ||
| const uint8_t *const | feedback_data, | ||
| const size_t | feedback_data_len | ||
| ) |
Update the profile when feedback is received.
This function is one of the functions that must exist in one profile for the framework to work.
- Parameters
-
context The compression context feedback_type The feedback type packet The whole feedback packet with CID bits packet_len The length of the whole feedback packet with CID bits feedback_data The feedback data without the CID bits feedback_data_len The length of the feedback data without the CID bits
- Returns
- true if the feedback was successfully handled, false if the feedback could not be taken into account
◆ rohc_comp_rfc3095_feedback_2()
|
static |
Update the profile when FEEDBACK-2 is received.
- Parameters
-
context The compression context packet The whole feedback packet with CID bits packet_len The length of the whole feedback packet with CID bits feedback_data The feedback data without the CID bits feedback_data_len The length of the feedback data without the CID bits
- Returns
- true if the feedback was successfully handled, false if the feedback could not be taken into account
◆ rohc_comp_rfc3095_feedback_ack()
|
static |
Perform the required actions after the reception of a positive ACK.
- Parameters
-
context The compression context that received a positive ACK sn_bits The LSB bits of the acknowledged SN sn_bits_nr The number of LSB bits of the acknowledged SN sn_not_valid Whether the received SN may be considered as valid or not
◆ rohc_comp_rfc3095_get_ext3_I_flags()
|
static |
Determine the values of the I and I2 flags for UO* extension 3.
- Parameters
-
context The compression context uncomp_pkt_hdrs The uncompressed headers to encode packet_type The type of packet that is being built [out] innermost_ipv4_non_rnd The position of the innermost IPv4 header with a non-random IP-ID field [out] I The value of the I flag in UO extension 3, ie. whether the innermost IPv4 header with a non-random IP-ID needs to transmit some IP-ID bits [out] I2 The value of the I2 flag in UO extension 3, ie. whether the 2nd innermost IPv4 header with a non-random IP-ID needs to transmit some IP-ID bits
◆ rohc_get_innermost_ipv4_non_rnd()
|
static |
Determine the number of IP-ID bits and the IP-ID offset of the innermost IPv4 header with non-random IP-ID.
- Parameters
-
context The compression context [out] pos The position of the innermost IP header [out] is_5bits_possible Whether the innermost IP-ID may be encoded on 5 bits [out] offset The IP-ID offset of the innermost IP header
◆ rohc_get_ipid_bits()
| void rohc_get_ipid_bits | ( | const struct rohc_comp_ctxt *const | context, |
| bool *const | innermost_ip_id_changed, | ||
| bool *const | innermost_ip_id_3bits_possible, | ||
| bool *const | innermost_ip_id_5bits_possible, | ||
| bool *const | innermost_ip_id_8bits_possible, | ||
| bool *const | innermost_ip_id_11bits_possible, | ||
| bool *const | outermost_ip_id_changed, | ||
| bool *const | outermost_ip_id_11bits_possible | ||
| ) |
Get the number of non-random outer/inner IP-ID bits.
- Parameters
-
context The compression context [out] innermost_ip_id_changed Whether the innermost IP-ID changed [out] innermost_ip_id_3bits_possible Whether the innermost IP-ID may be encoded on 3 bits [out] innermost_ip_id_5bits_possible Whether the innermost IP-ID may be encoded on 5 bits [out] innermost_ip_id_8bits_possible Whether the innermost IP-ID may be encoded on 8 bits [out] innermost_ip_id_11bits_possible Whether the innermost IP-ID may be encoded on 11 bits [out] outermost_ip_id_changed Whether the outermost IP-ID changed [out] outermost_ip_id_11bits_possible Whether the outermost IP-ID may be encoded on 11 bits
◆ rtp_header_flags_and_fields()
|
static |
◆ update_context()
|
static |
Update the compression context with the successfully compressed packet.
- Parameters
-
context The compression context to update uncomp_pkt_hdrs The uncompressed headers to encode
◆ update_context_ip_hdr()
|
static |
Update the IP information with the IP header.
- Parameters
-
context The compression context ip_flags The IP context to update ip The uncompressed IP header that updates the context
