The ROHC compression context. More...

#include <rohc_comp_internals.h>

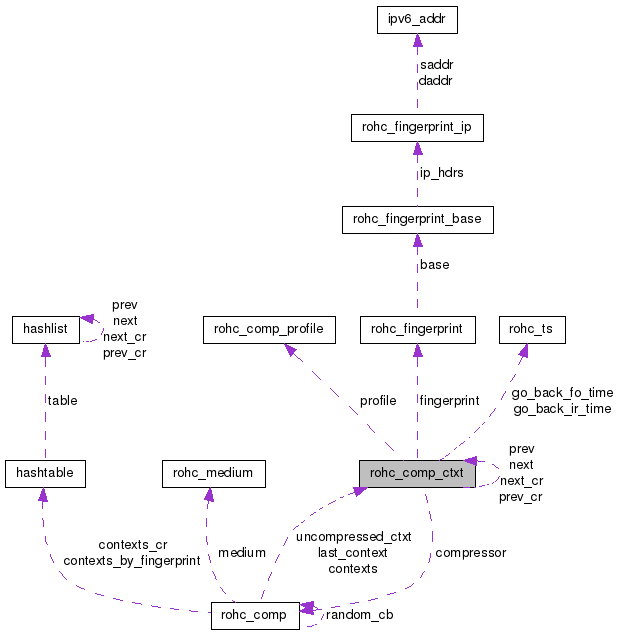

Collaboration diagram for rohc_comp_ctxt:

[legend]

Data Fields
struct rohc_comp_ctxt *	prev

struct rohc_comp_ctxt *	next

struct rohc_comp_ctxt *	prev_cr

struct rohc_comp_ctxt *	next_cr

struct rohc_fingerprint	fingerprint

int	used

uint64_t	latest_used

rohc_cid_t	cid

struct rohc_comp *	compressor

const struct rohc_comp_profile *	profile

void *	specific

bool	do_ctxt_replication

rohc_cid_t	cr_base_cid

rohc_mode_t	mode

rohc_comp_state_t	state

rohc_packet_t	packet_type

uint8_t	state_oa_repeat_nr

size_t	go_back_fo_count
	The number of packet sent while in SO state, used for the periodic refreshes of the context. More...

struct rohc_ts	go_back_fo_time
	The last time that the context was in FO state, used for the periodic refreshes of the context. More...

size_t	go_back_ir_count
	The number of packet sent while in FO or SO state, used for the periodic refreshes of the context. More...

struct rohc_ts	go_back_ir_time
	The last time that the context was in IR state, used for the periodic refreshes of the context. More...

int	total_uncompressed_size

int	total_compressed_size

int	header_uncompressed_size

int	header_compressed_size

int	total_last_uncompressed_size

int	total_last_compressed_size

int	header_last_uncompressed_size

int	header_last_compressed_size

int	num_sent_packets

Detailed Description

The ROHC compression context.

Field Documentation

◆ cid

rohc_cid_t rohc_comp_ctxt::cid

The context unique ID (CID)

◆ compressor

struct rohc_comp* rohc_comp_ctxt::compressor

The associated compressor

◆ cr_base_cid

rohc_cid_t rohc_comp_ctxt::cr_base_cid

The base context for Context Replication (CR)

◆ do_ctxt_replication

bool rohc_comp_ctxt::do_ctxt_replication

Whether Context Replication (CR) may be used

◆ fingerprint

struct rohc_fingerprint rohc_comp_ctxt::fingerprint

The fingerprint of the context

◆ go_back_fo_count

size_t rohc_comp_ctxt::go_back_fo_count

The number of packet sent while in SO state, used for the periodic refreshes of the context.

See also: rohc_comp_periodic_down_transition

◆ go_back_fo_time

struct rohc_ts rohc_comp_ctxt::go_back_fo_time

The last time that the context was in FO state, used for the periodic refreshes of the context.

See also: rohc_comp_periodic_down_transition

◆ go_back_ir_count

size_t rohc_comp_ctxt::go_back_ir_count

The number of packet sent while in FO or SO state, used for the periodic refreshes of the context.

See also: rohc_comp_periodic_down_transition

◆ go_back_ir_time

struct rohc_ts rohc_comp_ctxt::go_back_ir_time

The last time that the context was in IR state, used for the periodic refreshes of the context.

See also: rohc_comp_periodic_down_transition

◆ header_compressed_size

int rohc_comp_ctxt::header_compressed_size

The cumulated size of the compressed headers

◆ header_last_compressed_size

int rohc_comp_ctxt::header_last_compressed_size

The header size of the last compressed packet

◆ header_last_uncompressed_size

int rohc_comp_ctxt::header_last_uncompressed_size

The header size of the last uncompressed packet

◆ header_uncompressed_size

int rohc_comp_ctxt::header_uncompressed_size

The cumulated size of the uncompressed headers

◆ latest_used

uint64_t rohc_comp_ctxt::latest_used

The time when the context was last used (in seconds)

◆ mode

rohc_mode_t rohc_comp_ctxt::mode

The operation mode in which the context operates among: ROHC_U_MODE, ROHC_O_MODE, ROHC_R_MODE

◆ next

struct rohc_comp_ctxt* rohc_comp_ctxt::next

◆ next_cr

struct rohc_comp_ctxt* rohc_comp_ctxt::next_cr

◆ num_sent_packets

int rohc_comp_ctxt::num_sent_packets

The number of sent packets

◆ packet_type

rohc_packet_t rohc_comp_ctxt::packet_type

◆ prev

struct rohc_comp_ctxt* rohc_comp_ctxt::prev

◆ prev_cr

struct rohc_comp_ctxt* rohc_comp_ctxt::prev_cr

◆ profile

const struct rohc_comp_profile* rohc_comp_ctxt::profile

The associated profile

◆ specific

void* rohc_comp_ctxt::specific

Profile-specific data, defined by the profiles

◆ state

rohc_comp_state_t rohc_comp_ctxt::state

The operation state in which the context operates: IR, FO, SO

◆ state_oa_repeat_nr

uint8_t rohc_comp_ctxt::state_oa_repeat_nr

The number of packets sent while in the different compression states

◆ total_compressed_size

int rohc_comp_ctxt::total_compressed_size

The cumulated size of the compressed packets

◆ total_last_compressed_size

int rohc_comp_ctxt::total_last_compressed_size

The total size of the last compressed packet

◆ total_last_uncompressed_size

int rohc_comp_ctxt::total_last_uncompressed_size

The total size of the last uncompressed packet

◆ total_uncompressed_size

int rohc_comp_ctxt::total_uncompressed_size

The cumulated size of the uncompressed packets

◆ used

int rohc_comp_ctxt::used

Whether the context is in use or not

The documentation for this struct was generated from the following file:

rohc_comp_internals.h
