ROHC compression routines. More...

#include "rohc_comp.h"
#include "rohc_comp_internals.h"
#include "rohc_packets.h"
#include "rohc_traces.h"
#include "rohc_traces_internal.h"
#include "rohc_time_internal.h"
#include "rohc_debug.h"
#include "rohc_utils.h"
#include "sdvl.h"
#include "rohc_add_cid.h"
#include "rohc_bit_ops.h"
#include "ip.h"
#include "crc.h"
#include "protocols/ip.h"
#include "schemes/ipv6_exts.h"
#include "protocols/udp.h"
#include "protocols/ip_numbers.h"
#include "c_tcp_opts_list.h"
#include "feedback_parse.h"
#include "hashtable.h"
#include "hashtable_cr.h"
#include "config.h"
#include <string.h>
#include <inttypes.h>
#include <stdlib.h>
#include <stdbool.h>
#include <assert.h>
#include <stdarg.h>

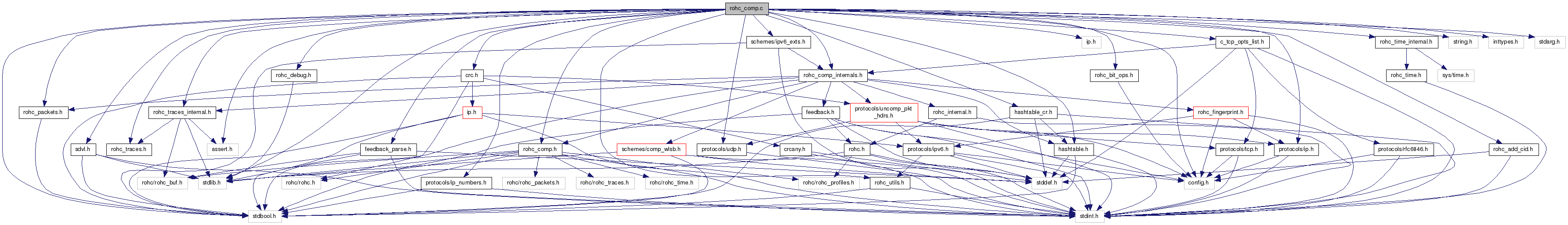

Include dependency graph for rohc_comp.c:

Enumerations
enum	rohc_ctxt_affinity_t { ROHC_AFFINITY_NONE = 0, ROHC_AFFINITY_LOW = 1, ROHC_AFFINITY_MED = 2, ROHC_AFFINITY_HIGH = 3 }

Functions
static rohc_profile_t	rohc_comp_get_profile (const struct rohc_comp const comp, const struct rohc_buf const packet, struct rohc_fingerprint const fingerprint, struct rohc_pkt_hdrs const pkt_hdrs)
	Get the best compression profile for the given network packet. More...

static bool	rohc_comp_are_ip_hdrs_supported (const struct rohc_comp const comp, const uint8_t const packet, const size_t packet_len, struct rohc_fingerprint const fingerprint, struct rohc_pkt_hdrs const pkt_hdrs, size_t const all_ip_hdrs_len, size_t const all_ipv6_exts_len)
	Are the given IP headers supported? More...

static rohc_profile_t	rohc_comp_get_profile_l4 (const struct rohc_comp const comp, const struct rohc_buf const packet, const rohc_profile_t l3_profile, const size_t all_ipv6_exts_len, const uint8_t l4_proto, const uint8_t const l4_data, const size_t l4_len, struct rohc_fingerprint const fingerprint, struct rohc_pkt_hdrs *const pkt_hdrs)
	Get the best compression profile for the given network packet. More...

static bool	rohc_comp_is_tcp_hdr_supported (const struct rohc_comp const comp, const uint8_t const packet, const size_t packet_len, struct rohc_pkt_hdrs const pkt_hdrs, size_t const tcp_hdr_full_len)
	Is the given TCP header supported? More...

static bool	rohc_comp_is_rtp_hdr_supported (const struct rohc_comp const comp, const uint8_t const packet, const size_t packet_len, struct rohc_pkt_hdrs *const pkt_hdrs)
	Is the given RTP header supported? More...

static bool	rohc_comp_profile_enabled_nocheck (const struct rohc_comp *const comp, const rohc_profile_t profile)
	Is the given compression profile enabled for a compressor? More...

static bool	c_create_contexts (struct rohc_comp *const comp)
	Create the array of compression contexts. More...

static void	c_destroy_contexts (struct rohc_comp *const comp)
	Destroy all the compression contexts in the context array. More...

static struct rohc_comp_ctxt *	c_create_context (struct rohc_comp const comp, const struct rohc_comp_profile const profile, const struct rohc_fingerprint const fingerprint, const struct rohc_pkt_hdrs const pkt_hdrs, const struct rohc_ts pkt_time)
	Create a compression context. More...

static struct rohc_comp_ctxt *	rohc_comp_find_ctxt (struct rohc_comp const comp, const struct rohc_comp_profile const profile, const struct rohc_buf const packet, const struct rohc_fingerprint const pkt_fingerprint, const struct rohc_pkt_hdrs *const pkt_hdrs)
	Find a compression context given an IP packet. More...

static struct rohc_comp_ctxt *	c_get_context (struct rohc_comp *const comp, const rohc_cid_t cid)
	Find out a context given its CID. More...

static rohc_ctxt_affinity_t	rohc_comp_get_ctxt_affinity (const struct rohc_comp_ctxt const ctxt, const struct rohc_fingerprint const pkt_fingerprint, const struct rohc_pkt_hdrs *const pkt_hdrs)
	Compute the affinity between the given packet and context. More...

static void	rohc_comp_decide_state (struct rohc_comp_ctxt *const context, struct rohc_ts pkt_time)
	Decide the state that should be used for the next packet. More...

static void	rohc_comp_periodic_down_transition (struct rohc_comp_ctxt *const context, const struct rohc_ts pkt_time)
	Periodically change the context state after a certain number of packets. More...

static bool	__rohc_comp_deliver_feedback (struct rohc_comp const comp, const uint8_t const packet, const size_t size)
	Deliver a feedback packet to the compressor. More...

static bool	rohc_comp_feedback_parse_cid (const struct rohc_comp const comp, const uint8_t const feedback, const size_t feedback_len, rohc_cid_t const cid, size_t const cid_len)
	Parse ROHC feedback CID. More...

static bool	rohc_comp_feedback_parse_opt_sn (const struct rohc_comp_ctxt const context, const uint8_t const feedback_data, const size_t feedback_data_len, uint32_t const sn_bits, size_t const sn_bits_nr)
	Parse the FEEDBACK-2 SN option. More...

static bool	rohc_comp_feedback_check_opts (const struct rohc_comp_ctxt *const context, const size_t opts_present[ROHC_FEEDBACK_OPT_MAX])
	Check FEEDBACK-2 options. More...

struct rohc_comp *	rohc_comp_new2 (const rohc_cid_type_t cid_type, const rohc_cid_t max_cid, const rohc_comp_random_cb_t rand_cb, void *const rand_priv)
	Create a new ROHC compressor. More...

void	rohc_comp_free (struct rohc_comp *const comp)
	Destroy the given ROHC compressor. More...

bool	rohc_comp_set_traces_cb2 (struct rohc_comp const comp, rohc_trace_callback2_t callback, void const priv_ctxt)
	Set the callback function used to manage traces in compressor. More...

rohc_status_t	rohc_compress4 (struct rohc_comp const comp, const struct rohc_buf uncomp_packet, struct rohc_buf const rohc_packet)
	Compress the given uncompressed packet into a ROHC packet. More...

rohc_status_t	rohc_comp_pad (struct rohc_comp const comp, struct rohc_buf const rohc_pkt, const size_t min_pkt_len)
	Pad the given ROHC compressed packet. More...

rohc_status_t	rohc_comp_get_segment2 (struct rohc_comp const comp, struct rohc_buf const segment)
	Get the next ROHC segment if any. More...

bool	rohc_comp_force_contexts_reinit (struct rohc_comp *const comp)
	Force the compressor to re-initialize all its contexts. More...

bool	rohc_comp_set_optimistic_approach (struct rohc_comp *const comp, const size_t repetitions_nr)
	Set the number of repetitions required to gain transmission confidence. More...

bool	rohc_comp_set_wlsb_window_width (struct rohc_comp *const comp, const size_t width)
	Set the window width for the W-LSB encoding scheme. More...

bool	rohc_comp_set_reorder_ratio (struct rohc_comp *const comp, const rohc_reordering_offset_t reorder_ratio)
	Set the reordering ratio for the W-LSB encoding scheme. More...

bool	rohc_comp_set_periodic_refreshes (struct rohc_comp *const comp, const size_t ir_timeout, const size_t fo_timeout)
	Set the timeouts in packets for IR and FO periodic refreshes. More...

bool	rohc_comp_set_periodic_refreshes_time (struct rohc_comp *const comp, const uint64_t ir_timeout, const uint64_t fo_timeout)
	Set the timeouts in ms for IR and FO periodic refreshes. More...

bool	rohc_comp_set_list_trans_nr (struct rohc_comp *const comp, const size_t list_trans_nr)
	Set the number of uncompressed transmissions for list compression. More...

bool	rohc_comp_set_rtp_detection_cb (struct rohc_comp const comp, rohc_rtp_detection_callback_t callback, void const rtp_private)
	Set the RTP detection callback function. More...

bool	rohc_comp_profile_enabled (const struct rohc_comp *const comp, const rohc_profile_t profile)
	Is the given compression profile enabled for a compressor? More...

bool	rohc_comp_enable_profile (struct rohc_comp *const comp, const rohc_profile_t profile)
	Enable a compression profile for a compressor. More...

bool	rohc_comp_disable_profile (struct rohc_comp *const comp, const rohc_profile_t profile)
	Disable a compression profile for a compressor. More...

bool	rohc_comp_enable_profiles (struct rohc_comp *const comp,...)
	Enable several compression profiles for a compressor. More...

bool	rohc_comp_disable_profiles (struct rohc_comp *const comp,...)
	Disable several compression profiles for a compressor. More...

bool	rohc_comp_set_mrru (struct rohc_comp *const comp, const size_t mrru)
	Set the Maximum Reconstructed Reception Unit (MRRU). More...

bool	rohc_comp_get_mrru (const struct rohc_comp const comp, size_t const mrru)
	Get the Maximum Reconstructed Reception Unit (MRRU). More...

bool	rohc_comp_get_max_cid (const struct rohc_comp const comp, size_t const max_cid)
	Get the maximal CID value the compressor uses. More...

bool	rohc_comp_get_cid_type (const struct rohc_comp const comp, rohc_cid_type_t const cid_type)
	Get the CID type that the compressor uses. More...

bool	rohc_comp_set_features (struct rohc_comp *const comp, const rohc_comp_features_t features)
	Enable/disable features for ROHC compressor. More...

bool	rohc_comp_deliver_feedback2 (struct rohc_comp *const comp, const struct rohc_buf feedback)
	Deliver a feedback packet to the compressor. More...

bool	rohc_comp_get_last_packet_info2 (const struct rohc_comp const comp, rohc_comp_last_packet_info2_t const info)
	Get some information about the last compressed packet. More...

bool	rohc_comp_get_general_info (const struct rohc_comp const comp, rohc_comp_general_info_t const info)
	Get some general information about the compressor. More...

const char *	rohc_comp_get_state_descr (const rohc_comp_state_t state)
	Give a description for the given ROHC compression context state. More...

void	rohc_comp_change_mode (struct rohc_comp_ctxt *const context, const rohc_mode_t new_mode)
	Change the mode of the context. More...

void	rohc_comp_change_state (struct rohc_comp_ctxt *const context, const rohc_comp_state_t new_state)
	Change the state of the context. More...

bool	rohc_comp_reinit_context (struct rohc_comp_ctxt *const context)
	Re-initialize the given context. More...

bool	rohc_comp_feedback_parse_opts (const struct rohc_comp_ctxt const context, const uint8_t const packet, const size_t packet_len, const uint8_t const feedback_data, const size_t feedback_data_len, size_t opts_present[ROHC_FEEDBACK_OPT_MAX], uint32_t const sn_bits, size_t *const sn_bits_nr, const rohc_feedback_crc_t crc_type, uint8_t crc_in_packet, size_t crc_pos_from_end)
	Parse FEEDBACK-2 options. More...

Variables
const struct rohc_comp_profile	c_rtp_profile
	Define the compression part of the RTP profile as described in the RFC 3095. More...

const struct rohc_comp_profile	c_udp_profile
	Define the compression part of the UDP profile as described in the RFC 3095. More...

const struct rohc_comp_profile	c_esp_profile
	Define the compression part of the ESP profile as described in the RFC 3095. More...

const struct rohc_comp_profile	c_tcp_profile
	Define the compression part of the TCP profile as described in the RFC 3095. More...

const struct rohc_comp_profile	c_ip_profile
	Define the compression part of the IP-only profile as described in the RFC 3843. More...

const struct rohc_comp_profile	c_uncompressed_profile
	Define the compression part of the Uncompressed profile as described in the RFC 3095. More...

const struct rohc_comp_profile	rohc_comp_rfc5225_ip_profile
	Define the compression part of the ROHCv2 IP-only profile as described in the RFC 5225. More...

const struct rohc_comp_profile	rohc_comp_rfc5225_ip_udp_profile
	Define the compression part of the ROHCv2 IP/UDP profile as described in the RFC 5225. More...

const struct rohc_comp_profile	rohc_comp_rfc5225_ip_esp_profile
	Define the compression part of the ROHCv2 IP/ESP profile as described in the RFC 5225. More...

const struct rohc_comp_profile	rohc_comp_rfc5225_ip_udp_rtp_profile
	Define the compression part of the ROHCv2 IP/UDP/RTP profile as described in the RFC 5225. More...

static const struct rohc_comp_profile *const	rohc_comp_profiles [ROHC_PROFILE_ID_MAJOR_MAX+1][ROHC_PROFILE_ID_MINOR_MAX+1]

Detailed Description

ROHC compression routines.

Author: Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org; David Moreau from TAS

Enumeration Type Documentation

◆ rohc_ctxt_affinity_t

enum rohc_ctxt_affinity_t

The affinity between packet and context

Enumerator
ROHC_AFFINITY_NONE
ROHC_AFFINITY_LOW
ROHC_AFFINITY_MED
ROHC_AFFINITY_HIGH

Function Documentation

◆ __rohc_comp_deliver_feedback()

static bool __rohc_comp_deliver_feedback	(	struct rohc_comp *const	comp,
		const uint8_t *const	packet,
		const size_t	size
	)

static

Deliver a feedback packet to the compressor.

When feedback is received by the decompressor, this function is called and delivers the feedback to the right profile/context of the compressor.

Parameters

comp	The ROHC compressor
packet	The feedback data
size	The length of the feedback packet

Returns: true if the feedback was successfully taken into account, false if the feedback could not be taken into account

◆ c_create_context()

static struct rohc_comp_ctxt * c_create_context	(	struct rohc_comp *const	comp,
		const struct rohc_comp_profile *const	profile,
		const struct rohc_fingerprint *const	fingerprint,
		const struct rohc_pkt_hdrs *const	pkt_hdrs,
		const struct rohc_ts	pkt_time
	)

static

Create a compression context.

Parameters

comp	The ROHC compressor
profile	The profile to associate the context with
fingerprint	The packet/context fingerprint
pkt_hdrs	The information collected about packet headers
pkt_time	The arrival time of the packet

Returns: The compression context if successful, NULL otherwise

◆ c_create_contexts()

static bool c_create_contexts ( struct rohc_comp *const comp )

static

Create the array of compression contexts.

Parameters

comp	The ROHC compressor

Returns: true if the creation is successful, false otherwise

◆ c_destroy_contexts()

static void c_destroy_contexts ( struct rohc_comp *const comp )

static

Destroy all the compression contexts in the context array.

The profile-specific contexts are also destroyed.

Parameters

comp	The ROHC compressor

◆ c_get_context()

static struct rohc_comp_ctxt * c_get_context	(	struct rohc_comp *const	comp,
		const rohc_cid_t	cid
	)

static

Find out a context given its CID.

Parameters

comp	The ROHC compressor
cid	The CID of the context to find

Returns: The context with the given CID if found, NULL otherwise

◆ rohc_comp_are_ip_hdrs_supported()

static bool rohc_comp_are_ip_hdrs_supported	(	const struct rohc_comp *const	comp,
		const uint8_t *const	packet,
		const size_t	packet_len,
		struct rohc_fingerprint *const	fingerprint,
		struct rohc_pkt_hdrs *const	pkt_hdrs,
		size_t *const	all_ip_hdrs_len,
		size_t *const	all_ipv6_exts_len
	)

static

Are the given IP headers supported?

Parameters

	comp	The ROHC compressor to compress the packet with
	packet	The packet to search the best compression profile for
	packet_len	The length (in bytes) of the uncompressed packet
[out]	fingerprint	The fingerprint computed on the packet to later help finding the best compression context
[out]	pkt_hdrs	The information collected about the packet headers, may be used later during the detection of changes with the compression context, thus avoiding another packet parsing
[out]	all_ip_hdrs_len	The length (in bytes) of the parsed IP headers
[out]	all_ipv6_exts_len	The length (in bytes) of the parsed IP extension headers

Returns: The ID of the best compression profile to compress the packet

◆ rohc_comp_change_mode()

void rohc_comp_change_mode	(	struct rohc_comp_ctxt *const	context,
		const rohc_mode_t	new_mode
	)

Change the mode of the context.

Parameters

context	The compression context
new_mode	The new mode the context must enter in

◆ rohc_comp_change_state()

void rohc_comp_change_state	(	struct rohc_comp_ctxt *const	context,
		const rohc_comp_state_t	new_state
	)

Change the state of the context.

Parameters

context	The compression context
new_state	The new state the context must enter in

◆ rohc_comp_decide_state()

static void rohc_comp_decide_state	(	struct rohc_comp_ctxt *const	context,
		struct rohc_ts	pkt_time
	)

static

Decide the state that should be used for the next packet.

The three states are:

Initialization and Refresh (IR),
First Order (FO),
Second Order (SO).

Parameters

context	The compression context
pkt_time	The time of packet arrival

◆ rohc_comp_feedback_check_opts()

static bool rohc_comp_feedback_check_opts	(	const struct rohc_comp_ctxt *const	context,
		const size_t	opts_present[ROHC_FEEDBACK_OPT_MAX]
	)

static

Check FEEDBACK-2 options.

sanity checks:

some profiles do not support all options
some options cannot be specified multiple times
some options cannot be specified without CRC

Parameters

context	The ROHC decompression context
opts_present	Whether options are present or not

Returns: true if feedback options are valid, false if feedback options are not valid

◆ rohc_comp_feedback_parse_cid()

static bool rohc_comp_feedback_parse_cid	(	const struct rohc_comp *const	comp,
		const uint8_t *const	feedback,
		const size_t	feedback_len,
		rohc_cid_t *const	cid,
		size_t *const	cid_len
	)

static

Parse ROHC feedback CID.

Parameters

	comp	The ROHC compressor
	feedback	The ROHC feedback data to parse
	feedback_len	The length of the ROHC feedback data
[out]	cid	The CID of the ROHC feedback
[out]	cid_len	The length of the CID of the ROHC feedback

Returns: true if feedback CID was successfully parsed, false if feedback CID is malformed

◆ rohc_comp_feedback_parse_opt_sn()

static bool rohc_comp_feedback_parse_opt_sn	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len,
		uint32_t *const	sn_bits,
		size_t *const	sn_bits_nr
	)

static

Parse the FEEDBACK-2 SN option.

Parameters

	context	The ROHC decompression context
	feedback_data	The feedback data without the CID bits
	feedback_data_len	The length of the feedback data without the CID bits
[out]	sn_bits	in: the SN bits collected in base header out: the SN bits collected in base header and options
[out]	sn_bits_nr	in: the number of SN bits collected in base header out: the number of SN bits collected in base header and options

Returns: true if feedback options were successfully parsed, false if feedback options were malformed or CRC is wrong

◆ rohc_comp_feedback_parse_opts()

bool rohc_comp_feedback_parse_opts	(	const struct rohc_comp_ctxt *const	context,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len,
		size_t	opts_present[ROHC_FEEDBACK_OPT_MAX],
		uint32_t *const	sn_bits,
		size_t *const	sn_bits_nr,
		const rohc_feedback_crc_t	crc_type,
		uint8_t	crc_in_packet,
		size_t	crc_pos_from_end
	)

Parse FEEDBACK-2 options.

Parameters

	context	The ROHC decompression context
	packet	The whole feedback packet with CID bits
	packet_len	The length of the whole feedback packet with CID bits
	feedback_data	The feedback data without the CID bits
	feedback_data_len	The length of the feedback data without the CID bits
[out]	opts_present	Whether options are present or not
[out]	sn_bits	in: the SN bits collected in base header out: the SN bits collected in base header and options
[out]	sn_bits_nr	in: the number of SN bits collected in base header out: the number of SN bits collected in base header and options
	crc_type	Whether the CRC is present in base header or in option
	crc_in_packet	The CRC of the feedback packet
	crc_pos_from_end	The position of the CRC byte from the end of the feedback packet

Returns: true if feedback options were successfully parsed, false if feedback options were malformed or CRC is wrong

◆ rohc_comp_find_ctxt()

static struct rohc_comp_ctxt * rohc_comp_find_ctxt	(	struct rohc_comp *const	comp,
		const struct rohc_comp_profile *const	profile,
		const struct rohc_buf *const	packet,
		const struct rohc_fingerprint *const	pkt_fingerprint,
		const struct rohc_pkt_hdrs *const	pkt_hdrs
	)

static

Find a compression context given an IP packet.

Parameters

comp	The ROHC compressor
profile	The profile to use
packet	The packet to find a compression context for
pkt_fingerprint	The packet fingerprint
pkt_hdrs	The information collected about packet headers

Returns: The context if found or successfully created, NULL if not found

◆ rohc_comp_get_ctxt_affinity()

static rohc_ctxt_affinity_t rohc_comp_get_ctxt_affinity	(	const struct rohc_comp_ctxt *const	ctxt,
		const struct rohc_fingerprint *const	pkt_fingerprint,
		const struct rohc_pkt_hdrs *const	pkt_hdrs
	)

static

Compute the affinity between the given packet and context.

Parameters

ctxt	The context to compute the affinity with
pkt_fingerprint	The fingerprint of the packet to compute the affinity with
pkt_hdrs	The information collected about packet headers

Returns: The affinity between the packet and context

◆ rohc_comp_get_profile()

static rohc_profile_t rohc_comp_get_profile	(	const struct rohc_comp *const	comp,
		const struct rohc_buf *const	packet,
		struct rohc_fingerprint *const	fingerprint,
		struct rohc_pkt_hdrs *const	pkt_hdrs
	)

static

Get the best compression profile for the given network packet.

Parameters

	comp	The ROHC compressor to compress the packet with
	packet	The packet to search the best compression profile for
[out]	fingerprint	The computed fingerprint of the packet to later help finding the best compression context
[out]	pkt_hdrs	The information collected about the packet headers, may be used later during the detection of changes with the compression context, thus avoiding another packet parsing

Returns: The ID of the best compression profile to compress the packet

◆ rohc_comp_get_profile_l4()

static rohc_profile_t rohc_comp_get_profile_l4	(	const struct rohc_comp *const	comp,
		const struct rohc_buf *const	packet,
		const rohc_profile_t	l3_profile,
		const size_t	all_ipv6_exts_len,
		const uint8_t	l4_proto,
		const uint8_t *const	l4_data,
		const size_t	l4_len,
		struct rohc_fingerprint *const	fingerprint,
		struct rohc_pkt_hdrs *const	pkt_hdrs
	)

static

Get the best compression profile for the given network packet.

Parameters

	comp	The ROHC compressor to compress the packet with
	packet	The packet to search the best compression profile for
	l3_profile	The best ROHC profile identified for layer-3 headers
	all_ipv6_exts_len	The length of the IPv6 extension headers
	l4_proto	The IP protocol type of the layer-4 header
	l4_data	The layer-4 header to search the best profile for
	l4_len	The length of the layer-4 header
[out]	fingerprint	The computed fingerprint of the packet to later help finding the best compression context
[out]	pkt_hdrs	The information collected about the packet headers, may be used later during the detection of changes with the compression context, thus avoiding another packet parsing

Returns: The ID of the best compression profile to compress the packet

◆ rohc_comp_is_rtp_hdr_supported()

static bool rohc_comp_is_rtp_hdr_supported	(	const struct rohc_comp *const	comp,
		const uint8_t *const	packet,
		const size_t	packet_len,
		struct rohc_pkt_hdrs *const	pkt_hdrs
	)

static

Is the given RTP header supported?

Parameters

	comp	The ROHC compressor to compress the packet with
	packet	The uncompressed packet to search the best compression profile for
	packet_len	The length (in bytes) of the uncompressed packet
[out]	pkt_hdrs	The information collected about the packet headers, may be used later during the detection of changes with the compression context, thus avoiding another packet parsing

Returns: The ID of the best compression profile to compress the packet

◆ rohc_comp_is_tcp_hdr_supported()

static bool rohc_comp_is_tcp_hdr_supported	(	const struct rohc_comp *const	comp,
		const uint8_t *const	packet,
		const size_t	packet_len,
		struct rohc_pkt_hdrs *const	pkt_hdrs,
		size_t *const	tcp_hdr_full_len
	)

static

Is the given TCP header supported?

Parameters

	comp	The ROHC compressor to compress the packet with
	packet	The TCP packet to search the best compression profile for
	packet_len	The length (in bytes) of the uncompressed packet
[out]	pkt_hdrs	The information collected about the packet headers, may be used later during the detection of changes with the compression context, thus avoiding another packet parsing
[out]	tcp_hdr_full_len	The length of the TCP header including options

Returns: The ID of the best compression profile to compress the packet

◆ rohc_comp_periodic_down_transition()

static void rohc_comp_periodic_down_transition	(	struct rohc_comp_ctxt *const	context,
		const struct rohc_ts	pkt_time
	)

static

Periodically change the context state after a certain number of packets.

Parameters

context	The compression context
pkt_time	The time of packet arrival

◆ rohc_comp_profile_enabled_nocheck()

static bool rohc_comp_profile_enabled_nocheck	(	const struct rohc_comp *const	comp,
		const rohc_profile_t	profile
	)

static

Is the given compression profile enabled for a compressor?

Parameters

comp	The ROHC compressor, shall be valid
profile	The profile to ask status for

Returns

Possible return values:

true if the profile exists and is enabled,
false if the profile does not exist,
false if the profile is disabled

See also: rohc_comp_profile_enabled

◆ rohc_comp_reinit_context()

bool rohc_comp_reinit_context ( struct rohc_comp_ctxt *const context )

Re-initialize the given context.

Make the context restart its initialization with decompressor, ie. it goes in the lowest compression state.

Parameters

context The compression context to re-initialize

Returns: true in case of success, false otherwise

Variable Documentation

◆ c_esp_profile

const struct rohc_comp_profile c_esp_profile

Define the compression part of the ESP profile as described in the RFC 3095.

◆ c_ip_profile

const struct rohc_comp_profile c_ip_profile

Define the compression part of the IP-only profile as described in the RFC 3843.

◆ c_rtp_profile

const struct rohc_comp_profile c_rtp_profile

Define the compression part of the RTP profile as described in the RFC 3095.

◆ c_tcp_profile

const struct rohc_comp_profile c_tcp_profile

Define the compression part of the TCP profile as described in the RFC 3095.

◆ c_udp_profile

const struct rohc_comp_profile c_udp_profile

Define the compression part of the UDP profile as described in the RFC 3095.

◆ c_uncompressed_profile

const struct rohc_comp_profile c_uncompressed_profile

Define the compression part of the Uncompressed profile as described in the RFC 3095.

◆ rohc_comp_profiles

const struct rohc_comp_profile* const rohc_comp_profiles[ROHC_PROFILE_ID_MAJOR_MAX+1][ROHC_PROFILE_ID_MINOR_MAX+1]

static

Initial value:

=
{
        [0] = {
                [0] = &c_uncompressed_profile,
                [1] = &c_rtp_profile,
                [2] = &c_udp_profile,
                [3] = &c_esp_profile,
                [4] = &c_ip_profile,
                [5] = NULL,
                [6] = &c_tcp_profile,
                [7] = NULL,
                [8] = NULL,
        },
        [1] = {
                [0] = NULL,
                [1] = &rohc_comp_rfc5225_ip_udp_rtp_profile,
                [2] = &rohc_comp_rfc5225_ip_udp_profile,
                [3] = &rohc_comp_rfc5225_ip_esp_profile,
                [4] = &rohc_comp_rfc5225_ip_profile,
                [5] = NULL,
                [6] = NULL,
                [7] = NULL,
                [8] = NULL,
        },
}

The ROHC compression profiles

◆ rohc_comp_rfc5225_ip_esp_profile

const struct rohc_comp_profile rohc_comp_rfc5225_ip_esp_profile

Define the compression part of the ROHCv2 IP/ESP profile as described in the RFC 5225.

◆ rohc_comp_rfc5225_ip_profile

const struct rohc_comp_profile rohc_comp_rfc5225_ip_profile

Define the compression part of the ROHCv2 IP-only profile as described in the RFC 5225.

◆ rohc_comp_rfc5225_ip_udp_profile

const struct rohc_comp_profile rohc_comp_rfc5225_ip_udp_profile

Define the compression part of the ROHCv2 IP/UDP profile as described in the RFC 5225.

◆ rohc_comp_rfc5225_ip_udp_rtp_profile

const struct rohc_comp_profile rohc_comp_rfc5225_ip_udp_rtp_profile

Define the compression part of the ROHCv2 IP/UDP/RTP profile as described in the RFC 5225.

Enumerations

Functions

Variables

Detailed Description

Enumeration Type Documentation

◆ rohc_ctxt_affinity_t

Function Documentation

◆ __rohc_comp_deliver_feedback()

◆ c_create_context()

◆ c_create_contexts()

◆ c_destroy_contexts()

◆ c_get_context()

◆ rohc_comp_are_ip_hdrs_supported()

◆ rohc_comp_change_mode()

◆ rohc_comp_change_state()

◆ rohc_comp_decide_state()

◆ rohc_comp_feedback_check_opts()

◆ rohc_comp_feedback_parse_cid()

◆ rohc_comp_feedback_parse_opt_sn()

◆ rohc_comp_feedback_parse_opts()

◆ rohc_comp_find_ctxt()

◆ rohc_comp_get_ctxt_affinity()

◆ rohc_comp_get_profile()

◆ rohc_comp_get_profile_l4()

◆ rohc_comp_is_rtp_hdr_supported()

◆ rohc_comp_is_tcp_hdr_supported()

◆ rohc_comp_periodic_down_transition()

◆ rohc_comp_profile_enabled_nocheck()

◆ rohc_comp_reinit_context()

Variable Documentation

◆ c_esp_profile

◆ c_ip_profile

◆ c_rtp_profile

◆ c_tcp_profile

◆ c_udp_profile

◆ c_uncompressed_profile

◆ rohc_comp_profiles

◆ rohc_comp_rfc5225_ip_esp_profile

◆ rohc_comp_rfc5225_ip_profile

◆ rohc_comp_rfc5225_ip_udp_profile

◆ rohc_comp_rfc5225_ip_udp_rtp_profile
