Generic framework for RFC3095-based compression profiles such as IP-only, UDP, UDP-Lite, ESP, and RTP profiles. More...

#include "rohc_comp_internals.h"
#include "rohc_packets.h"
#include "protocols/uncomp_pkt_hdrs.h"
#include "schemes/comp_list.h"
#include "ip.h"
#include "crc.h"
#include <stdlib.h>

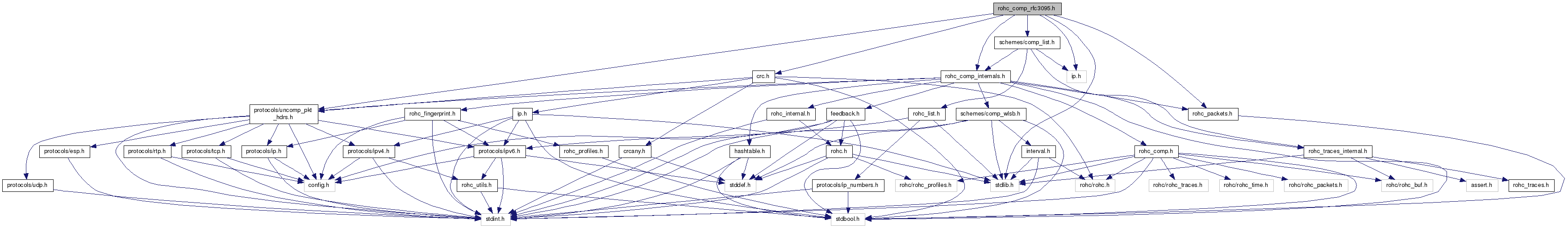

Include dependency graph for rohc_comp_rfc3095.h:

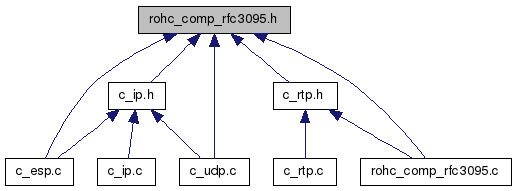

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ipv4_header_info
	Store information about an IPv4 header between the different compressions of IP packets. More...

struct	ipv6_header_info
	Store information about an IPv6 header between the different compressions of IP packets. More...

struct	ip_header_info
	Store information about an IP (IPv4 or IPv6) header between the different compressions of IP packets. More...

struct	rfc3095_ip_hdr_changes

struct	generic_tmp_vars
	Structure that contains variables that are used during one single compression of packet. More...

struct	rohc_comp_rfc3095_ctxt
	The generic decompression context for RFC3095-based profiles. More...

Functions
bool	rohc_comp_rfc3095_create (struct rohc_comp_ctxt const context, const struct rohc_pkt_hdrs const uncomp_pkt_hdrs)
	Create a new context and initialize it thanks to the given IP packet. More...

void	rohc_comp_rfc3095_destroy (struct rohc_comp_ctxt *const context)
	Destroy the context. More...

rohc_ext_t	decide_extension (const struct rohc_comp_ctxt *const context, const rohc_packet_t packet_type)
	Decide what extension shall be used in the UO-1-ID/UOR-2 packet. More...

int	rohc_comp_rfc3095_encode (struct rohc_comp_ctxt const context, const struct rohc_pkt_hdrs const uncomp_pkt_hdrs, uint8_t const rohc_pkt, const size_t rohc_pkt_max_len, rohc_packet_t const packet_type)
	Encode an IP packet according to a pattern decided by several different factors. More...

bool	rohc_comp_rfc3095_feedback (struct rohc_comp_ctxt const context, const enum rohc_feedback_type feedback_type, const uint8_t const packet, const size_t packet_len, const uint8_t *const feedback_data, const size_t feedback_data_len)
	Update the profile when feedback is received. More...

void	rohc_get_ipid_bits (const struct rohc_comp_ctxt const context, bool const innermost_ip_id_changed, bool const innermost_ip_id_3bits_possible, bool const innermost_ip_id_5bits_possible, bool const innermost_ip_id_8bits_possible, bool const innermost_ip_id_11bits_possible, bool const outermost_ip_id_changed, bool const outermost_ip_id_11bits_possible)
	Get the number of non-random outer/inner IP-ID bits. More...

static size_t	get_nr_ipv4_non_rnd (const struct rohc_comp_rfc3095_ctxt *const ctxt)
	How many IP headers are IPv4 headers with non-random IP-IDs ? More...

static size_t	get_nr_ipv4_non_rnd_with_bits (const struct rohc_comp_rfc3095_ctxt *const ctxt)
	How many IP headers are IPv4 headers with non-random IP-IDs and some bits to transmit ? More...

static bool	does_at_least_one_sid_change (const struct rohc_comp_rfc3095_ctxt *const ctxt, const uint8_t oa_repetitions_nr)
	at least one SID flag changed now or in the last few packets? More...

static bool	does_at_least_one_rnd_change (const struct rohc_comp_rfc3095_ctxt *const ctxt, const uint8_t oa_repetitions_nr)
	at least one RND flag changed now or in the last few packets? More...

Detailed Description

Generic framework for RFC3095-based compression profiles such as IP-only, UDP, UDP-Lite, ESP, and RTP profiles.

Author: Didier Barvaux didie.nosp@m.r.ba.nosp@m.rvaux.nosp@m.@tou.nosp@m.louse.nosp@m..viv.nosp@m.eris..nosp@m.com; Didier Barvaux didie.nosp@m.r@ba.nosp@m.rvaux.nosp@m..org

Function Documentation

◆ decide_extension()

rohc_ext_t decide_extension	(	const struct rohc_comp_ctxt *const	context,
		const rohc_packet_t	packet_type
	)

Decide what extension shall be used in the UO-1-ID/UOR-2 packet.

Extensions 0, 1 & 2 are IPv4 only because of the IP-ID.

Parameters

context	The compression context
packet_type	The type of ROHC packet that is created

Returns: The extension code among ROHC_EXT_NONE, ROHC_EXT_0, ROHC_EXT_1 and ROHC_EXT_3 if successful, ROHC_EXT_UNKNOWN otherwise

◆ does_at_least_one_rnd_change()

static bool does_at_least_one_rnd_change	(	const struct rohc_comp_rfc3095_ctxt *const	ctxt,
		const uint8_t	oa_repetitions_nr
	)

inlinestatic

at least one RND flag changed now or in the last few packets?

Parameters

ctxt	The generic compression context
oa_repetitions_nr	The number of Optimistic Approach repetitions

Returns: true if at least one RND flag changed now or in last few packets, false otherwise

◆ does_at_least_one_sid_change()

static bool does_at_least_one_sid_change	(	const struct rohc_comp_rfc3095_ctxt *const	ctxt,
		const uint8_t	oa_repetitions_nr
	)

inlinestatic

at least one SID flag changed now or in the last few packets?

Parameters

ctxt	The generic compression context
oa_repetitions_nr	The number of Optimistic Approach repetitions

Returns: true if at least one SID flag changed now or in last few packets, false otherwise

◆ get_nr_ipv4_non_rnd()

static size_t get_nr_ipv4_non_rnd ( const struct rohc_comp_rfc3095_ctxt *const ctxt )

inlinestatic

How many IP headers are IPv4 headers with non-random IP-IDs ?

Parameters

ctxt	The generic decompression context

Returns: The number of IPv4 headers with non-random IP-ID fields

◆ get_nr_ipv4_non_rnd_with_bits()

static size_t get_nr_ipv4_non_rnd_with_bits ( const struct rohc_comp_rfc3095_ctxt *const ctxt )

inlinestatic

How many IP headers are IPv4 headers with non-random IP-IDs and some bits to transmit ?

Parameters

ctxt	The generic compression context

Returns: The number of IPv4 headers with non-random IP-ID fields and some bits to transmit

◆ rohc_comp_rfc3095_create()

bool rohc_comp_rfc3095_create	(	struct rohc_comp_ctxt *const	context,
		const struct rohc_pkt_hdrs *const	uncomp_pkt_hdrs
	)

Create a new context and initialize it thanks to the given IP packet.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to initialize the new context

Returns: true if successful, false otherwise

◆ rohc_comp_rfc3095_destroy()

void rohc_comp_rfc3095_destroy ( struct rohc_comp_ctxt *const context )

Destroy the context.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context The compression context

◆ rohc_comp_rfc3095_encode()

int rohc_comp_rfc3095_encode	(	struct rohc_comp_ctxt *const	context,
		const struct rohc_pkt_hdrs *const	uncomp_pkt_hdrs,
		uint8_t *const	rohc_pkt,
		const size_t	rohc_pkt_max_len,
		rohc_packet_t *const	packet_type
	)

Encode an IP packet according to a pattern decided by several different factors.

parse uncompressed packet (done in rohc_compress4)
detect changes between the new uncompressed packet and the context
decide new compressor state
determine how many bytes are required for every field
decide which packet to send
code the ROHC header
copy the packet payload (done in rohc_compress4)
update the context with the new headers

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
uncomp_pkt_hdrs	The uncompressed headers to encode
rohc_pkt	OUT: The ROHC packet
rohc_pkt_max_len	The maximum length of the ROHC packet
packet_type	OUT: The type of ROHC packet that is created

Returns: The length of the ROHC packet if successful, -1 otherwise

◆ rohc_comp_rfc3095_feedback()

bool rohc_comp_rfc3095_feedback	(	struct rohc_comp_ctxt *const	context,
		const enum rohc_feedback_type	feedback_type,
		const uint8_t *const	packet,
		const size_t	packet_len,
		const uint8_t *const	feedback_data,
		const size_t	feedback_data_len
	)

Update the profile when feedback is received.

This function is one of the functions that must exist in one profile for the framework to work.

Parameters

context	The compression context
feedback_type	The feedback type
packet	The whole feedback packet with CID bits
packet_len	The length of the whole feedback packet with CID bits
feedback_data	The feedback data without the CID bits
feedback_data_len	The length of the feedback data without the CID bits

Returns: true if the feedback was successfully handled, false if the feedback could not be taken into account

◆ rohc_get_ipid_bits()

void rohc_get_ipid_bits	(	const struct rohc_comp_ctxt *const	context,
		bool *const	innermost_ip_id_changed,
		bool *const	innermost_ip_id_3bits_possible,
		bool *const	innermost_ip_id_5bits_possible,
		bool *const	innermost_ip_id_8bits_possible,
		bool *const	innermost_ip_id_11bits_possible,
		bool *const	outermost_ip_id_changed,
		bool *const	outermost_ip_id_11bits_possible
	)

Get the number of non-random outer/inner IP-ID bits.

Parameters

	context	The compression context
[out]	innermost_ip_id_changed	Whether the innermost IP-ID changed
[out]	innermost_ip_id_3bits_possible	Whether the innermost IP-ID may be encoded on 3 bits
[out]	innermost_ip_id_5bits_possible	Whether the innermost IP-ID may be encoded on 5 bits
[out]	innermost_ip_id_8bits_possible	Whether the innermost IP-ID may be encoded on 8 bits
[out]	innermost_ip_id_11bits_possible	Whether the innermost IP-ID may be encoded on 11 bits
[out]	outermost_ip_id_changed	Whether the outermost IP-ID changed
[out]	outermost_ip_id_11bits_possible	Whether the outermost IP-ID may be encoded on 11 bits
